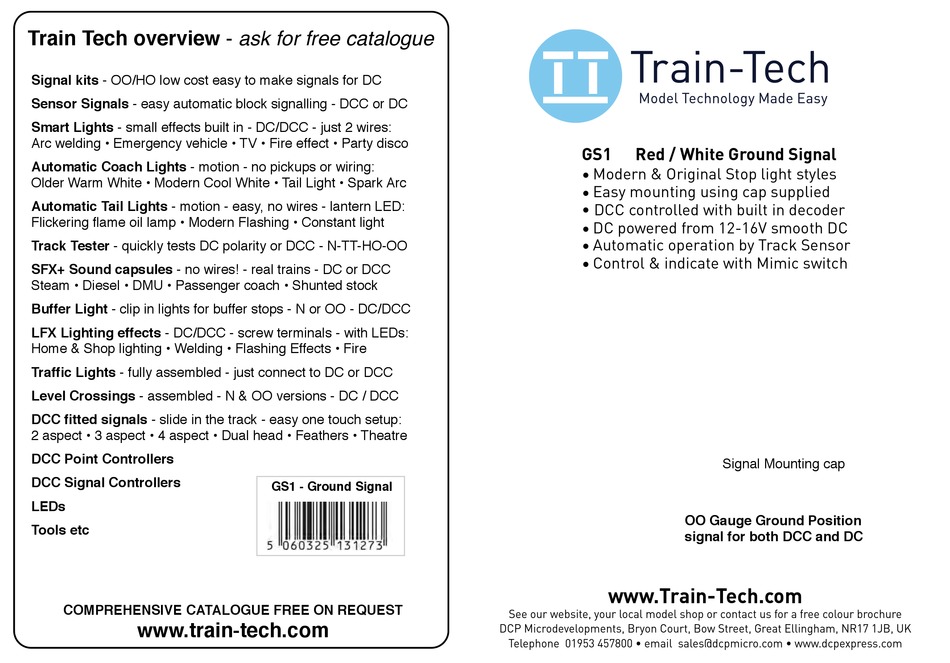

Train Tech overview - ask for free catalogue
Signal kits - OO/HO low cost easy to make signals for DC
Sensor Signals - easy automatic block signalling - DCC or DC
Smart Lights - small effects built in - DC/DCC - just 2 wires:
Arc welding • Emergency vehicle • TV • Fire effect • Party disco
Automatic Coach Lights - motion - no pickups or wiring:
Older Warm White • Modern Cool White • Tail Light • Spark Arc
Automatic Tail Lights - motion - easy, no wires - lantern LED:
Flickering flame oil lamp • Modern Flashing • Constant light
Track Tester - quickly tests DC polarity or DCC - N-TT-HO-OO
SFX+ Sound capsules - no wires! - real trains - DC or DCC
Steam • Diesel • DMU • Passenger coach • Shunted stock
Buffer Light - clip in lights for buffer stops - N or OO - DC/DCC
LFX Lighting effects - DC/DCC - screw terminals - with LEDs:
Home & Shop lighting • Welding • Flashing Effects • Fire
Traffic Lights - fully assembled - just connect to DC or DCC
Level Crossings - assembled - N & OO versions - DC / DCC
DCC fitted signals - slide in the track - easy one touch setup:
2 aspect • 3 aspect • 4 aspect • Dual head • Feathers • Theatre
DCC Point Controllers
DCC Signal Controllers
LEDs
Tools etc
COMPREHENSIVE CATALOGUE FREE ON REQUEST
www.train-tech.com

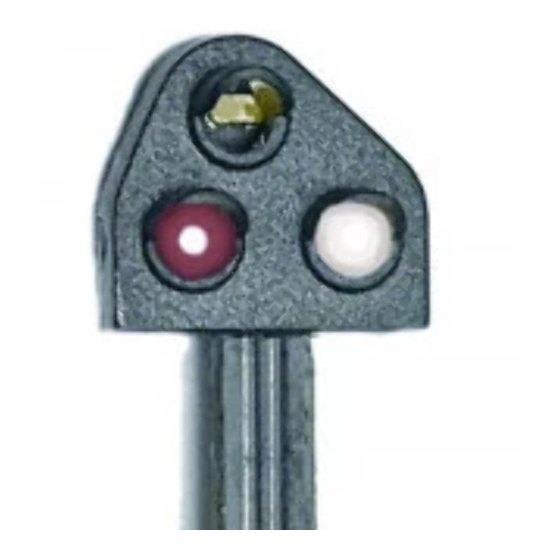

GS1 - Ground Signal
GS1
Red / White Ground Signal
• Modern & Original Stop light styles
• Easy mounting using cap supplied
• DCC controlled with built in decoder
• DC powered from 12-16V smooth DC
• Automatic operation by Track Sensor
• Control & indicate with Mimic switch
www.Train-Tech.com
See our website, your local model shop or contact us for a free colour brochure
DCP Microdevelopments, Bryon Court, Bow Street, Great Ellingham, NR17 1JB, UK
Telephone 01953 457800 • email sales@dcpmicro.com • www.dcpexpress.com
Signal Mounting cap
OO Gauge Ground Position
signal for both DCC and DC
Advertisement
Related Manuals for Train-Tech GS1
Summary of Contents for Train-Tech GS1
- Page 1 2 aspect • 3 aspect • 4 aspect • Dual head • Feathers • Theatre DCC Point Controllers Signal Mounting cap DCC Signal Controllers GS1 - Ground Signal LEDs OO Gauge Ground Position Tools etc signal for both DCC and DC www.Train-Tech.com...
- Page 2 • Flickering lights when powered from DC? Check that the DC is really smooth DC and not rough from a crudely rectified AC. Train-Tech offer a low cost capacitor smoothing unit to convert rough DC to smooth DC called SM1 and also Gaugemaster make a good quality 12V regulated and smooth mains power unit ideal for model railway electronics, part No WM4.
- Page 3 • Installing the Ground Signal Firstly, before fitting or connecting your Ground Signal SWITCH OFF ALL POWER! The Ground signal has sensitive electronics which may be permanently damaged if stray wires touch components or connections. Please note that the circuitry under the signal head will run slightly warm - this is normal.
- Page 4 P on the signal. Setup is easy using Train-Tech One Touch DCC; Just choose an accessory address on your controller or PC, press the Learn button on the Crossing and finally send a direction or 1 or 2 command from your controller to set it up (commands vary between controllers - see instructions).
- Page 5 You can reverse the polarity in several ways, but most conveniently using a DPDT (double pole double throw) switch, such as the toggle switch in Train-Tech pack TS1. We recommend connections are made using solid single core wire (bell wire) which simply plugs into the sockets (not stranded wire as stray whiskers of wire can short to other components.).
- Page 6 As well as being controlled by Track Sensor, DC or DCC, your Ground signal can also be controlled by a Train-Tech Mimic Switch. The Mimic Switch is connected to the signal using a single wire and should be powered from the same power supply which can be DC or DCC. For details of how to connect DC or DCC power and to set up the signal style see the relevant page in this manual.
- Page 7 • Automatic control using a Single Track Sensor As well as controlling the Ground Signal manually by a switch or DCC you can also control it automatically using a Track Sensor, so that when a Train approaches the signal changes to show proceed until the train has passed, then after 7 seconds changes back (see the following page to see how to connect an additional track sensor to change the signal back instead of time).
- Page 8 • Automatic control using Two Track Sensors The previous page shows how a Track Sensor can be fitted to change the signal to proceed as the train goes past it, then after fixed time the signal will go back to stop. Instead of the signal changing back a certain amount of time after the train has passed, you can add another Sensor to only change it back when the train passes the second Track Sensor.
