Train-Tech CL2 Fitting Instructions

CL2 Coach Lighting Strip: Traditional warm white lighting
Easy fit automatic lighting for OO/HO coaches & multiple units
Senses movement and turns the lights on & off automatically
Train-Tech - Designed and made in Gt Britain
COACH
LIGHTING
• Lights most coaches
• Easy and quick to fit
• No wires or pickups
• Lights automatically
√√
√√
√√
√√
√√
Fitting instructions

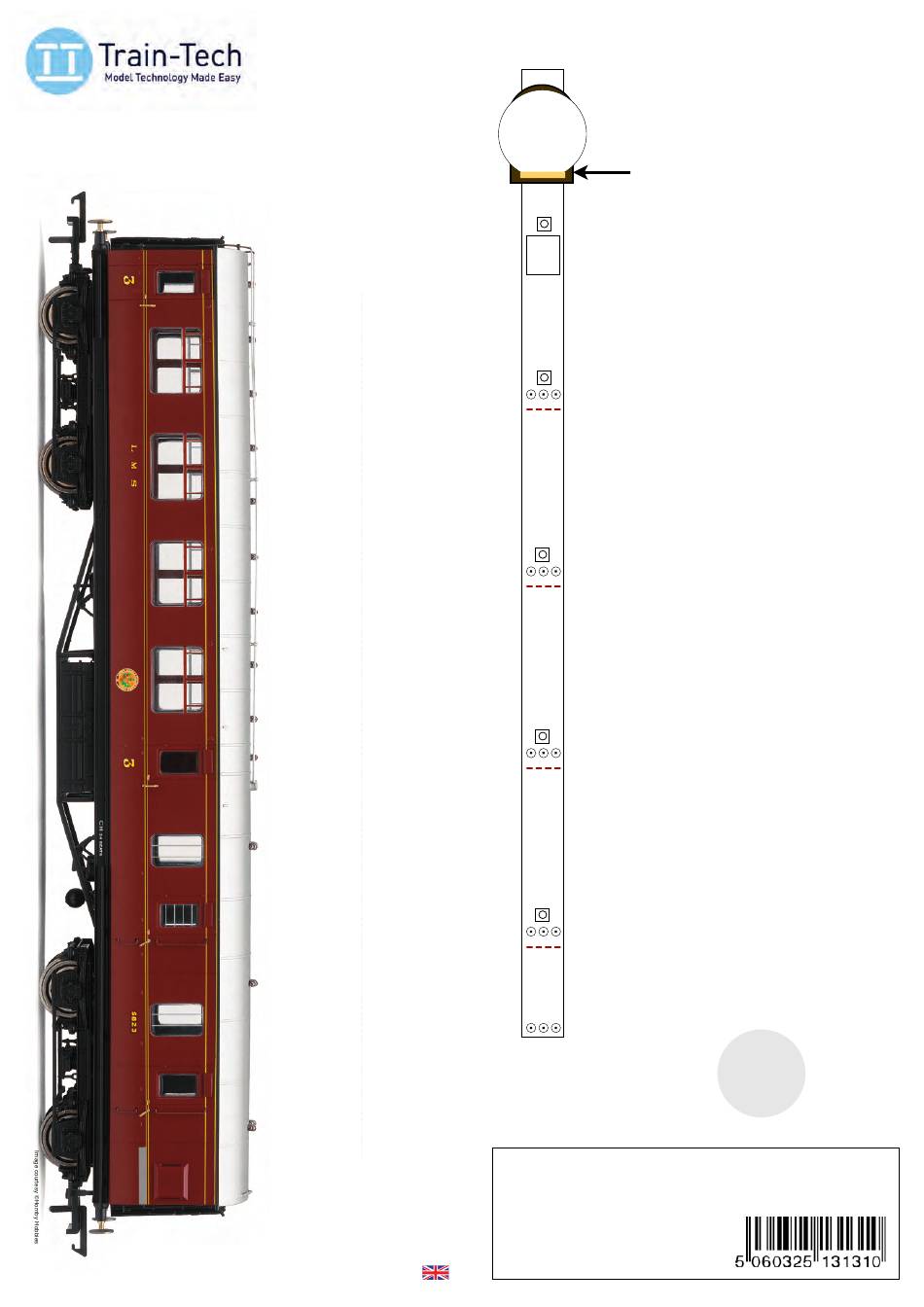

Setting up - Fitting the battery
Slide battery (
contact first, then push down.
CR2032
Once the battery is fitted the LED's
+
should light - the slightest movement
automatically switches them on.
LED
1 Remove the roof from your coach
Tip - Sometimes the roof and body are
Sensor
& main
all one piece and unclip/unscrew from
circuitry
area
the chassis or the roof comes off on its
own. Model shops and manufacturers
can also offer advice.
2 Fit the lighting strip into the roof
LED
Use Blutack or sticky pads to hold it in
place if required (if model has a metal
roof, insulate first using tape).
3 Refit the roof
You have completed installation!
Lights will switch off automatically
LED
four minutes after the last movement.
i Additional information
Battery When lights become dim or
LED intermittent replace with a standard
CR2032, available from many retailers
and Train-Tech dealers as part BAT1.
Lighting strips may be shortened as
the red dashes show - details overleaf
Other coach lighting strips
Versions with cool or warm white LEDs
plus an extra effect like flashing tail or
flickering flame tail light, electric
LED
spark effects & auto amber door lights
Ask for a free Train-Tech brochure!
Standard CR2032 Battery included
DCP Microdevelopments Limited
Bryon Court, Bow Street,
Great Ellingham
Norfolk, NR17 1JB, Great Britain
Tel: 01953 457800
email: sales@dcpmicro.com
DCP www.dcpexpress.com
Train-Tech website www.train-tech.com
+
side up) in under gold
CL2 Warm White
Coach Lighting strip
