Attop A8 Operation Manual

A8 Operation Manual
(Suitable for operation in calm and light winds)
Suitable for 14 years old and above
Get Assistance & Extended Warranty
Use camera or QR scanner to scan
Or Visit: https://attop.afterservice.vip
www.attoptoys.com
Customer Service Email : attop@afterservice.vip
3.Install
(1) Landing Gears Installing
Install landing gears to specified position
(2) Propeller Guards Installing
Install propeller guards to specified position
(3) Battery Installing
Propeller# B
Propeller# A
1 Insert the battery into specified
position.
2
Connect the battery with drone.
Remote Controller
Propeller# A
AAA 1.5V
AAA 1.5V
AAA 1.5V
Battery Case
Propeller# B
Keep pressing the buckle of battery
case then pull the case to take it out,
insert 3xAAA battery into specified
position.
2

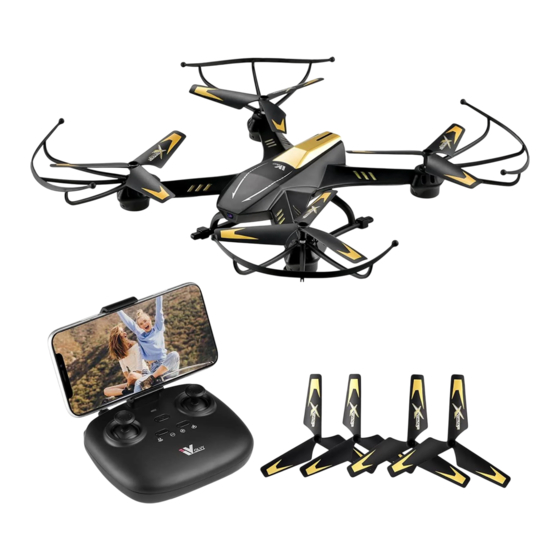

1. Package Contents
Drone X1 Remote X1
USB cable X1 Propeller guards X4
2.Charging
3
1
5V
Low battery warning
When the drone is flying, the indicator lights on the drone are flashing, and the remote
control handle emits a "beep" alarm sound, indicating that the drone power is too low.
At this time, the drone needs to return and charge.
Charging Guide for battery
1. Connect the USB cable with power supply, the USB LED solid on, indicate the
USB cable is power on.
2. Connect the battery with USB cable. When USB LED light is off, the battery is
charging. When USB LED light is on, the battery is fully charged.
Note： Use an power supply with standard output voltage 5V and current greater than
or equal to 2A, otherwise there is a risk of overloading the USB cable and Battery.
The flight time is about 10 minutes and the charging time is about 120 minutes.
(4) Phone clamp installing
Put the phone clamp to specified position on the remote, and make sure
to fasten the phone clamp.
4. Remote Controller
（2）
（4）
（6）
（8）
(1) Power switch
(2) Left joystick
(Altitude Control, L/R turning)
(3) Right joystick
(Movement Control)
(4) Left function switch
(Take off/Landing, Emergency stop)
Phone clamp X1 Battery X2
Spare propellers X2
Screwdriver X1
2
1
（1）
（3）
（5）
（7）
（9）
(5) Right function switch
(Headless mode, Return)
(6) Take photo
(7) Video
(8) Speed switch
(9) 360° Stunt
3
