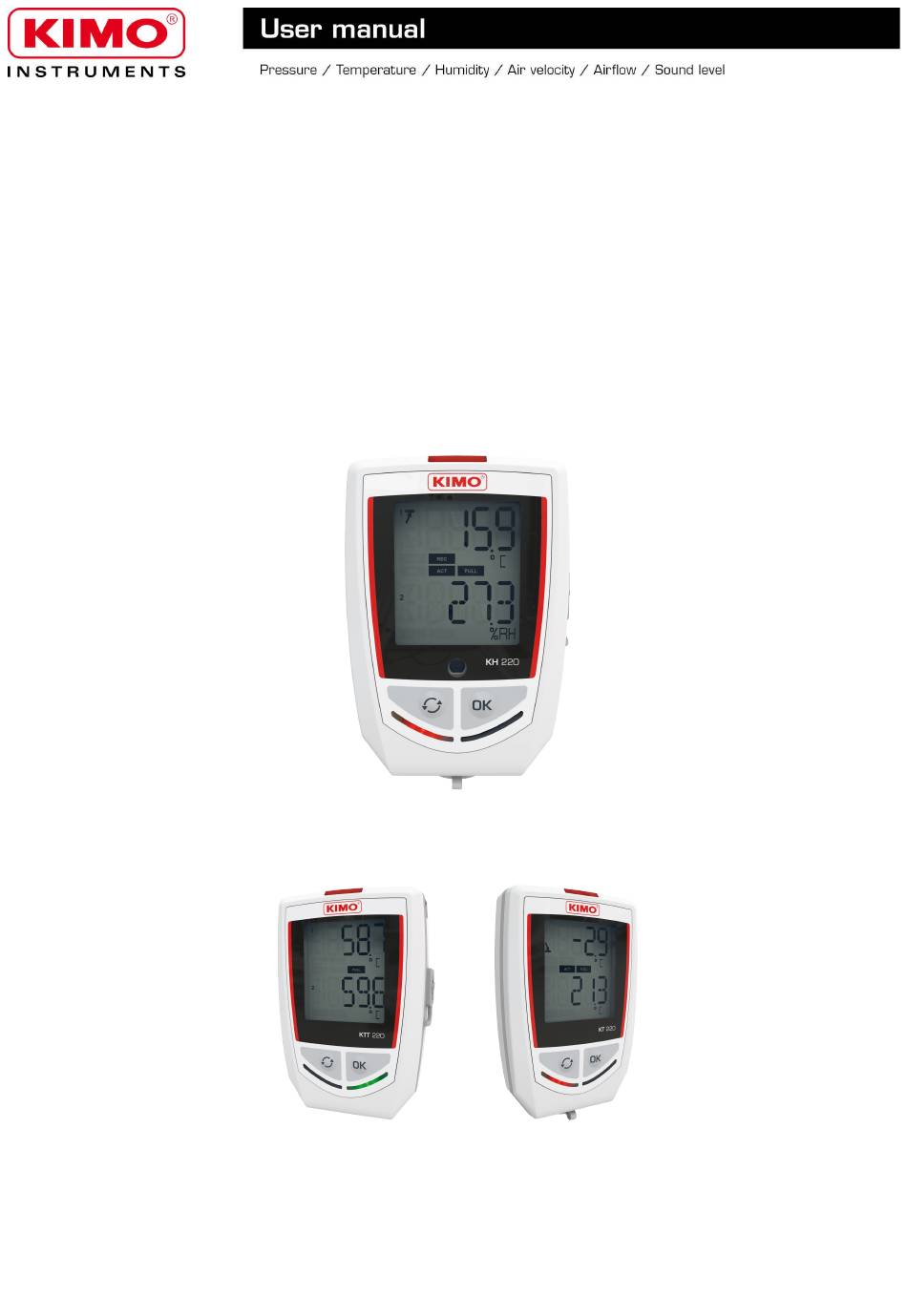

- Page 1 Class 220 KISTOCK KT 220, KH 220 and KTT 220...
-
Page 3: Table Of Contents
Table of contents 1 Safety instructions..........................4 1.1 Precautions for use........................4 1.2 Symbols used..........................4 2 Presentation of the device........................5 2.1 Use..............................5 2.2 Applications...........................5 2.3 References............................5 2.4 Description of the device.......................5 2.5 Description of keys........................6 2.6 Description of LEDs........................6 2.7 Connections..........................6 2.8 Mounting............................6 3 Technical features..........................7 3.1 Technical features of the devices....................7 3.2 Features of the housing........................8... -
Page 4: Safety Instructions
1.1 Precautions for use Please always use the device in accordance with its intended use and within parameters described in the technical features in order not to compromise the protection ensured by the device. 1.2 Symbols used For your safety and in order to avoid any damage of the device, please follow the procedure described in this user manual and read carefully the notes preceded by the following symbol: The following symbol will also be used in this user manual: Please read carefully the information notes indicated after this symbol. -
Page 5: Presentation Of The Device

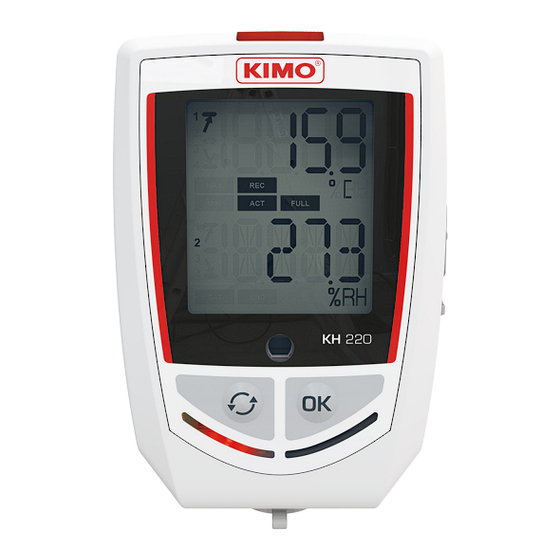

2.1 Use The class 220 KISTOCK dataloggers allow the measurement of several parameters: KT 220: internal measurement of temperature and one external universal input for probe • KH 220: internal measurement of temperature, humidity and light and one external universal input for probe •... -
Page 6: Description Of Keys
2.6 Description of LEDs Operating LED Alarm LED 2.7 Connections The communication between the device and the computer is carried out via an USB cable and with the female micro-USB connector. KT 220 / KH 220 KTT 220 Micro-USB Micro-USB connector connector... -
Page 7: Technical Features
3.1 Technical features of the devices KT 220 KH 220 KTT 220 °C, °F, °Ctd, °Ftd,%RH, °C, °F, °Ctd, °Ftd,%RH, lux, fc, mV, V, Units displayed °C, °F mV, V, mA, A, bar mA, A, bar 0.1°C, 0.1°F, 0.1°C, 0.1°F, 0.1%RH, 1 lux, 0.1 fc, 1 mV, Resolution 0.1%RH, 1 mV, 0.001 V,... -
Page 8: Features Of The Housing
2 indication LEDs (red and green) 1 OK key Control 1 Selection key Compatible with food industry environment Material ABS housing IP 65: KT 220 Protection IP 54: KTT 220* IP 40: KH 220 Female micro-USB connector PC communication USB cable Battery power supply 1 AA lithium 3.6 V battery... -
Page 9: Optional Probes And Cables
3.3 Optional probes and cables Reference Description Measuring range Temperature and humidity probe KTHA Interchangeable hygrometry and ambient temperature probe Hygrometry: from 0 to 100%RH KTHD Remote interchangeable hygrometry and temperature probe Temperature: from -20 to +70°C NTC Temperature probe KSI-50 / KSI-150 IP65 immersion probe From -40 to +120°C... -
Page 10: Dimensions (In Mm)
3.4 Dimensions (in mm) 3.4.1 Devices KTT 220 KH 220 KT 220 3.4.2 Wall mount 3.5 Guarantee period KISTOCK dataloggers have 1-year guarantee for any manufacturing defect (return to our After-sales service required). Technical features... -
Page 11: Use Of The Device
4.1 Display DATASET is finished. Indicates that one value is being recorded. During 5 It flashes: the DATASET did not start already. seconds FULL Flashing slowly: DATASET is between 80 and 90 % of the storage capacity. Flashing quickly: DATASET is between 90 and 100 % of the storage capacity. Constant: storage capacity full. -
Page 12: Functions Of Keys
(groups 2 and 3)* Dataset in progress Stop: indifferent * Please see the summary table of the groups organisation on page 13. ** %RH: only the KT 220 and KH 220. *** Lux: only the KH 220. Use of the device... - Page 13 Stop: indifferent Indifferent Inactive Dataset finished Measurements Indifferent scrolling* * Please see the summary table of the groups organisation page 14. ** %RH: only the KT 220 and KH 220. *** Lux: only the KH 220. Use of the device...
-
Page 14: Groups Organisation
4.3.1 Groups organisation The table below summarises the groups organisation and measured values available during a measurement dataset. Group 1 Group 2 Group 3 Max. value in temperature High alarm threshold in temperature Measured temperature Min. value in temperature Low alarm threshold in temperature Max. -
Page 15: Maintenance
5.1 Replace the battery With 4 years* battery life, KISTOCK guarantees long-term measurement. icon appears when the battery has to be replaced. To replace the battery: 1. Unscrew the 4 screws on the back side of the device with a screwdriver. 2. -
Page 16: Calibration
A calibration certificate is available as option in paper format. We recommend to carry out a yearly checking. Accessories References Illustrations 1 AA lithium 3.6 V KBL-AA Safety lock wall mount with padlock KAV-220 Wired extension for class 220 KISTOCK probes In polyurethane, 5 m length with male and female mini-DIN connectors KRB-220... - Page 20 BE CAREFUL! Material damages can happen, so please apply the precautionary measures indicated. Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to guidelines relating to WEEE.
