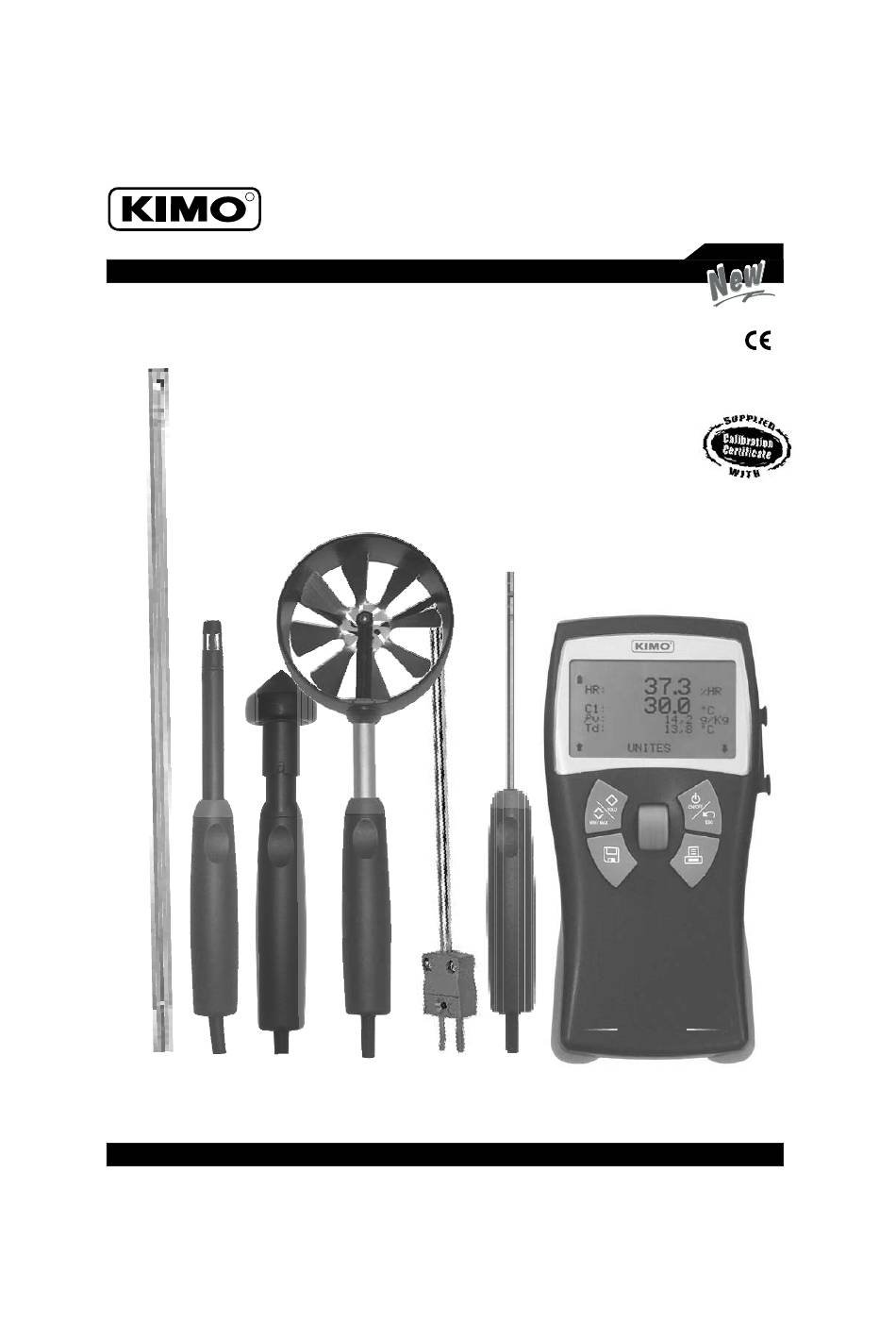

- Page 1 Air velocity Pressure Humidity Air flow Temperature CONSTRUCTEUR CLASS 300 DIRECTIONS FOR USE SMART MULTI-FUNCTIONS DEVICES VT 300, 300 PRO and 300 ST...
-
Page 2: Table Of Contents
SUMMARY ............. TECHNICAL SPECIFICATIONS 1 - 2 INTRODUCTION : ................- Description ................- Keyboard ................. - Connections ..........INTRODUCTION OF THE MENU ..............TEMPERATURE MENU ..........HOT-WIRE ANEMOMETRY MENU 4 - 5 ............VANE ANEMOMETRY MENU ..............HYGROMETRY MENU .............. - Page 3 SETTING : ..............- Date and hour ............... - Retro-lighting ................- Contrast ................- Keys beep ................- Languages ..............- Automatic stop DATA RECORDING, PRINTING AND DELETING ..................- New ..................- Print .................. - Delete ................... GUARANTEE .................
-
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS The VT 300 is a multi-function instrument, compatible with all SMART PRO probes, and with all thermocouple K temperature probes. The SMART PRO probes are supplied with calibration or adjusting certificate (last calibration date display when connected). They are automatically recognized when connected, and are fully interchangeable. Units of measure Measuring ranges Accuracies**... -
Page 5: Description
CONFORMITY : DISPLAY : Electromagnetical compatibility (norm NF EN 61326-1) Graphic, with automatic backlighting. Size 66 x 33 mm. POWER SUPPLY : HOUSING : 4 Alcaline batteries 1,5 V LR6 Shock-proof, made of ABS/PC, with Elastomer edges. WORKING ENVIRONMENT : KEYPAD : Neutral gas Made of Elastomer : 4 keys and one control knob. -
Page 6: Keyboard
Keyboard : 1. ON/OFF : Switch on / switch off the instrument. ESC : Return to the previous page or on the last validated data. 2. Press 1 time : HOLD function, freeze the current measure. Press 2 times : show the values minimum and maximum measured. -
Page 7: Introduction Of The Menu
INTRODUCTION OF THE MENU To switch on the instrument, press the key “ON/OFF”. The screen shows the name of the device, its serial number, its calibration date, the date and hour (see photo below). To access to one menu, connect the corresponding probe. If this one uses the SMART PRO system, the screen shows the type of the connected probe, and its calibration or adjusting date. -
Page 8: Vane Anemometry Menu
Units : See p. 6 Automatic average : See p. 7 Point / point average : See p. 7 Automatic point / point average : See p. 7 Airflow : See p. 7 Delta T : See p.7 VANE ANEMOMETRY MENU When you connect a vane probe, the screen shows its characteristics.Press then on the knob to enter in the menu vane anemometry, the screen shows the measured values in air velocity and in temperature... -
Page 9: Hygrometry Menu
HYGROMETRY MENU When you connect a hygrometry probe,the screen shows its characteristics. Press then on the knob to enter in the hygrometry menu, the screen shows the measured values in humidity, temperature, absolute humidity and dew point temperature and the next menu appears on the last line ( browse the menu by scrolling down the knob) : - Units... -
Page 10: Delta T
Delta T : When 2 PT100 probes or 2 thermocouple K probes are connected, you have the possibility of calculate the Delta T which corresponds to the difference between the temperature measured by C1 (or T1) and C2 (or T2). If 2 PT100 probes and 2 thermocouple K probes are connected at the same time, the screen shows 2 delta T. -
Page 11: Date And Hour
- Circular : browse then the units of measurement by scrolling down the knob and validate. Enter the diameter of the diffuser. Browse each figures by scrolling down the knob and validate pressing on the knob. You have access to a new scrolling down menu : - Units (see p. -
Page 12: Languages
Languages : By the means of the knob, browse the different available languages and validate pressing on the knob. Automatic stop : It is possible to cancel the automatic stop of the device or to settle it. For that purpose, use the scrolling down knob and choose "... -
Page 13: Print
CALIBRATION All KIMO devices are calibrated in our premises and supplied with a calibration certificate, as per the AFNOR FD X 07-012 norms, in accordance with the National Standards. In order to comply with standards of Quality Assurance, measuring devices should be checked annualy. - Page 14 EXPORT DEPARTMENT Boulevard de Beaubourg Emerainville - BP 48 77312 MARNE LA VALLEE CEDEX 2 Tel : 33.1.60.06.69.25 Fax : 33.1.60.06.69.29...
