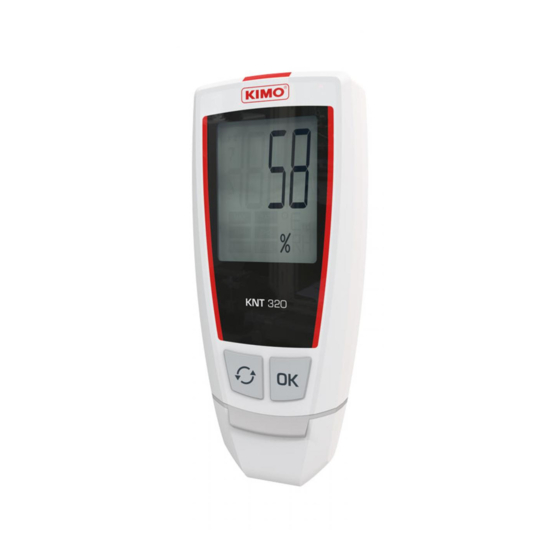

KNT 320 data collector
Data storage and recovery
for KISTOCK 2015 dataloggers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNT 320 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kimo KNT 320

Summary of Contents for Kimo KNT 320

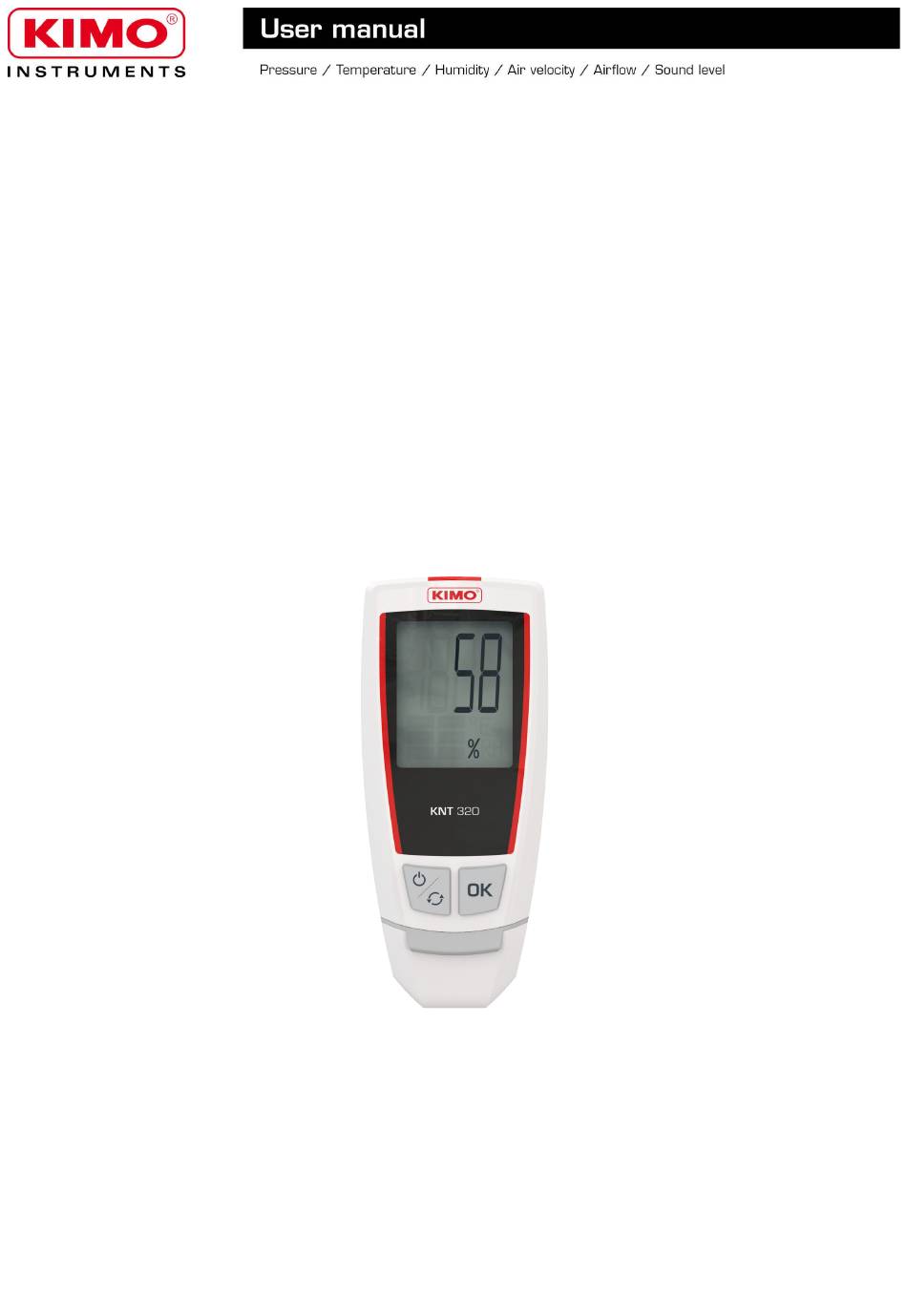

  • Page 1 KNT 320 data collector Data storage and recovery for KISTOCK 2015 dataloggers...

  • Page 3: Table Of Contents

    Table of contents 1 Safety..............................4 1.1 Precautions for use........................4 1.2 Symbols used..........................4 2 Device presentation..........................4 2.1 Use..............................4 2.2 Device description.........................4 2.3 Description of keys........................4 2.4 Connections..........................5 3 Technical features..........................5 3.1 Data collector..........................5 3.2 Housing............................5 3.3 Guarantee.............................5 4 Device use............................6 4.1 Functioning principle........................6 4.2 Display............................6 4.3 Switch on/off the data collector.....................6 4.4 Auto-off............................6...

  • Page 4: Safety

    2.1 Use The KNT 320 data collector allows to download and store the recorded data from Kistock 2015 devices in order to download them on a computer. The KNT 320 also allows to send a new configuration and start an other measurement dataset without using the Kilog 2015 software.

  • Page 5: Connections

    Battery power supply Charging time from about 7 minutes (50%) to 2 hours (100%) Environment Air and neural gases 3.3 Guarantee KNT 320 data collector have 1-year guarantee for any manufacturing defect (return to our After-sales service required). Technical features...

  • Page 6: Device Use

    4.1 Functioning principle Transfer datasets stored on the data collector Store the Kistock datasets to the PC on the data collector Send a new configuration on the Kistock devices and start an other dataset 4.2 Display When the icon appears: data transfer is in progress Indicates that the data transfer is done Flashing slowly: data collector reached between 70 and 80% of its storage capacity FULL...

  • Page 7: Kistock - Data Collector Interface

    Or wait 5 seconds 1- Switch on the data 2- Display used 3- “On” collector. “On” is displayed. storage capacity Back to home screen. 4.6 Kistock – data collector interface 4.6.1 Download the Kistock data on the data collector Procedure to download data: If the dataset is finished: The Kistock displays The data collector displays the data transfer progression: 0-100%...

  • Page 8: Reconfigure The Kistock And Start An Other Measurement Dataset

    4.6.2 Reconfigure the Kistock and start an other measurement dataset Once the measurement dataset is transferred to the data collector (see the downloading procedure page 7), it is possible to start an other dataset directly from the data collector. Two recording configurations can be sent: “Loop”: values are recorded continuously and when the storage capacity is full, the first recorded values are •...
  • Page 9 Procedure to send a new configuration: Once the dataset is transferred to the data collector (see downloading procedure described page 7, screens 1 to 3): An other measurement dataset starts: The data collector displays the new configuration transfer progression: 0-100% then displays “On”.

  • Page 10: Summary Of Functions

    4.6.3 Summary of functions Plug the data collector on the Kistock Switch on the data collector. “On” is displayed. Dataset is finished The data collector does not detect Dataset is in progress Transfer progression is any point to download. The error “Stop YES”...

  • Page 11: Data Collector - Pc Interface With Kilog 2015 Software

    4.7 Data collector – PC interface with Kilog 2015 software 4.7.1 Download data collector on PC ➢ Plug the data collector on a USB port of the computer. ➢ Launch the Kilog 2015 software by double clicking on the icon. ➢...

  • Page 12: Update The Data Collector

    • ➢ Tick the “Manual updating” box. ➢ Click on “Browse” and take the updating file given by the KIMO after-sales service (.zip file type). ➢ Click on “Start update” to start the device updating. The progress of the updating displays in the progression bar.

  • Page 13: Data Collector - Pc Interface Without Kilog 2015 Software

    It is also possible to manage the files of the data collector without using the Kilog 2015 software. In this case, the KNT 320 data collector works as a USB flash drive. It is recognised by the computer as a removable disk with the name “KNT-320”.

  • Page 14: Maintenance

    5.1 Recharge the battery The KNT 320 data collector power supply is ensured by a rechargeable lithium polymer battery. When the battery is low, icon is displayed. ➢ To recharge the battery, plug the data collector on a USB port of your PC.
  • Page 16 BE CAREFUL! Material damages can happen, so please apply the precautionary measures indicated. Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to guidelines relating to WEEE.
