  • Page 1 Class 320 KISTOCK KT 320 / KCC 320 / KP 320-321 KPA 320 / KTT 320...
  • Page 3: Table Of Contents

    Table of contents 1 Safety instructions..........................4 1.1 Precautions for use........................4 1.2 Symbols used..........................4 2 Presentation of the device........................5 2.1 Use..............................5 2.2 Applications...........................5 2.3 References............................5 2.4 Description of the device.......................6 2.5 Description of keys........................6 2.6 Description of LEDs........................6 2.7 Connections..........................6 2.8 Mounting............................6 3 Technical features..........................7 3.1 Technical features of the devices....................7 3.2 Programmed units.........................9...
  • Page 4: Safety Instructions

    1.1 Precautions for use Please always use the device in accordance with its intended use and within parameters described in the technical features in order not to compromise the protection ensured by the device. 1.2 Symbols used For your safety and in order to avoid any damage of the device, please follow the procedure described in this user manual and read carefully the notes preceded by the following symbol: The following symbol will also be used in this user manual: Please read carefully the information notes indicated after this symbol.
  • Page 5: Presentation Of The Device

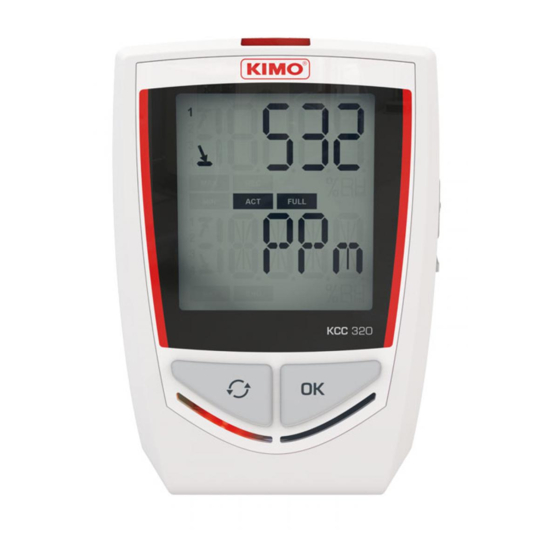

    2.1 Use The KISTOCK class 320 dataloggers allow the measurement of several parameters: KT 320: internal measurement of temperature with two universal inputs for probe • KCC 320: internal measurement of temperature, humidity, atmospheric pressure and CO • KP 320 – KP 321: internal measurement of differential pressure with two measuring ranges •...
  • Page 6: Description Of The Device

    The communication between the device and the computer is carried out via an USB cable and with the female micro-USB connector. Micro-USB connector KT 320: 2 mini-DIN KP 320 and KP 321: 2 pressure KCC 320 and KTT 320: 4 mini-thermocouple...
  • Page 7: Technical Features

    3.1 Technical features of the devices KT 320 KTT 320 °C, °F, °Ctd, °Ftd, %RH, mV, V, mA, A Units displayed Programmed and free units are also °C, °F available (see table page 9) 0.1°C, 0.1°F, 0.1%RH, 1 mV, 0.001 V, Resolution 0.1°C, 0.1°F...
  • Page 8 KCC 320 KPA 320 Units displayed °C, °F, %RH, hPa, ppm °C, °F, %RH, hPa Resolution 0.1°C, 1 ppm, 0.1%RH, 1 hPa 0.1°C, 0.1%RH, 1hPa External input Micro-USB female connector Input for probe Hygrometry, temperature, atmospheric pressure, Internal sensor Hygrometry, temperature, atmospheric pressure Temperature and hygrometry: capacitive Temperature and hygrometry: cpacitive Type of sensor...
  • Page 9: Programmed Units

    3.4 Features of the housing Dimensions 110.2 x 79 x 35.4 mm Weight KT 320, KCC 320, KP 320, KP 321: 206 g. KTT 320 and KPA 320: 200 g. 2 lines LCD screen Display Screen size: 49.5 x 45 mm...
  • Page 10: Features Of Optional Probes

    All the thermocouple temperature probes for the KTT 320 KISTOCK have a class 1 sensitive element as per IEC 584-1, 2 and 3 standards. For more details about the available thermocouple probes, please see the ''Thermocouple probes'' datasheet. For more details, please see the “Measuring probes for KT 320 KISTOCK” and “Thermocouple probes” datasheets. Technical features...
  • Page 11: Dimensions (In Mm)

    ➢ Connect the probe in such a way the mark on the probe is in front of the user. Mark 3.6 Dimensions (in mm) 3.6.1 Devices KT 320 KTT 320 KP 320 / KP 321 KCC 320 / KPA 320 3.6.2 Wall mount (in option)
  • Page 12: Use Of The Device

    4.1 Display DATASET is finished. Indicates that one value is being recorded. It flashes: the DATASET did not start already. Flashing slowly: DATASET is between 80 and 90% of the storage capacity. FULL Flashing quickly: DATASET is between 90 and 100% of the storage capacity. Constant: storage capacity full.
  • Page 13: Function Of Keys

    4.3 Function of keys OK key: allows to start, stop the dataset or change of scrolling group like described in the following tables. Selection key: allows the scroll values in the scrolling group like described in the following tables. Device Type of start/stop Action Illustration...
  • Page 14 Device Type of start/stop Action Illustration state selected used generated Start: indifferent Group scrolling (groups 1, 2 and Stop: indifferent Indifferent Inactive Dataset finished Measurements Indifferent scroll* * Please see the summary table of the groups organisation on the following page. Use of the device...
  • Page 15: Groups Organisation

    4.3.1 Groups organisation The table below summarises the groups organisation and measured values available during a measurement dataset. Group 1 Group 2 Group 3 Max. value in temperature High alarm threshold in temperature Measured temperature* Min. value in temperature Low alarm threshold in temperature Max.
  • Page 16: Pc Communication

    Examples: KT 320 KISTOCK with a thermo-hygrometric probe (channel 1) and a temperature probe (channel 2): • Or wait 3 seconds Or wait 3 seocnds KCC 320 KISTOCK: • Or wait 3 seconds Or wait 3 seconds The measurements scroll can be carried out by pressing the “Select” button of the datalogger or wait about 3 seconds and the display scrolls automatically.
  • Page 17: Bluetooth® Function

    Kistocks of the class 320 has the Bluetooth® function allowing to communicate with a smartphone or a tablet (Androïd or iOS) via the Kilog Mobile application. The Kistock is named “Kistock 320” in the list of available devices of the tablet or smartphone. By default, Bluetooth®...
  • Page 18: Calibration

    A calibration certificate is available as option under paper format. We recommend to carry out a yearly checking. 7.1 KCC 320: perform a CO measurement verification To avoid potential drifts, it is recommended to perform regularly a CO measurement verification. ➢...
  • Page 19: Accessories

    The probe is disconnected. Plug it again to the datalogger. value. There is no Bluetooth communication with the The Bluetooth activation is on OFF. Reconfigure Bluetooth on ON datalogger. with the KILOG software (see page 16). * Only with the KT 320 and KTT 320 KISTOCK. Troubleshooting...
  • Page 20 BE CAREFUL! Material damages can happen, so please apply the precautionary measures indicated. Once returned to KIMO, required waste collection will be assured in the respect of the environment in accordance to guidelines relating to WEEE.
