ETI THERMALITE 2, 226-102/112/122/132/142/152/202 - Thermometer Manual

Table of Contents

Contents

1 PRODUCT MODELS AND CODES
2 INSTRUMENT OPERATION
3 HOLD
4 CALCHECK
5 BATTERY REPLACEMENT
6 ERROR MESSAGE
7 EMC/RFI
8 GUARANTEE
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

PRODUCT MODELS AND CODES

Model	Product code
ThermaLite 2 - grey	226-102
ThermaLite 2 - white	226-112
ThermaLite 2 - yellow	226-122
ThermaLite 2 - green	226-132
ThermaLite 2 - red	226-142
ThermaLite 2 - blue	226-152
ThermaLite 2 - grey - surface	226-202

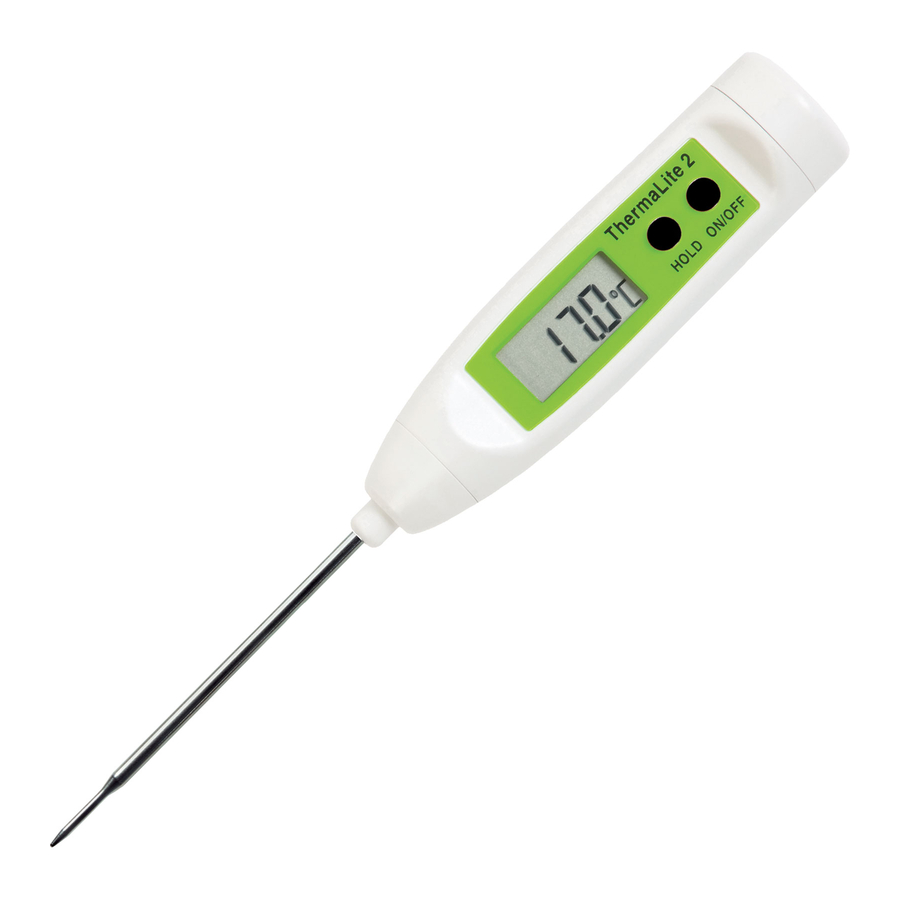

INSTRUMENT OPERATION

The instrument is switched on by pressing the ON/OFF button located on the front of the thermometer. Insert the probe into the substance being measured. The instrument reading may take a few seconds to stabilise, depending on the nature of the measurement. The instrument will automatically turn off after 10 minutes.

HOLD

Press the HOLD button to retain the display reading, press the HOLD button again to resume taking temperature. Please note: once HOLD is selected the unit will not automatically turn off.
°C/°F - While powering the unit on, hold the ON/OFF button for five seconds to change between °C and °F. Once changed, the unit will remain in the selected value.

CALCHECK

To check the calibration of the thermometer press and hold the HOLD button, turn the instrument ON and the test cap within the unit will display 0.0°C ±0.1°C.

BATTERY REPLACEMENT

The battery will need to be replaced when the instrument displays 'FLAt bAtt' or if the battery empty icon is displayed.
Replace the battery with a 3 volt lithium coin cell (CR2032). The battery is located at the top of the instrument, twist the cap anti-clockwise and pull to remove.

ERROR MESSAGE

If the thermometer or probe has developed a fault the instrument will show 'Err'.

EMC/RFI

Instrument performance may be affected temporarily if operated within a high frequency radio field, such as near a mobile phone, or if subjected to an electrostatic shock.

GUARANTEE

This instrument carries a two-year guarantee against defects in either components or workmanship. During this period, products that prove to be defective will, at the discretion of ETI, be either repaired or replaced without charge. This guarantee does not apply to probes, where a six-month period is offered. The product guarantee does not cover damage caused by fair wear and tear, abnormal storage conditions, incorrect use, accidental misuse, abuse, neglect, misapplication or modification. Full details of liability are available within ETI's Terms & Conditions of Sale at etiltd. com/terms. In line with our policy of continuous development, we reserve the right to amend our product specification without prior notice.
