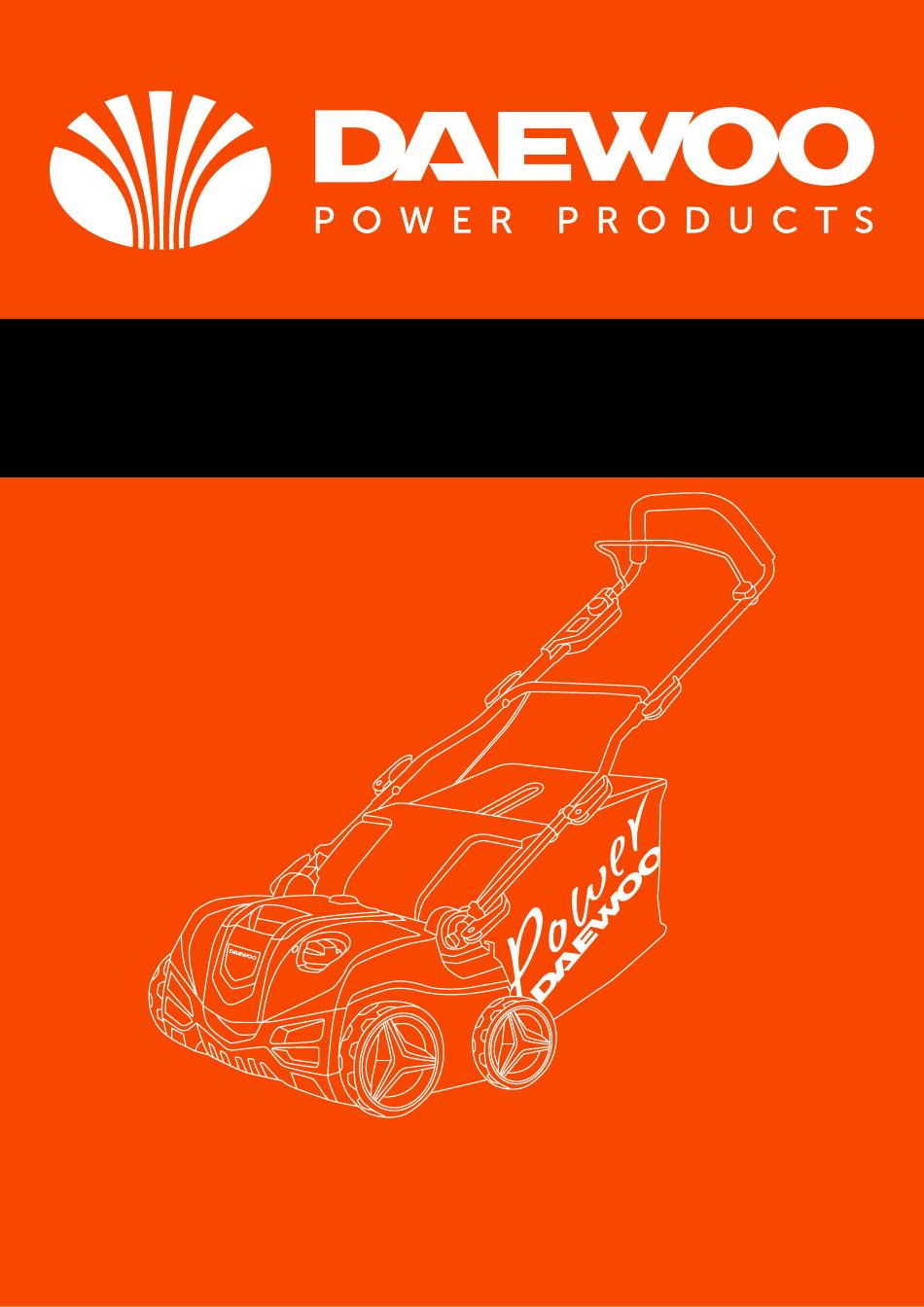

- Page 1 DSC3840Li Lithium Scarifier and Raker USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. SYMBOLS MARKED ON THE PRODUCT ................... 2 2. GENERAL SAFETY RULES ........................3 3. GENERAL IDENTIFICATION ........................7 4. TECHNICAL DATA ..........................8 5. ASSEMBLY .............................. 8 6. ADJUSTING THE WORKING DEPTH ....................11 7. OPERATING INSTRUCTION ........................ 11 8. -
Page 3: Symbols Marked On The Product
1. SYMBOLS MARKED ON THE PRODUCT Read this instruction book carefully before using the lawn mower and keep it in a safe place for future reference. Keep bystanders away. Beware of sharp blades. Blades continue to rotate after the motor is switched off. Switch off isolator key before adjusting, cleaning and before leaving the product unattended for any period. -
Page 4: General Safety Rules
Accumulator Disposal: Old Accumulators and batteries must not be added to household waste, but should be disposed of in accordance with the applicable legislation. Take unusable rechargeable batteries to the dealer’s or community’s battery collection point. Disposing of the packaging: The packaging is made of cardboard and separately labeled foil which is also recyclable. - Page 5 stood on the ground and must not be tilted. • Safety components must be checked each time before use and must be replaced by our customer service if damaged. WARNING: Do not touch the teeth before the equipment is disconnected from the power supply and the teeth have reached a complete standstill.
- Page 6 and whenever it has to be moved from or to the area you want to work on. • Never use the equipment if the safety devices or safety grilles are damaged, or without the atta- ched safety devices, e.g. deflectors and/or catch baskets. •...
- Page 7 an accessory, you must switchoff the drive, pull the safety plug from the equipment and make sure that all moving parts have come to a complete standstill. Allow the equipment to cool before carr- ying out any inspections, adjustment, etc. Treat the equipment with care and keep it clean.
-
Page 8: General Identification
between -20ºC and +70ºC. When not in use, store the battery in a dry place between 10ºC and 30ºC. The battery should be recharged when it fails to produce sufficient power on jobs which were easily done previously. DO NOT CONTINUE using product with its battery in a depleted condition. The battery is not fully charged at the factory. -
Page 9: Technical Data
4. TECHNICAL DATA Model DSC3840Li Power: 40v Lithium-Ion battery No load speed: 3200 rpm Motor power: Brushless Deck material: Plastic Cutting width: 380 mm Drive type: Hand push Cutting height: -10 ~ +5 mm, Stepless Grass bag capacity: 45 L Front / Rear wheel size: 7"... - Page 10 5.2 Assemble the optional grass catcher 1. Push both metal frame parts into each other .(Fig. 2G) 2. Pull the cloth bag over the metal frame .(Fig. 2H) 3. Pull the rubber clips over the metal frame. (Fig. 2I) To fit: Raise the rear cover and hitch the grass catcher on rear of mower. (Fig. 2J/ Fig. 2K/ Fig. 2L). To remove: Grasp and lift the rear cover, remove grass catcher.
- Page 11 Fig. 2M Fig. 2N Fig. 2O Fig. 2P 5.4 Remove the battery 1. Open the battery door. 2. Press and hold the battery latch button at the bottom of the battery pack. (Fig. 2Q) 3. Remove battery pack from the product. (Fig. 2R) Fig.
-
Page 12: Adjusting The Working Depth
5.5 Adjustment for an appropriate height 1. Pull the locking lever opening; 2. Rotating the upper handle centered of the angle adjusting gear for adjusted an appropriate angle into the scope 0º to 18º as the Fig. 2S shown; 3. Push the locking lever closed to connect the lower handle and the unit body. The angle adjusting gear Fig. - Page 13 Fig. 4A Fig. 4B Fig. 4C Fig. 4D CAUTION! The blade starts turning as soon as the motor is started. WARNING! Cutting elements continue to rotate after the motor is switched off. 7.2 LED Please refer to the following table for the meaning of LED display. (Fig. 4E) Lawn mower status button (1) Battery pack capacity indicator status (Press “POWER”...
- Page 14 Fig. 4E 7.3 Tips for proper working It is recommended that you overlap scarifying paths a little. Try to scarify in straight lines for a nice, clean look， In so doing, the aeration swaths should always overlap each other by a few centimeters in order to avoid bare strips. If you use the grass catcher which is available as an option, it has to be emptied as soon as grass clippings start to trail behind during scarifying.
-
Page 15: Replacement Of The Roller
8. REPLACEMENT OF THE ROLLER WARNING: Be sure to wear work gloves. The equipment can be assembled with the scarifying roller or the aerator roller. Only replace the roller with an original DAYE roller, as this will ensure top performance and safety under all conditions. -
Page 16: Cleaning And Maintenance
WARNING: Remove the battery from the machine. 9. CLEANING AND MAINTENANCE DANGER: Always pull out the on-off button before performing any adjusting, repair, mainte- nance or cleaning work on the equipment. Make sure that the spike drum is not rotating. 9.1 Cleaning •... -
Page 17: Troubleshooting
11.TROUBLESHOOTING Fault Possible causes Rectification Motor does not sta rt a) Internal terminals disconnected. a) By customer service workshop. b) Safety lock-off defective. b) By customer service workshop. Roller housing clogged. c) Change the Scarifier/ aerator depth if d) On off button is not connected. -
Page 18: Warranty
Manufactured under license of Daewoo International Corporation, Korea...
