Castex PX-1500HPH Operator And Parts Manual

Carpet extractor with heat
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Model No.:
608218
CASTEX
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
FAX: 1–800–678–4240
CUSTOMER SERVICE: 1–800-964–9644
PX-1500HPH
Home
Find... Go To..
Carpet Extractor with Heat
Operator and Parts Manual
Rev. 00 (06-99)
608701

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PX-1500HPH and is the answer not in the manual?

Questions and answers

Related Manuals for Castex PX-1500HPH

Summary of Contents for Castex PX-1500HPH

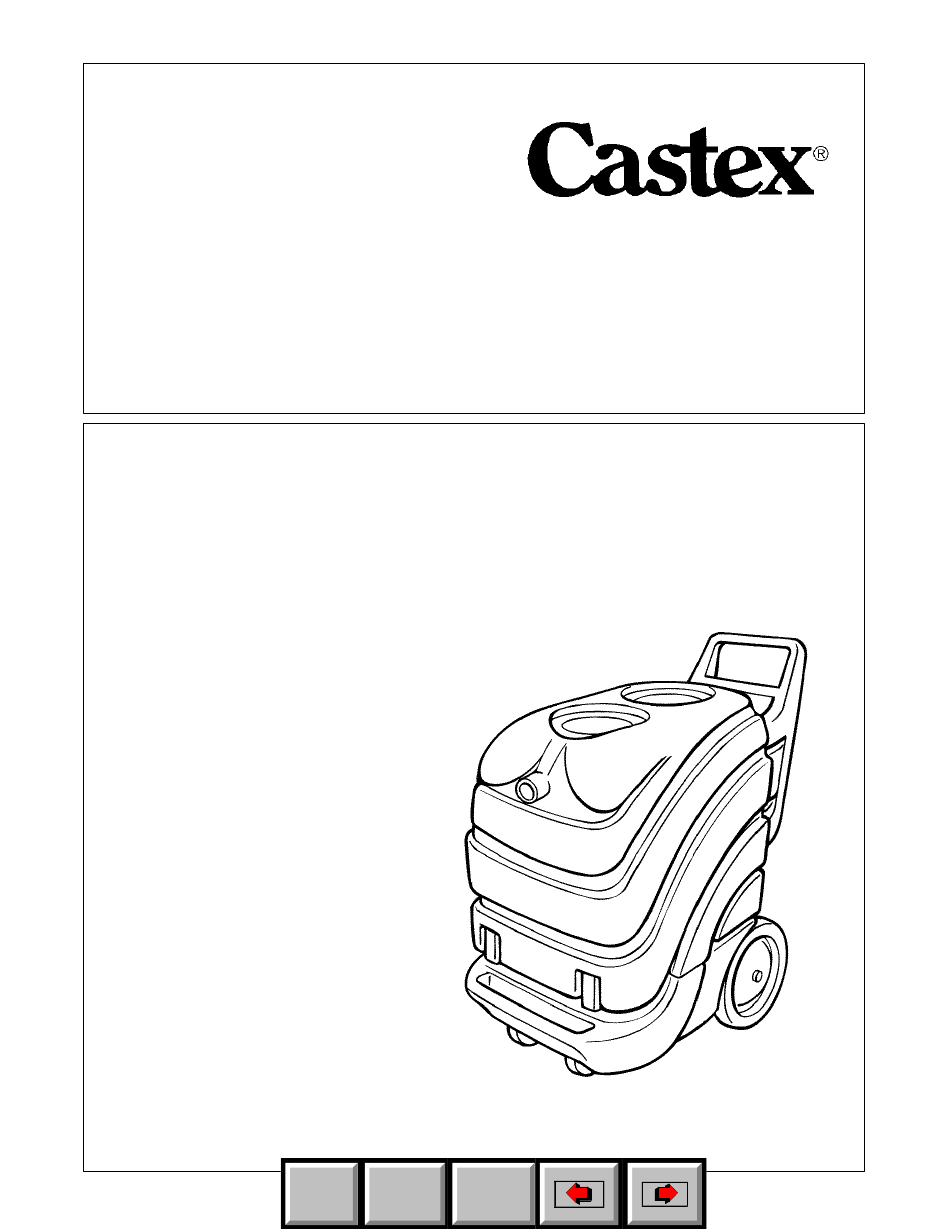

  • Page 1 PX-1500HPH Carpet Extractor with Heat Operator and Parts Manual Model No.: 608218 CASTEX 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. 608701 FAX: 1–800–678–4240 CUSTOMER SERVICE: 1–800-964–9644 Rev. 00 (06-99) Home Find... Go To..
  • Page 2 Home Find... Go To..

  • Page 3: Table Of Contents

    ....... . . OPTIONAL ACCESSORIES ....PX-1500HPH (06–99) Home Find... Go To..

  • Page 4: Safety Precautions

    Do not stretch cord. – Do not handle plug with wet hands. – Keep cord away from heated surfaces. – Report machine damage or faulty operation immediately. – Follow mixing and handling instructions on chemical containers. PX-1500HPH (03–01) Home Find... Go To..

  • Page 5: Machine Setup

    (Figure 2). (Figure 4). Activate “PUMP” and “HEATER” switches. Solution temperature will rise approximately 0.55_C (1_F) per minute with a full solution tank. Maximum achievable solution temperature is approximately 66_C (150_F). PX-1500HPH (04–99) Home Find... Go To..

  • Page 6: Operating Floor Tool

    (not covered by warranty). If foam develops, remove rear clear lid and pour 30 ml (1 oz) of anti-foam solution into recovery tank. 4. When finished cleaning, turn off switches and drain recovery tank (See DRAINING MACHINE). FIG. 6 PX-1500HPH (04–99) Home Find... Go To..

  • Page 7: Operating Hand Tool

    2. Remove drain hose from holder, position hose over floor drain and twist off knob to drain (Figure 10). FIG. 8 4. Begin cleaning by squeezing hand tool trigger and pulling tool backwards (Figure 9). FIG. 10 PX-1500HPH (04–99) Home Find... Go To..

  • Page 8: Maintenance

    Make sure tanks are empty before opening. To open extractor for servicing, follow these steps: a. Unplug power cords from wall outlets. b. Unlatch two latches at front of machine. c. Lift tank upward, away from chassis (Figure 12). PX-1500HPH (04–99) Home Find... Go To..
  • Page 9 Do this slowly to allow grease to enter bearing (Figure 14). ATTENTION: Overgreasing pump will damage seals. ATTENTION: Do not use an air powered or hand lever grease gun, they will damage pump. PX-1500HPH (11–99) Home Find... Go To..

  • Page 10: Storing Machine

    2. Pour 1 L (32 oz) undiluted antifreeze into water bladder. 3. Place a bucket under spray jets to catch spray. 4. Turn on “PUMP” switch. 5. Squeeze trigger on tool for 30 seconds. 6. Allow antifreeze to remain in system. PX-1500HPH (06–99) Home Find... Go To..

  • Page 11: Trouble Shooting

    Float shut–off activated. Empty recovery tank. Water not heating. Thermostat failed. Replace Thermostat. Loose wires to heater. Consult wiring diagram and repair. Limit Thermostat breaker tripped or Reset Limit Thermostat or replace. has failed. PX-1500HPH (04–99) Home Find... Go To..

  • Page 12: Electrical Diagram

    ELECTRICAL DIAGRAM 120V Wiring VACUUM PUMP HEATER INDICATOR LIGHT POWER CORD HOUR METER POWER CORD HEATER SOLUTION PUMP VACUUM MOTOR PX-1500HPH (04–99) Home Find... Go To..

  • Page 13: Parts List

    230908.BK PLATE, REAR COVER BLACK 140017 WASHER 3/8 SPLTLCK 140519 NUT 10–24 KEP 140028 WASHER 3/8 FLT DCORD, EXT 14/3X25’ YELLOW 140900 SCREW 10–24X3/4 TRSPHL 130694 D RECOMMENDED STOCK ITEMS 120619 DECAL, WARNING EXTRACTORS PX-1500HPH (04–99) Home Find... Go To..
  • Page 14 PARTS LIST UPPER HOUSING GROUP PX-1500HPH (04–99) Home Find... Go To..
  • Page 15 140016 WASHER 1/4 LCK 120906 DECAL, IMPORTANT–DRAIN... 230946 BRACKET, TANK BRACE FRONT 140825 SCREW, #6X1/2 PANPHL 120101 DECAL, “CASTEX” WHITE MEDIUM ∇ 590965 KIT, DRAIN HOSE COMPLETE 140932 D LATCH, HOOD W/ KEEPER 160627 HOSE, DRAIN 140801 SCREW 8–32X3/8 TRSPHL...
  • Page 16 PARTS LIST LOWER HOUSING GROUP PX-1500HPH (04–99) Home Find... Go To..
  • Page 17 HEATER 1700W (230V) COMPLETE 606659 GAUGE,PRESSURE 0–600 PSI 102566 INSULATOR, HEATER 140825 SCREW #6X1/2 PANPHL 102568 STRAP, NYLON W/ ADHESIVE 140519 NUT 10–24 KEP 101288 COVER HEATER ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS PX-1500HPH (06–99) Home Find... Go To..
  • Page 18 PARTS LIST PLUMBING GROUP PX-1500HPH (04–99) Home Find... Go To..
  • Page 19 HEATER OUTLET TUBE W/NUT 210043 600546 FERRULE S/S FOR #600545 120198 DECAL, CLEAN – VALVE KNOB 130692 CONTROL, THERMOSTAT 120199 DECAL, PREHEAT – VALVE KNOB ∇ ASSEMBLY INCLUDED IN ASSEMBLY D RECOMMENDED STOCK ITEMS PX-1500HPH (04–99) Home Find... Go To..
  • Page 20 CONNECTING ROD 190300 DCUP KIT, SET OF 2 190316 DPULLER, VALVE SPRING RETAINER 190307 SAFETY COVER 190317 DPULLER, VALVE, POPPET SEAT 190305 GREASE FITTING 190022 DGUN, GREASE (METAL) 190309 SET SCREWS, PUMP N/S= NOT SHOWN PX-1500HPH (04–99) Home Find... Go To..

  • Page 21: Optional Accessories

    LEVER, K–VALVE W/PIN 200965 TIP, BRASS #8002 210210 VALVE, FLOW CONTROL 200994 CAP, SPRAY BODY 190600 VALVE PIN & SPRING 140609 PIN, ROLL 3/16 X 9/16 (NOT SHOWN 210148 CAP, HEX, VALVE N/S NOT SHOWN PX-1500HPH (10–96) Home Find... Go To..
  • Page 22 KIT, VALVE PIN & SPRING 200994 CAP, SPRAY BODY CAP, HEX, VALVE 140834 SCREW, 1/4–20 X 5/8 150403 ELBOW, 1/4–45_ 120845 DECAL, “HIGH PRESSURE” 150615 NIPPLE, CLOSE 1/4 ∇ ASSEMBLY INCLUDED IN ASSEMBLY N/S NOT SHOWN PX-1500HPH (10–96) Home Find... Go To..
  • Page 23 COUPLER, QUICK SER. 60 150933 PLUG, QUICK COUPLER 150615 NIPPLE ∇5 160401 HOSE, VACUUM W/ CUFFS 25’ 160430 CUFF, HOSE 1–1/2” 160451 CONNECTOR, VAC HOSE 1–1/2” ∇ ASSEMBLY INCLUDED IN ASSEMBLY N/S NOT SHOWN PX-1500HPH (10–96) Home Find... Go To..
