Castex HS-1100 Operator And Parts Manual

High speed floor machine
Hide thumbs
Table of Contents

Advertisement

Quick Links

U.S. PATENT NO.: D.343,932 & D.345,035
Model No.:
608250 – HS-1100
607364 – HS-1500
607365 – HS-1900
CASTEX INCORPORATED
12875 RANSOM STREET
HOLLAND MI 49424 U.S.A.
A TENNANT COMPANY
1–800-522–7839
616-786–2330
FAX: 1–800–678–4240
CUSTOMER SERVICE: 1–800-964–9644
Home
HS-1100/HS-1500/HS-1900
Find... Go To..
High Speed Floor Machine
Operator and Parts Manual
607368
Rev. 01 (08-99)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HS-1100 and is the answer not in the manual?

Questions and answers

Related Manuals for Castex HS-1100

Summary of Contents for Castex HS-1100

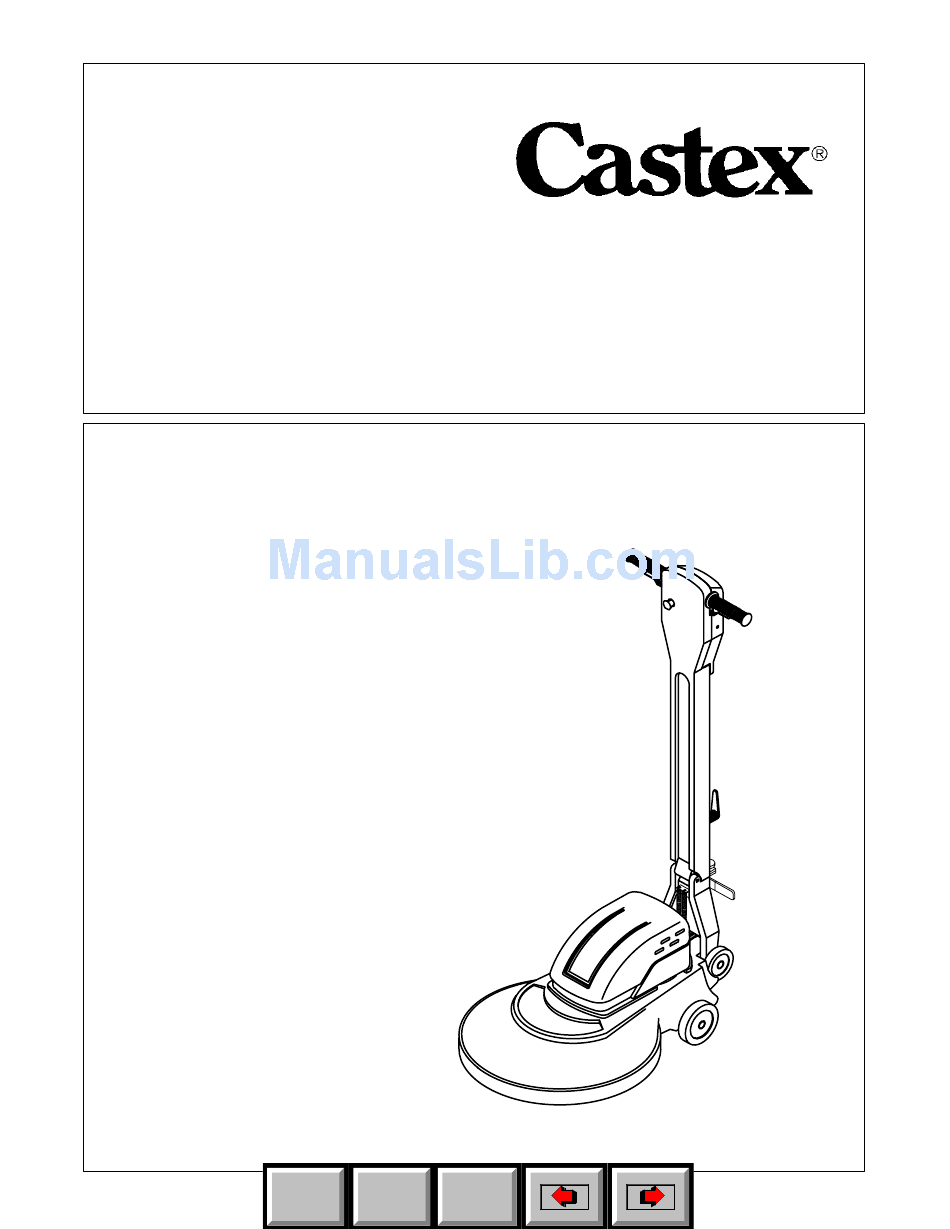

  • Page 1 HS-1100/HS-1500/HS-1900 High Speed Floor Machine U.S. PATENT NO.: D.343,932 & D.345,035 Operator and Parts Manual Model No.: 608250 – HS-1100 607364 – HS-1500 607365 – HS-1900 CASTEX INCORPORATED 12875 RANSOM STREET HOLLAND MI 49424 U.S.A. A TENNANT COMPANY 1–800-522–7839 616-786–2330 607368 FAX: 1–800–678–4240...

  • Page 2: Table Of Contents

    The machine is maintained regularly - per the E 2000 Tennant Company machine maintenance instructions provided. Printed in U.S.A. Castex is a registered United States trademark of Tennant Company. The machine is maintained with manufacturer supplied or equivalent parts. TABLE OF CONTENTS...

  • Page 3: Safety Precautions

    Keep cord away from heated surfaces. – Do not release handle grips until pad comes to a complete stop. – Go slow on inclines and slippery surfaces. – Report machine damage or faulty operation immediately. HS-1100/1500/1900 (03–01) Home Find... Go To..

  • Page 4: Machine Components

    1100 model. The 1500/1900 models should not be used for spray buffing; circuit breaker may trip or machine overloading may occur. The 1500/1900 models require more power at increased amp draw due to higher speeds. HS-1100/1500/1900 (08–99) Home Find... Go To..

  • Page 5: Machine Operation

    5. To stop machine, release triggers and the safety lock button will automatically engage. FOR SAFETY: When using machine, do not release handle grips until pad comes to complete stop. 6. When finished burnishing, perform the maintenance procedures. FIG. 5 HS-1100/1500/1900 (03–01) Home Find... Go To..

  • Page 6: Machine Maintenance

    Stock Items are clearly identified with a bullet preceding the parts description (Figure 10). FIG. 10 FIG. 8 8. Every 250 hours of operation, check motor carbon brushes for wear. Replace brushes when 10 mm (0.38 in) or less in length. HS-1100/1500/1900 (03–01) Home Find... Go To..

  • Page 7: Trouble Shooting

    23 m (75 ft) Gauge 3X1.5mm 23 m (75 ft) Gauge 3X1.5mm LENGTH PAD DIAMETER 510 mm (20 in) 510 mm (20 in) 510 mm (20 in) DECIBEL RATING AT 70dB(A) 70dB(A) 70dB(A) OPERATOR’S EAR, INDOORS ON TILE FLOOR HS-1100/1500/1900 (07–00) Home Find... Go To..

  • Page 8: Parts List

    PARTS LIST HANDLE GROUP HS-1100/1500/1900 (03–01) Home Find... Go To..
  • Page 9 SCREW, SET 140239 SCREW, 3/8X1–3/4 603107 LATCH, HANDLE 603108 SPRING, SWITCH 140003 WASHER, 1/4X1 603104 HOOK, CORD HANDLE 608251 DECAL, HS-1100 578244000 WASHER, LOCK 607366 DECAL, HS-1500 200031444 SCREW, M6X1.0X30 607367 DECAL, HS-1900 604306 TUBE, FOLDING HANDLE 603106 LEVER, HANDLE LATCH...
  • Page 10 PARTS LIST BASE GROUP 10 9 47 48 HS-1100/1500/1900 (03–01) Home Find... Go To..

  • Page 11: Washer, Lock

    240075 DPULLEY, HS-1500 140546 NUT, 5/16–18 240076 DPULLEY, HS-1900 140628 KEY, PULLEY 240077 600824 GASKET SPACER SET 140859 SCREW SET (HS-1100/HS-1500) (HS-1100/HS-1500 120V) DBELT (HS-1100) 240078 069760417 SLEEVE (HS-1100/HS-1500 120V) DBELT (HS-1500) 240079 103019 CAP, HUB DBELT (HS-1900) 240080 103066...
  • Page 12 PARTS LIST CONTROL HANDLE GROUP 8 (230V/240V) 8 (120V) HS-1100/1500/1900 (04–99) Home Find... Go To..

  • Page 13: Spring, Switch

    SPRING, LOCK BUTTON 600396 POWER CORD, 23M (230V) DBREAKER, CIRCUIT 17A, 120V 605201 140028 WASHER, 3/8 FLAT (FOR 230V/240V (HS-1100/HS-1500) SWITCH ONLY) DBREAKER, CIRCUIT 20A, 120V D RECOMMENDED STOCK ITEMS 130752 (HS-1900) 140519 NUT, 10–24 KEP HS-1100/1500/1900 (03–01) Home Find... Go To..

  • Page 14: Electrical Diagram

    ELECTRICAL DIAGRAM 120V 230V/240V HS-1100/1500/1900 (01–00) Home Find... Go To..
