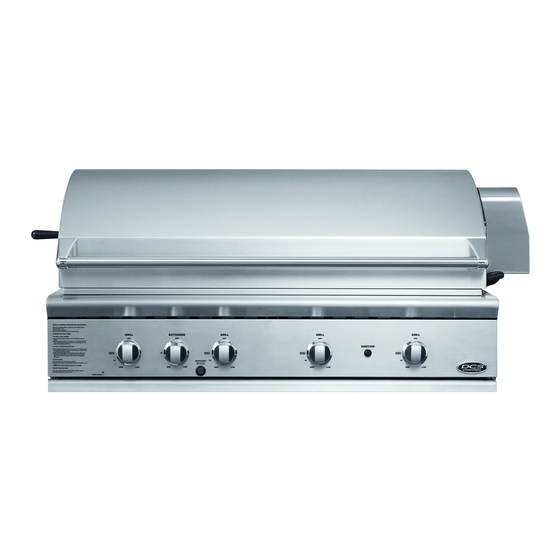

Fisher & Paykel BGB48-BQAR Assembly

Radiant Assembly
Details installing the grease shields and radiant assembly installation.
Installing The Grease Shields
The grease shields (2 per burner) help deflect any
grease drippings away from the grill burner ports,
preventing the ports from getting clogged. They
come packed with the other accessories, in a
separate bag.
Unpack the grease shields and position them on
the pins above the grill burners (two per burner),
as shown in Fig. 24.
Radiant Assembly Installation:
1. Unpack ceramic rods and remove radiant (Fig.
25) from the unit.
2. Unlock radiant end cap by pushing it up with
two fingers (Fig. 26).
3. Place 18 ceramic rods on the radiant (Fig. 27).
4. Lock radiant end cap (Fig. 28).
5. Place the assembled radiant in the unit (Fig.
29).
https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQAR/User_Guide_BGB48-BQAR/08_Radiant_Assembly
FIG. 24 Grease shields
