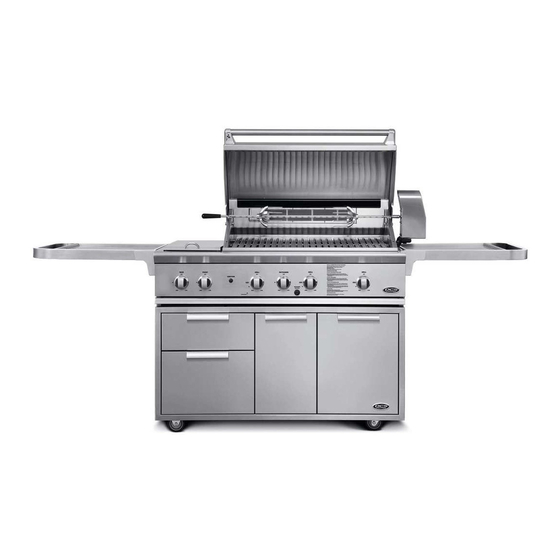

Fisher & Paykel BGB48-BQR Adjustment

Burner Adjustment
Burner adjustment should only be performed by a licenced gas fitter.
Grill Burner Air Adjustment:
Each grill burner is tested and adjusted at the factory prior to shipment; however, variations in the local gas
supply or a conversion from one gas to another may make it necessary to adjust the burners. The flames of the

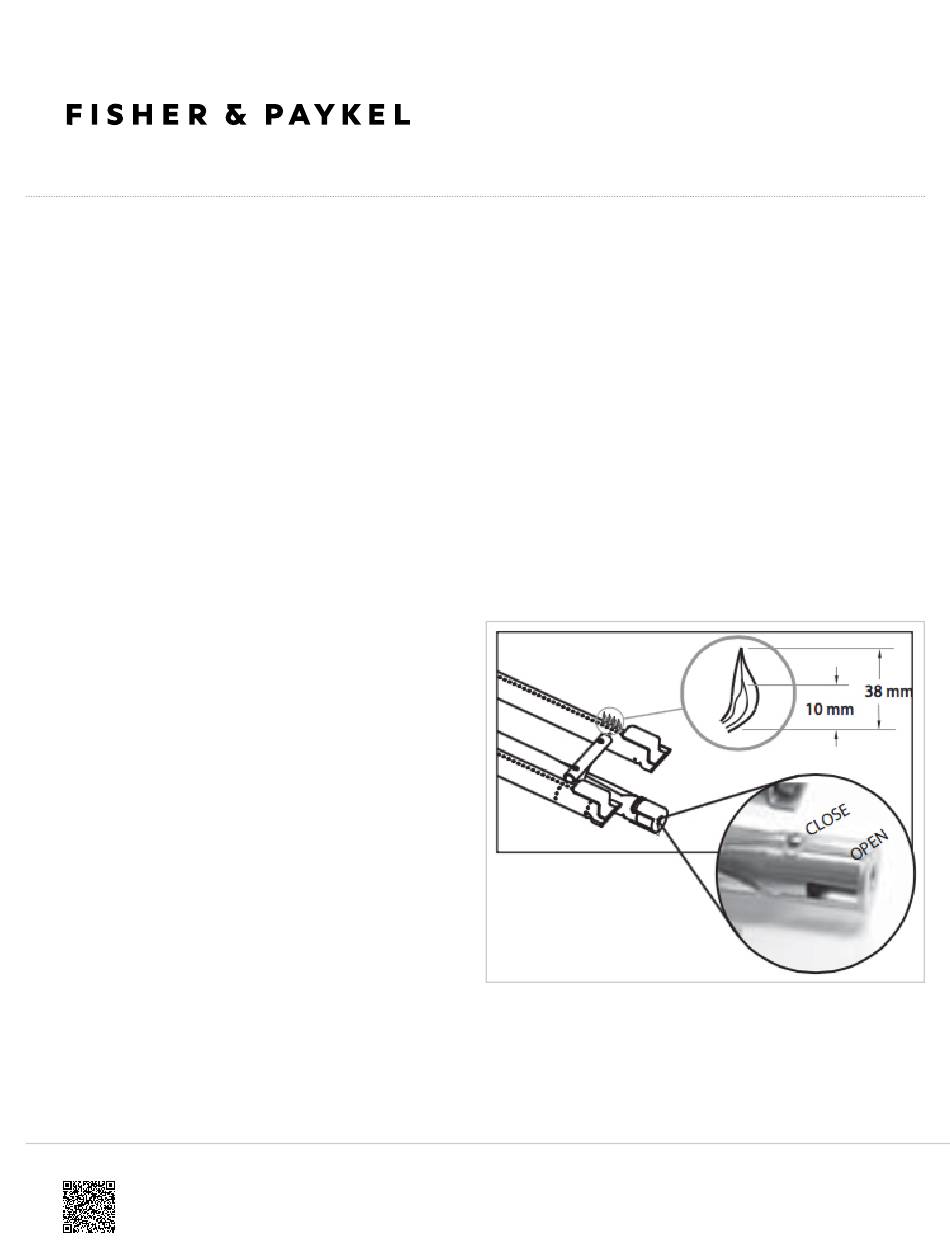

burners (except the rotisserie burner) should be visually checked and compared to that of the drawing in Fig.21.
Flames should be blue and stable with no yellow tips (LPG units may have some yellow tipping), excessive noise
or lifting. If any of these conditions exist, check if the air shutter or burner ports are blocked by dirt, debris, spider
webs, etc. Proceed with air shutter adjustment. The amount of air which enters a burner is governed by a metal
cap at the inlet of the burner called an air shutter. It is locked in place by a screw which must be loosened prior to
lighting the burner for adjustment.
Grill Burner Flame Height:
Before beginning, ensure the grill is OFF and cool.
To access the grill burner air shutters, first remove
the grates, grease shields and radiants from the
firebox, then remove the grill burner using
instructions shown in section 'Care and
maintenance'. With a screw driver, loosen the lock
screw on the face of the air shutter slightly so that
the air shutter can be adjusted.
To Adjust:
1. Be careful as the burner may be very hot.
2. If the flame is yellow, indicating insufficient
air, turn the air shutter counterclockwise to
allow more air to the burner.
3. If the flame is noisy and tends to lift away from the burner, indicating too much air, turn the air shutter
clockwise.
Reinstall the grill burner, ensuring the burner is level. Light the burner and check the flame. If all is okay, remove
the burner (CAUTION - burner may be hot, allow time to cool) and tighten the air shutter screw. If not repeat the
above procedure to readjust the air shutter.
