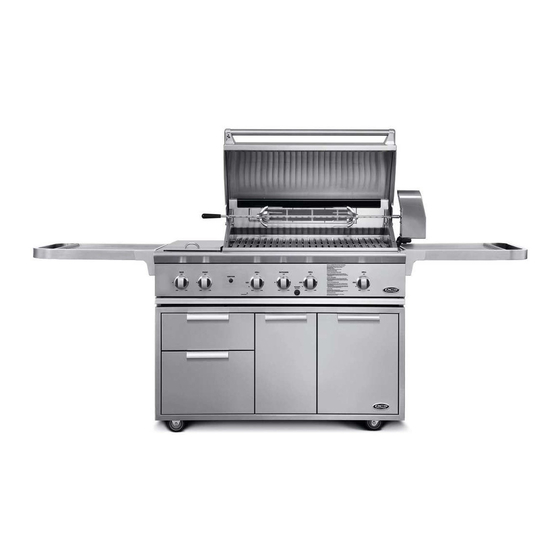

Fisher & Paykel BGB48-BQR Manual

Fisher & Paykel BGB48-BQR Manual

Hide thumbs Also See for BGB48-BQR:

Advertisement

Quick Links

Care & Maintenance
Details how to clean and care for your grill. Please read and practice the following to maintain the quality of your
appliance.
General Advice
• Before carrying out any cleaning or maintenance, make sure that all burners are off, and gas to the appliance
has been shut off at the cylinder valve or shut-off valve.
• Beware of hot surfaces. If you clean surfaces while they are still warm, make sure to wear barbecue mitts for
protection against heat and steam.
• Clean and inspect the grill regularly, following the maintenance schedule below.
• Keep the grill covered when not in use.
Recommended Maintenance Schedule
Before each use...
• inspect the gas supply hose or piping for cracks, kinks, and any sign of abrasion or wear. If you find
evidence of any of these or are in doubt, do not use the appliance until it has been checked by a qualified
gas fitter.
After each use...
• clean the grease tray to prevent grease accumulating, as grease deposits can become a fire hazard.
At the start of each season, or if the grill hasn't been used for several weeks...
• check supply connections for gas leaks. See following page for instructions. If there is any evidence of leaks, do
not use the appliance until it has been checked by a qualified gas fitter.
• inspect the grill burners thoroughly for spider webs and insect nests. If not removed, these could cause a
hazard- ous situation by blocking gas flow to the burners. Gas could then accumulate in the front of the grill and
catch on fire (called a 'flashback' fire). See further below for instructions on removing the grill burners for
cleaning.
• check the grill burners for clogged burner ports and any other sign of debris and blockage, clear if necessary.
https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance
Updated: Mon, 17 Aug 2020 01:44:59 GMT
Powered by
1

Advertisement

loading

Summary of Contents for Fisher & Paykel BGB48-BQR

  • Page 1 (called a ‘flashback’ fire). See further below for instructions on removing the grill burners for cleaning. • check the grill burners for clogged burner ports and any other sign of debris and blockage, clear if necessary. https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
  • Page 2 When to check for leaks • At the start of each season, or if the grill hasn’t been used for several weeks. • Every time the LPG cylinder is replaced (if applicable). https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
  • Page 3 ▪ Do not use the grill until all connections have been checked and do not leak. https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT...
  • Page 4: Battery Replacement

    3. Pull battery downwards (This may require use of pliers). 4. Re-install upward and push to snap - Fig. 48. 5. (Polarity is shown in Fig. 49). Battery condition should be checked at least once a year. https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
  • Page 5: Grill Grates

    Grill grates must be re-seasoned after cleaning to prevent rust stains. Ceramic Rods: It is not necessary to remove the ceramic rods for cleaning. They burn themselves clean during the next cooking https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
  • Page 6 Before installing a heat shield. A close-up photo shows pins' locations in the back wall underneath First remove grates and radiant trays inside the burner box. hangers. Other two pins are located in the front wall. https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
  • Page 7 2. Slowly begin pulling the drip pan out by its handle, taking care not to spill any grease on the ground or https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT...
  • Page 8 4. Place the griddle on the centre grill rack, light the burner and turn the control knob to a medium setting. Turn the heat off when the oil begins to smoke. Allow the griddle to cool. https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT...
  • Page 9: Stainless Steel

    Keep grill covered when not in use. Side Burner Ignitors: Wipe with a water dampened cotton swab. Be careful not to damage the ignitor (see Fig. 50). https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
  • Page 10 FIG. 51 6. hole in the front (Fig. 54). 7. Angle the burner sideways and lift out. FIG. 52 FIG. 53 https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
  • Page 11: Grill Burner Cleaning

    To Replace The Grill Burners After Cleaning 1. With the burner held at a 45 degree angle front to back, lower each grill burner back into place, ensuring that the https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
  • Page 12 DANGER! It is extremely important to center the burner onto the injector properly before lighting the grill to prevent a fire hazard or explosion. Remove drip pan to view connection https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
  • Page 13 After cleaning, it is important to make sure the location pins on the bottom side of the port ring are properly aligned with the corresponding holes in the base. Incorrect https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT...
  • Page 14 (see Fig. 59). FIG. 59 https://producthelp.fisherpaykel.com/au/Grill/Built-In_Grills/BGB48-BQR/User_Guide_BGB48-BQR/13_Care_and_Maintenance Updated: Mon, 17 Aug 2020 01:44:59 GMT Powered by...
