rako RAK-LINK 1GPK Installing

Installing a RAK-LINK 1GPK
For programming information:
For further installation information:
For further installation information:
For further product information:

Removing the old RAK-LINK power supply

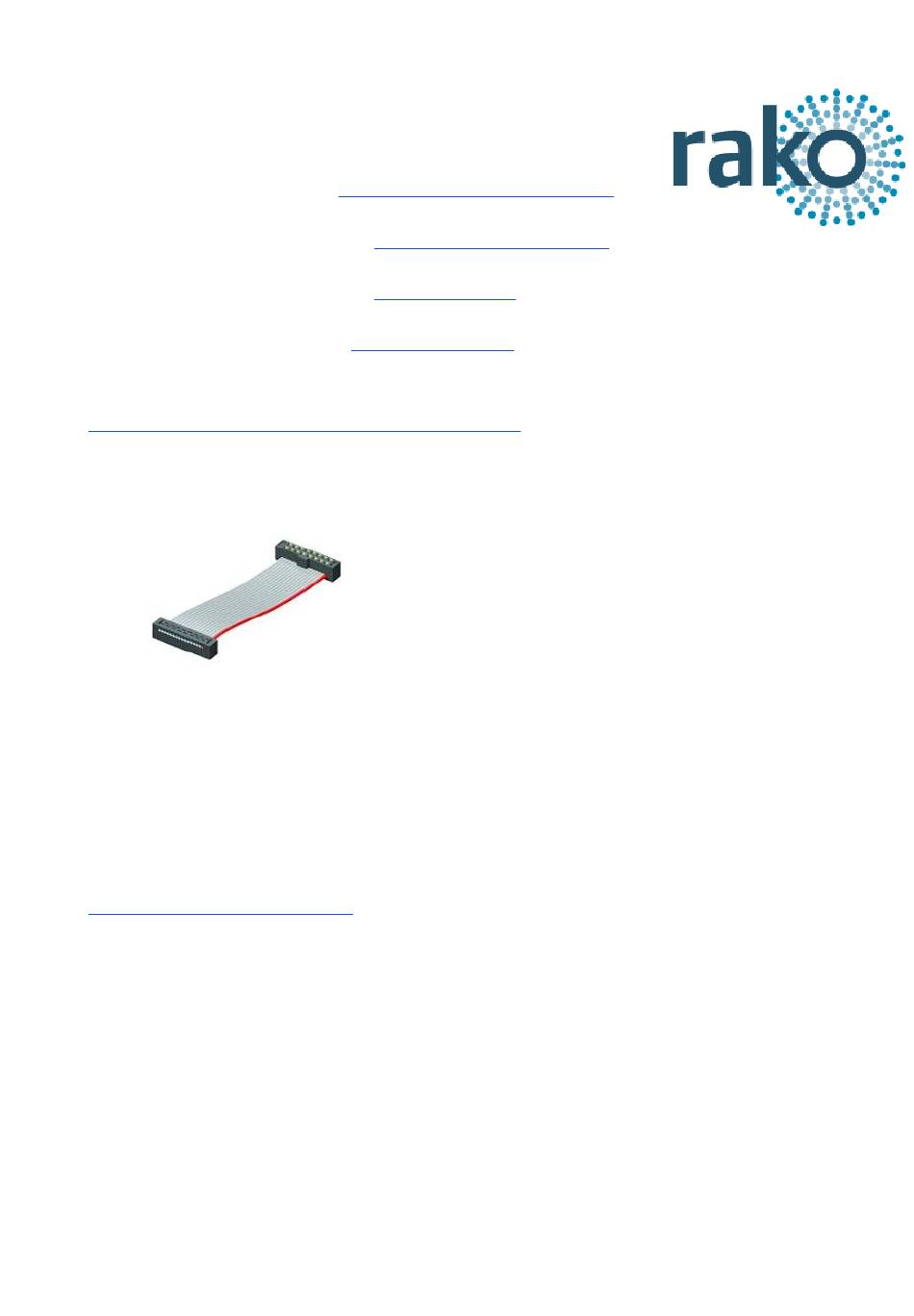

- Remove ribbon cable and set aside.
- Remove the top of the metal casing complete with RAK-LINK top board and set
aside. The whole "top layer" of the RAK-LINK should now be removed.
- On the bottom layer: unscrew old power supply, RAK-LINK board remove RJ45
connection and input cables for power supply.

Installing RAK-LINK-1GPK

- Screw new RAK-LINK PSU with adaptor board in the same place as the old one.
- When installing the replacement PSU make sure the 4 pin male connector is facing
towards the RAK-LINK "bottom board" (the circuit board with the RJ45 connector).
Similarly the 2 pin male connector facing towards the power cables
- Next connect the RAK-LINK "bottom board" to the power supply and the input
cables into the power supply as labeled on the green border
RAK-LINK-1GPK
Wired system Programming Guide
Wired RAK Application Sheet
RAK-LINK manual
RAK-LINK datasheet
Manual Version 1.0.0
