rako RAIPC Installation And Operating Instructions

RAIPC
Rako Intelligent Partition Control Module – Installation and Operating Instructions.
The Rako RAIPC is an intelligent partition control unit designed for use
rooms that are divisible into smaller rooms by demountable partitions.
The unit accepts inputs from up to 2 partitions giving a total of 3
individual rooms or combinations thereof. (see fig 1). With local control
panels located in each of the rooms and with both partitions closed, each
of the control panels will control their respective rooms. Opening the
partition between rooms 1 and 2 will allow the scenes in both rooms to be
selected from either of the control panels. This follows for the other room
combinations as shown in fig 1 below.
Initial configuration is achieved using the RASOFT programming software.
Partition 1
(Closed)
Room 5
(Selects scenes
in room 5 only)
Partition Combination 1
Partition 1
(Open)
Room 5
(Selects scenes
in rooms 5 and 6)
Partition Combination 2
Partition 1
(Closed)
Room 5
(Selects scenes
in room 5 only)
Partition Combination 3
Partition 1
(Open)
Room 5
(Selects scenes
in rooms 6, 7 and 8)
Partition Combination 4

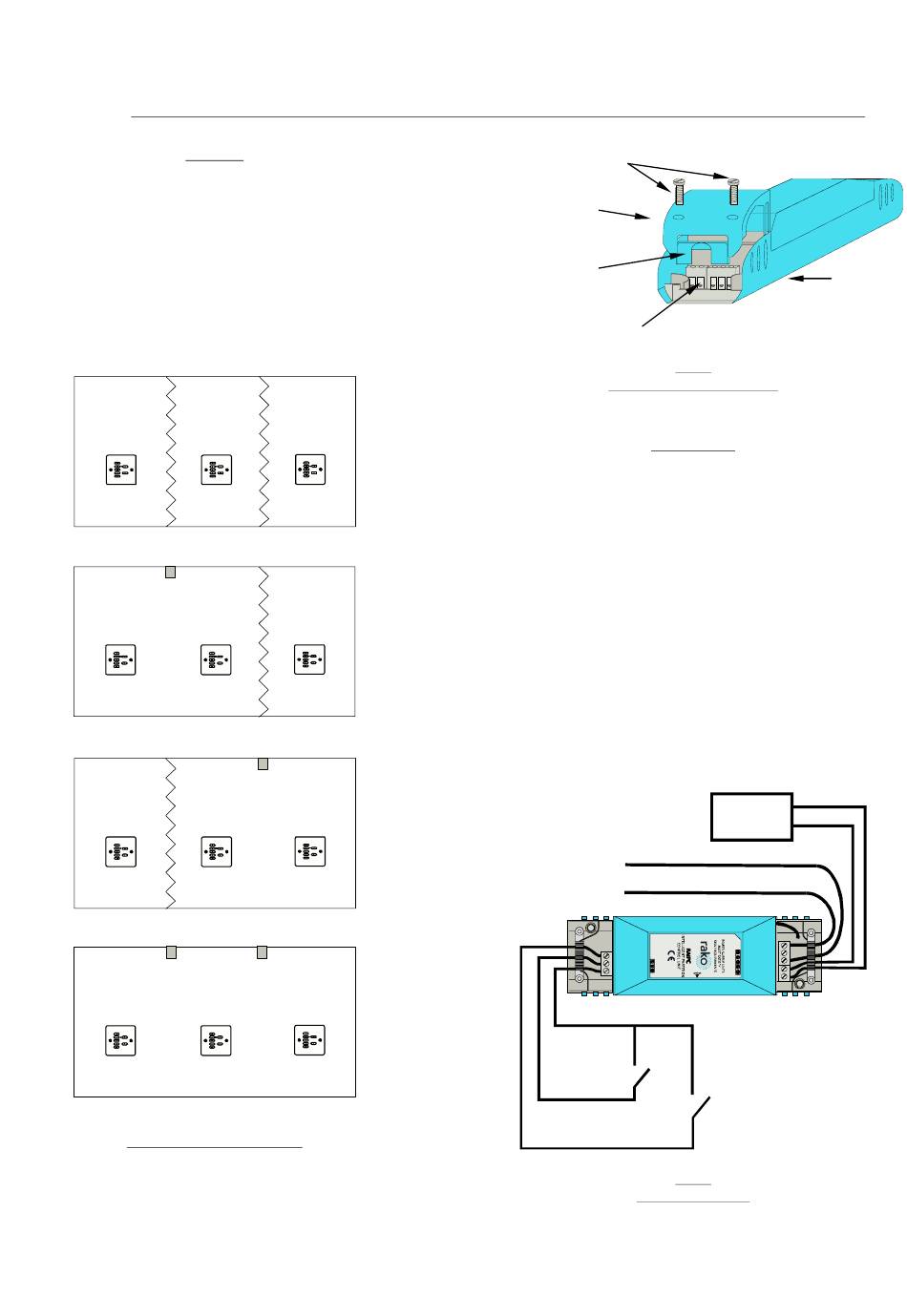

Fig 1 – Room Combinations
Issue 1 – September 2003
General
Partition 2
(Closed)
Room 6 Room 7
(Selects scenes (Selects scenes
in room 6 only) in room 7 only)
Partition 2
(Closed)
Room 6 Room 7
(Selects scenes (Selects scenes
in room 7 only)
in rooms 5 and 6)
Partition 2
(Open)
Room 6 Room 7
(Selects scenes
(Selects scenes
in rooms 6 and 7) in rooms 6 and 7)
Partition 2
(Open)
Room 6 Room 7
(Selects scenes (Selects scenes
in rooms 6, 7 and 8) in rooms 6, 7 and 8)
Fixing Screws
Terminal
Cover
Protective
Insert
Ext aerial &
PSU Terminals
Front View of Components
Installation
Before commencing installation of the Rako RAIPC interface module first
read this instruction manual carefully.
Rako Controls Ltd accepts no responsibility for any damage or injury
caused by incorrect installation of a Rako product.
The RAIPC is designed for applications where a room is to be divisible
into smaller rooms as shown opposite. The unit has 2 volt free switched
inputs indicating the status of the partitions. Depending on the
installation and customer preference, the switch inputs can come from a
variety of devices from manually operated key-switches to proximity
switches located on the partitions.
The RAIPC unit requires the use of the RAPSU external power supply. Or
other 12V d.c. power supplies conforming to SELV requirements.
Connect the power supply and the volt free switch inputs as shown in Fig.
3 below.
The RAIPC is supplied complete with 2 external aerials. For best
performance these should be fixed at an angle of 90
other.
To be mounted at 90° to the direction of the receivers
To be mounted at 90° to the direction of the receivers
SWITCH 2
Connection Detail
Fig 2.
or greater to each
0
RAPSU
+12V DC
power
0V
Supply unit
Receive Aerial
Transmit Aerial
Tx
Gnd
SW 1 Rx
SW 2 0v
Common
+12v
SWITCH 1
Fig 3.
Interface
Housing
