Instruction Manual
RAK-LINK
Wired RAK Connection Unit
2025
Version 3.2.6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAK-LINK and is the answer not in the manual?

Questions and answers

Summary of Contents for rako RAK-LINK

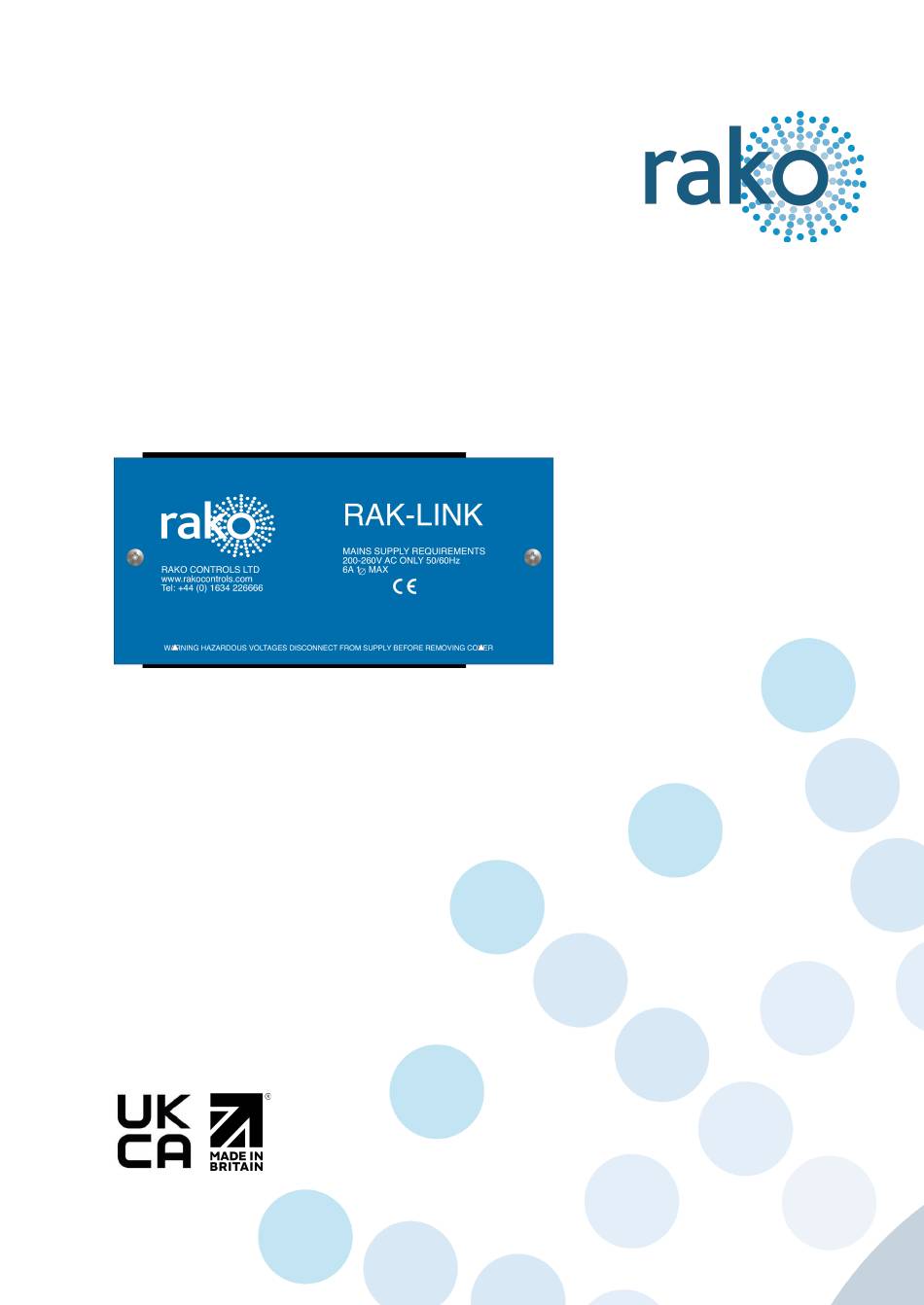

  • Page 1 Instruction Manual RAK-LINK Wired RAK Connection Unit 2025 Version 3.2.6...
  • Page 2: Table Of Contents

    1.0 What is the RAK-LINK?.......................3 2.0 RAK-LINK Overview......................3 3.0 Installing the RAK-LINK......................4 4.0 Terminating the RAK-LINK....................7 5.0 Programming the RAK-LINK....................7 Appendix 1: RAK-LINK diagnostics..................8 Appendix 2: Example Systems Diagrams................9 RAK-LINK Instruction Manual | Page 2 Manual Version 3.2.6...
  • Page 3: What Is The Rak-Link

    The RAK-LINK supports up to two CAT5 or CAT6 cables via the punch-down connector and has three RJ11 ports that can connect Rako Wired accessories. The power supply on the RAK-LINK is capable of powering up to 40 Rako Wired devices via the punch-down connector.
  • Page 4: Installing The Rak-Link

    ● The overall safety of any system incorporating this equipment is the responsibility of the assembler of the end system. ● A qualified electrician must install the Rako module. Ensure all wiring follows local electrical standards. Use only appropriately rated cables, and secure all connections before powering on.
  • Page 5 Wire the mains supply into the terminal block. Insert the RJ45 cable that links the RAK-LINK to a stack of RAKs. Prepare two remaining screws to be slotted into the top tray. RAK-LINK Instruction Manual | Page 5 Manual Version 3.2.6...
  • Page 6 Punch down the CAT5 to the RWN to complete the installation. If required, connect up to three Wired accessories (for example, the WK-HUB) to the RJ11 ports. RAK-LINK Instruction Manual | Page 6 Manual Version 3.2.6...
  • Page 7: Terminating The Rak-Link

    The termination required depends on the position of the RAK-LINK within the System. No Term - Both Jumpers removed Used when the RAK-LINK is not at the end of line. This is usually identifiable by two cables being punched down to the RAK-LINK.
  • Page 8: Appendix 1: Rak-Link Diagnostics

    RAK-LINK put into polling mode with no network attached or CAN bus short circuit. Once a fault has been cleared, power cycle the RAK-LINK to clear the LED diagnostics. Caution should be exercised while using this table for diagnostic purposes. The suggested possible cause is the most likely of many possible outcomes but is not a guaranteed solution.
  • Page 9: Appendix 2: Example Systems Diagrams

    Appendix 2: Example Systems Diagrams Radial Wired System The diagram below shows a RAK-LINK in a Wired radial System. RAK-LINK Instruction Manual | Page 9 Manual Version 3.2.6...
  • Page 10 STAR Wired System The diagram below shows a RAK-LINK in a Wired STAR System. RAK-LINK Instruction Manual | Page 10 Manual Version 3.2.6...
