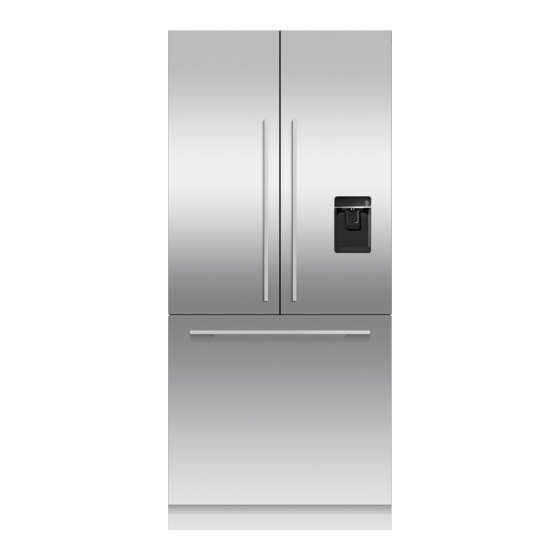

Fisher & Paykel RS36A80U1 Manual

Pre-Aligning Your Product

• It is important that all four corners of the appliance is supported firmly onto the floor to eliminate

• Installing the appliance on a soft, uneven, or not level floor may result in twisting of the product

• Raise the appliance using an 7/16" (11 mm) hex socket or 3/16" (4mm) hex Allen key. One turn

1. Using the front and rear adjustment nuts (A), level

the appliance back to front until all tabs located on

the installation aiders are in contact with adjacent

cabinetry.

https://producthelp.fisherpaykel.com/us/Cool/Integrated_Refrigeration/French_Door/With_Ice_and_Water/80_%2F%2F_84_in...

any movement.

and poor door sealing.

of height adjusting nuts is equivalent to 1/16" (1 mm) height travel

Note: Maximum level travel is 13/16" (20 mm).

Updated: Wed, 12 Apr 2023 10:42:19 GMT

Table of Contents

Do you have a question about the RS36A80U1 and is the answer not in the manual?

Page 1 Pre-Aligning Your Product IMPORTANT! • It is important that all four corners of the appliance is supported firmly onto the floor to eliminate any movement. • Installing the appliance on a soft, uneven, or not level floor may result in twisting of the product and poor door sealing.
Page 2 IMPORTANT! Ensure the appliance makes light contact with all tabs on installation aiders. Difficulties in achieving final alignment can be caused by: • Failure to make contact with the installation aiders • Too much pressure on the installation aiders causing tabs to bend 2.
