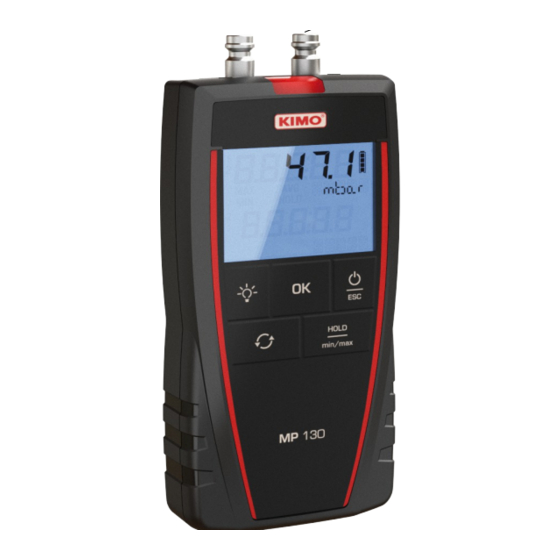

Impermeability special manometer for gas
DESCRIPTION OF THE DEVICE
Backlight key
Male plug
Tap with 2 valves
and 3 channels
Rubber pump
Select key
network
MP 130
OK key
On/Off/Esc key
Hold/min/max key
Female plug
Female connector
Male connector
Advertisement
Table of Contents
Related Manuals for Kimo Instruments MP 130
Summary of Contents for Kimo Instruments MP 130
- Page 1 Impermeability special manometer for gas network MP 130 DESCRIPTION OF THE DEVICE OK key On/Off/Esc key Backlight key Hold/min/max key Select key Male plug Female plug Female connector Tap with 2 valves and 3 channels Rubber pump Male connector...
- Page 2 PRIOR OPERATIONS FOR THE MP 130 USAGE WITH ITS SEAL KIT Connect the most adapted conical adaptor to the tube cross-section, to the male connector of the seal kit, and the female ➢ connector to the positive input of the manometer, as described below : Isolate the installation : Close the counter tap and block the connectors provide at the installation.
- Page 3 PERFORM AN AUTOZERO During a measurement : Disconnect the pressure tubes. ● Press on « OK ». ➢ « AutoZ » displays on screen and the device performs an autozero. At the end of the autozero, the device returns to the measurement display. FREEZE THE MEASUREMENT During a measurement : Press on « Hold/min/max »...
- Page 4 Adjust the auto shut-off The device is on and displays the measurement. Press on « Select » until « AUTO OFF » blinks on screen. ➢ Press on « OK ». ➢ The time before device auto shut-off blinks on screen. Press on « Select » to select the time before device auto shut-off : 15, 30, 45, 60, 75, 90, 105, 120 or OFF. ➢...
