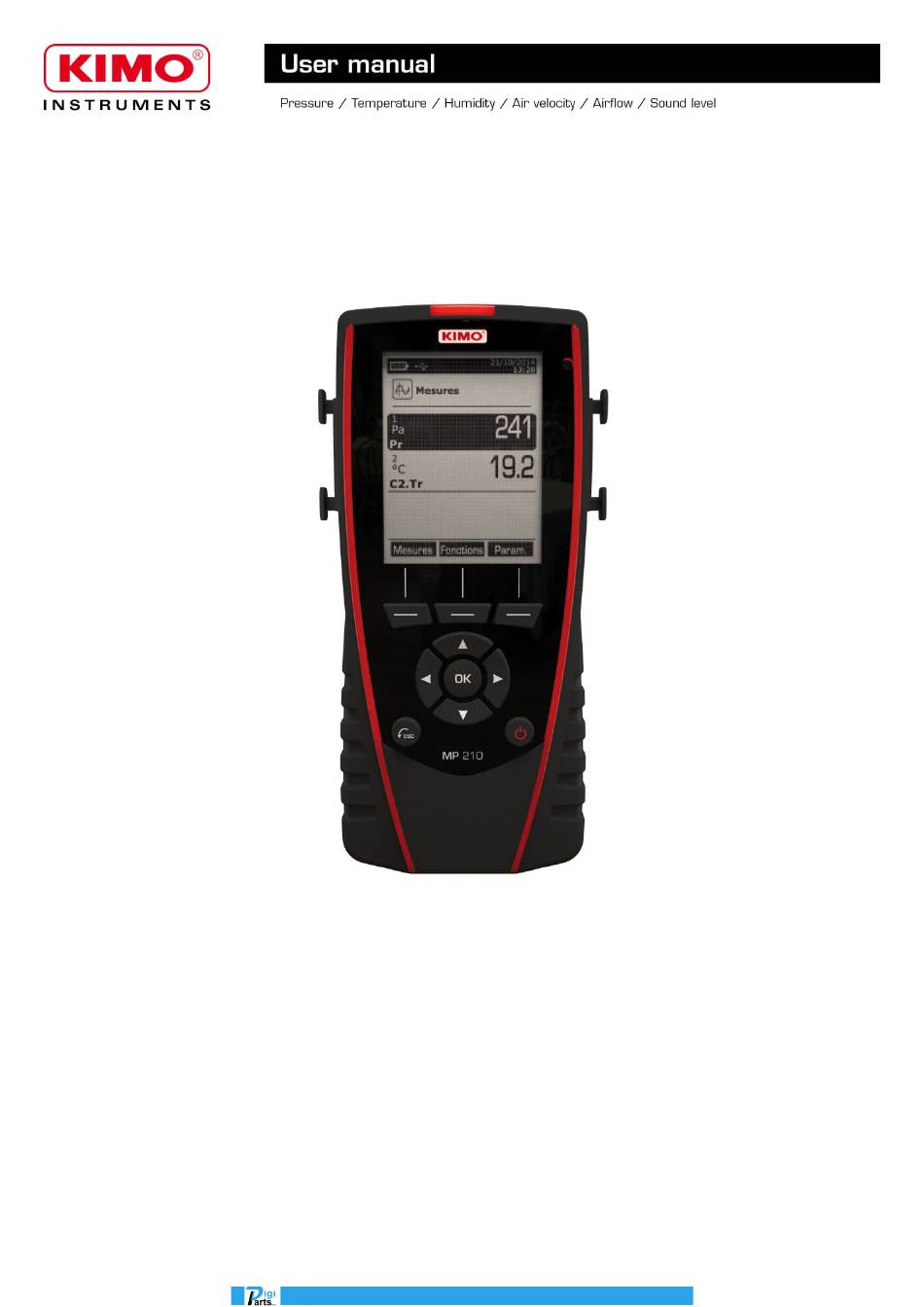

- Page 1 MP 210 Thermo-Anemo-Manometer Ihr Schweizer Industriepartner www.digiparts.ch info@digiparts.ch...
-
Page 2: Table Of Contents
Table of contents 1. Presentation............................5 1.1 Instrument description........................5 1.2 Keys description..........................5 1.3 Remove battery..........................6 2. Connections of the MP210........................7 2.1 Main features..........................7 2.2 Connections..........................7 3. Information............................9 4. Set the instrument..........................10 4.1 Set language..........................10 4.2 Modify date and time........................10 4.3 Activate or deactivate the beep key....................10 4.4 Set auto-off..........................10... - Page 3 8.3.4 Atmospheric pressure......................24 8.4 Gas leak............................24 8.4.1 Unit............................24 8.5 CO/temperature probe........................25 8.5.1 Unit............................25 8.5.2 Alarm...........................25 8.6 Tachometry..........................25 8.6.1 Unit............................25 8.6.2 Type............................25 Ihr Schweizer Industriepartner www.digiparts.ch info@digiparts.ch...
- Page 4 Ihr Schweizer Industriepartner www.digiparts.ch info@digiparts.ch...
-
Page 5: Presentation

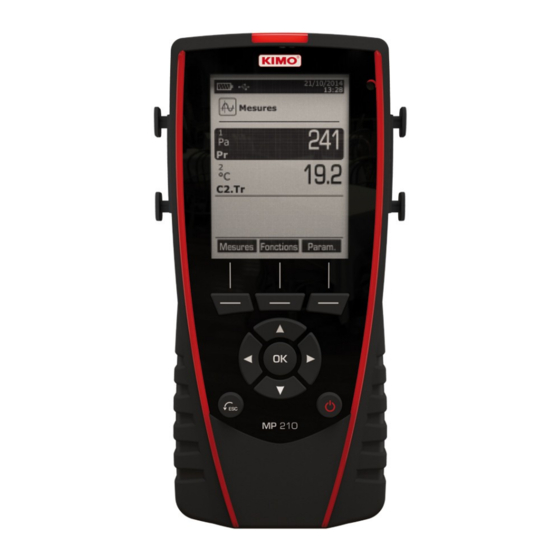

1.1 Instrument description Battery Date and time level Dataset menu Measurement menu Information menu Configuration menu Home screen Function keys OK button Navigation arrows ESC button On/Off button 1.2 Keys description ➢ Left key: allows to navigate from left to right ➢... -
Page 6: Remove Battery
1.3 Remove battery ➢ Turn off the instrument. ➢ Turn it over. ➢ Press the red button while sliding down the battery. Presentation Ihr Schweizer Industriepartner www.digiparts.ch info@digiparts.ch... -
Page 7: Connections Of The Mp210
Thermocouple module: • Allows to measure temperature on Tc1, Tc2, Tc3 and Tc4 channels with wired thermocouples K, J, T or S probes ended with a male miniature connector Connections of the MP210 Ihr Schweizer Industriepartner www.digiparts.ch info@digiparts.ch... - Page 8 Wireless communication between probe and instrument with automatic recognition after power-up. Wireless probes shall be located near the instrument for initial recognition. Connection between HQ210 and wireless probes must be established. Connections of the MP210 Ihr Schweizer Industriepartner www.digiparts.ch info@digiparts.ch...
-
Page 9: Information
“Information” menu allows to view information about the instrument, probes and module connected to the “Wireless probe”, “Mini-DIN 1”, “Mini-DIN 2” or “Module” connections. To enter in this menu from home screen, select the “Information” menu with the arrow keys then press OK. Available information for probes and module is: Type of probes and module •... -
Page 10: Set The Instrument
The instrument is on. ➢ With the arrow keys, go to “Configuration” menu. ➢ Press OK.. 4.1 Set language “Configuration” screen is displayed. ➢ Select “Language” with the arrow keys then press OK. Available languages are displayed. ➢ Press Up and Down arrows to select the required language: FRA, ENG... ➢... -
Page 11: Set Backlight
4.5 Set backlight “Configuration” screen is displayed. ➢ Select “Backlight” with arrow keys then press OK. ➢ Select the backlight level between 1 and 9 or “Auto” with Up and Down keys. ➢ Press OK to validate. 4.6 Set security This part allows to activate or deactivate a security code. -
Page 12: Set The Probes
5.1 Use of the wire probes and modules Connect a probe • ➢ Connect the mini-DIN cable on the mini-DIN connection of the probe. ➢ Connect the mini-DIN cable with the probe on the instrument. A beep indicates that the operation has been correctly performed. Arrow in front of the user Arrow in front... -
Page 13: Use Of Wireless Probes
Use of wireless probes Add a wireless probe • With arrow keys, go to On the bottom of the Turn on the wireless In “Information” menu go to “Information” menu screen press the probe and keep it press “Wireless probe” then press then press OK. -
Page 14: Channel Configuration
The channel configuration allows to modify the displaying of the measured parameters. The instrument is on. ➢ With the arrow keys, go to “Measurement”. Press OK. ➢ Press the function key “Channels”. ➢ The different functions of the probe are displayed. IIt is possible from the “Channels”... -
Page 15: Vanes And Hot Wire
Select the size to modify in the list and press OK. • Set the size with arrow keys between 1 and 2500 mm then press OK. • For a K factor*: go to “K factor”, press OK, select the K factor then press OK to validate. ➢... -
Page 16: Delta T
“Débimo” (coefficient: 0.8165) and “Other”. If “Other” is selected, then enter its differential pressure coefficient between 0 and 9.9999. Go to the line “K2 fact.” and press OK to select or unselect the K2 factor. ➢ K2 factor is a coefficient which is applied to modify the flow rate only for the rectangular or circular surfaces. 6.3 Delta T Delta T is a function which allows to define a temperature difference calculated between two temperature channels of the same type. -
Page 17: Start And Record Datasets
The instrument in on. ➢ Select with arrows keys “Measurement” menu. Press OK. ➢ ➢ Select with arrows keys the measurement in which the dataset will be performed. Press “Functions” key then select “Dataset” with arrow keys and press OK. ➢... -
Page 18: View The Recorded Datasets
Press the function key “Validate” when the duration is set. ➢ Press OK on the line “Interval”. ➢ Go to “min” with the arrow keys then press OK, set the duration with arrow keys then press OK. ➢ ➢ Perform the same procedure for the seconds. Press the function key “Validate”... -
Page 19: Automatic Average
➢ Select the letters with arrow keys then press OK. To go from the lower case keypad to the upper case keypad then to the numeric keypad: press the function key: To delete a letter press the function key “Delete”. ➢... -
Page 20: Comax
Go to “min” with the arrow keys then press OK, set the duration with arrow keys then press OK. ➢ ➢ Perform the same procedure for the seconds. ➢ Press the function key “Validate” when the interval is set. Press OK to start the measurement. ➢... -
Page 21: Setting Of Measurement Parameters
The instrument is on. ➢ Go to “Measurement” menu with the arrow keys and press OK. ➢ Select the measurement to set with the arrow keys. Press the function key “Params”. ➢ The different parameters are displayed. ➢ For all probes and modules, it is possible to modify the channel number. Select “Channels”... -
Page 22: Alarm
8.1.4 Alarm Temperature: Go to the line “Temp.alarm” and press OK. ➢ Select “High alarm” and/or “Low alarm” by pressing OK. ➢ It is possible to set the high and low thresholds. Go to the line “High threshold” and press OK. ➢... -
Page 23: Vane Probe And Hotwire Probe
8.3 Vane probe and hotwire probe 8.3.1 Unit Air velocity: ➢ Go to the line “Air velocity” and press OK. ➢ Select with the arrow keys the required unit: m/s, fpm, km/h or mph. ➢ Press OK to validate the unit selection. Temperature: Go to the line “Temperature”... - Page 24 8.5 CO/temperature probe 8.5.1 Unit Temperature: Go to the line “Temperature” and press OK. ➢ Select the required unit: °C or °F ➢ ➢ Press OK to validate the unit selection. 8.5.2 Alarm Go to the line “CO Alarm CO” or “CO2 Alarm” and press OK. ➢...
