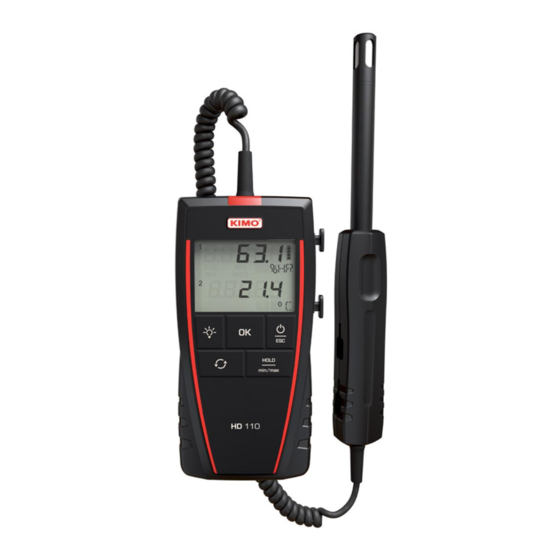

DESCRIPTION OF THE DEVICE

OK key
Backlight key
Select key
PERFOM A MESUREAMENT
Turn on the device by pressing on "On/Off/Esc".
➢
The device displays its name "HD110" then the measured values.
Put the probe to the required location.
➢
The device displays the temperature and hygrometry measurements.
Press "OK".
➢
The device displays the dew point measurement with the temperature measurement.
Press again on "OK".
➢
The device displays the dew point measurement with the hygrometry measurement.
Thermo-hygrometer
HD110
Ihr Schweizer Industriepartner
On/Off/Esc key
Hold/min/max key
Screen 1
38.3
% RH
20.5
OK
www.digiparts.ch
info@digiparts.ch
Screen 2
OK
20.5
°C
5.8
°C
°Ctd
5.8
°Ctd
OK
38.3
% RH
Screen 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kimo Instruments HD110

Summary of Contents for Kimo Instruments HD110

  • Page 1 Screen 1 Screen 2 Turn on the device by pressing on “On/Off/Esc”. ➢ 38.3 20.5 The device displays its name “HD110” then the measured values. % RH °C Put the probe to the required location. ➢ 20.5 The device displays the temperature and hygrometry measurements.
  • Page 2 FIREEZE THE MEASUREMENT During the measurement: Press “Hold/min/max” to freeze the measurement. ➢ “Hold” displays on screen and the measurements are frozen. Press “On/Off/Esc” to exit the hold function. ➢ The device returns to the measurements display. DISPLAY THE MINIMUM AND THE MAXIMUM Once the measurement is frozen: ➢...
  • Page 3 Adjust the auto shut-off The device is on and displays the measurements. Press “Select” until “AUTO OFF” blinks on screen. ➢ Press “OK”. ➢ The time before auto shut-off blinks on screen. Press “Select” to select the time before device auto shut-off : 15, 30, 45, 60, 75, 90, 105, 120 minutes or OFF. ➢...
  • Page 4 Adjust the auto shut-off The device is on and displays the measurements. Press “Select” until “AUTO OFF” blinks on screen. ➢ Press “OK”. ➢ The time before auto shut-off blinks on screen. Press “Select” to select the time before device auto shut-off : 15, 30, 45, 60, 75, 90, 105, 120 minutes or OFF. ➢...
