H3C WX2560H Installation, Quick Start

H3C WX2560H Access Controller Installation Quick Start-6W104
H3C WX2560H无线控制器 快速安装指南-6W104

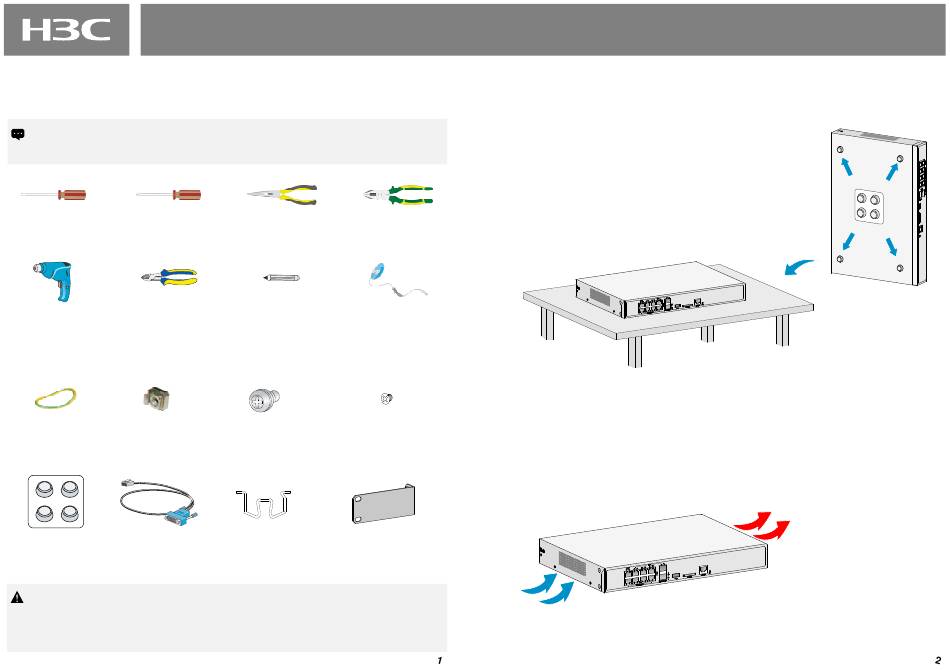

Tool list 工具参考
The installation tools are not provided with the access controller. Prepare them yourself.
设备不随机提供安装工具，请用户根据实际安装需求自己准备安装工具。
Flathead screwdriver Phillips screwdriver
一字螺丝刀 十字螺丝刀
Heat gun Diagonal pliers
热风枪 斜口钳
Introduction to installation accessories 安装附件介绍
Grounding cable Cage nut
(required) (user supplied)
浮动螺母(用户自备)
接地线缆(标配)
Console cable
Rubber feet
(required)
(required)
配置电缆（标配）
脚垫贴（标配）
Wear an ESD wrist strap, and make sure the wrist strap makes good skin contact and is
!
reliably grounded.
操作者需佩戴防静电腕带，确保防静电腕带与皮肤良好接触，并确认防静电腕带已经良
好接地。
Needle-nose pliers Wire-stripping pliers
尖嘴钳 剥线钳
Marker ESD wrist strap
记号笔 防静电腕带
M6 screw M4 countersunk-head screw
(required) (required)
M6 螺钉(标配)
M4沉头螺钉(标配)
Power cord clasp Mounting bracket
(required) (required)
电源卡勾(标配) 挂耳(标配)
Mounting the access controller on a workbench
安装设备到工作台
Make sure the workbench is stable and reliably grounded.
Do not place heavy objects on the access controller. Attach
the rubber feet to the four round holes in the chassis bottom.
Place the access controller on the workbench.
保证工作台的平稳与良好接地，并且不要在设备上放置重物。
粘贴脚垫贴到设备底部，将带脚垫贴的设备平放到工作台上。
Airflow of the access controller 设备的风向设计
Make sure the air inlet and outlet vents are not blocked and the installation site has a good
ventilation system.
请确保设备的进、出风孔不被遮挡，并将设备安装在具有良好通风散热系统的环境中。
Left-to-right airflow.
设备采用左进右出的风道设计。
