DEL Eclipse 1, 2, & 4 Corona Discharge Ozone Generators
Top Endcap-
Remove back
screws only
Top View
Bottom Endcap-
Remove front
screws only
Bottom View

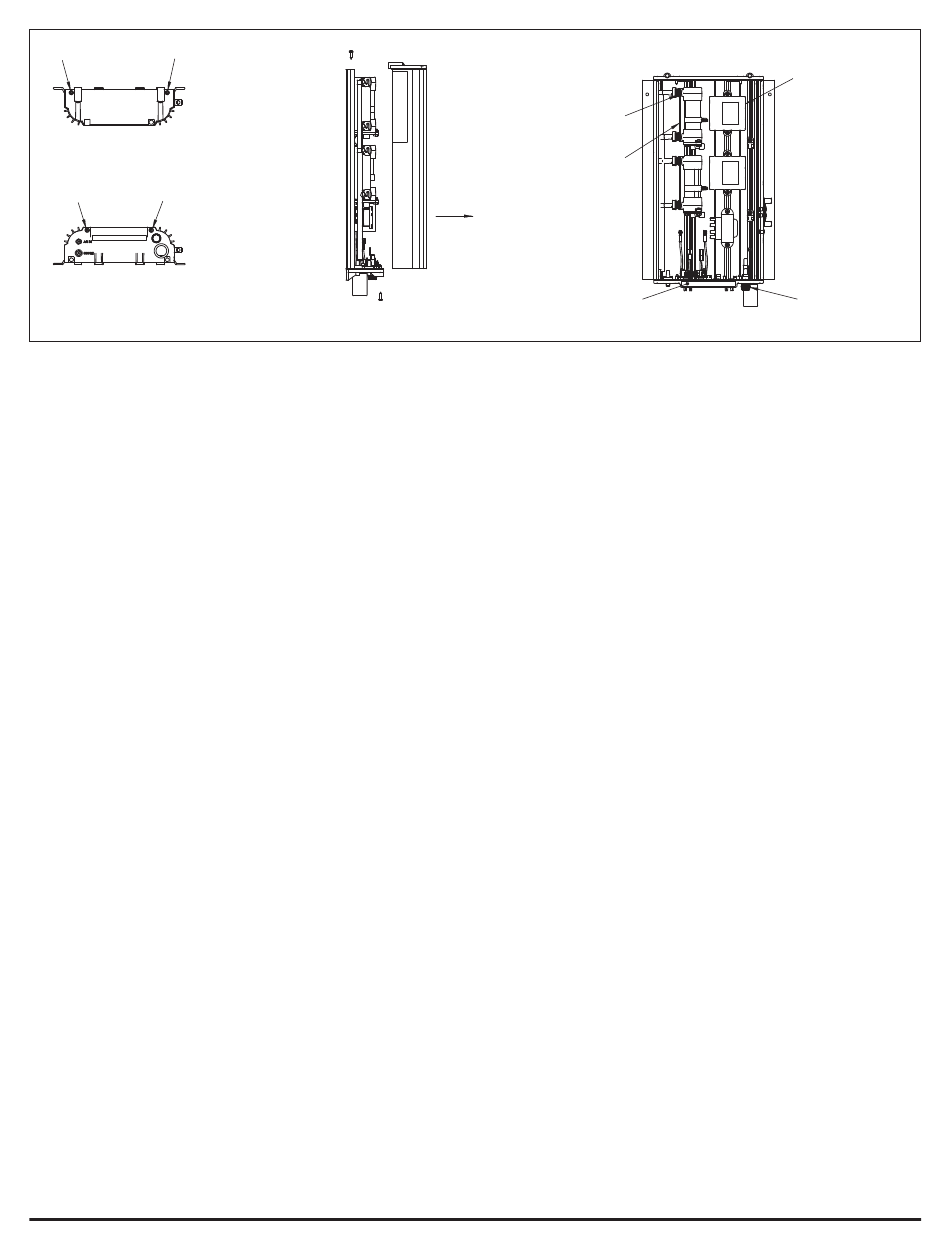

Figure 4 Component Locations (Eclipse-2 Shown).
4D. Trouble Shooting
Knowledge of electrical applications is required for trouble shooting.
Contact a certifi ed electrician if you are unsure of your ability to
service the equipment. Improper servicing will void generator
warranty. If any condition persists contact DEL technical support
(see section 4E)
4D-1
Symptom: "LED Indicator" not lit when pool system
is on.
1. No power to the ozone generator from the power
source:
a. Check circuit breaker at the power distribution box.
b. Check for loose connections or wiring breaks from
the power distribution box to the generator.
c. Fuse in the unit has blown and needs to be replaced.
Fuse is an AGC-1 (1 amp ,1/4" x 1.25" long, glass fuse).
2. G.F.C.I. has tripped.
a. Check power cord and reset G.F.C.I.
4D-2
Symptom: LED Indicator has turned red.
a. This means that the power supply of that specifi c
ozone module is no longer drawing power and needs
to be replaced. Refer to section 4C for instructions on
how to replace the corresponding ozone module.
Note: It is normal for the LED indicators to shine
red for several seconds as the system powers up.
As long as they turn back to green several seconds
after startup.
4D-3
Symptom: Flowmeter not indicating fl ow.
1. Injector not supplying adequate suction.
a. Check pump, fi lters, and skimmers to ensure water is
fl owing through injector.
b. Ensure that there is no debris clogged inside the injector.
2. Tubing is impaired.
a. Check for kinks or clogs.
b. Check for cracks or cuts.
c. Check connections.
d. Check that the check valve is installed with the arrow
pointing towards the injector.
Electrode
Support Nut
Electrode
Support Bracket
(Do not remove)
Remove
Cover
Indicators
e. Be sure that the check valve has not become fouled
with debris. Disconnect the ozone tubing from the
injector. With the pump running, test the end of the
injector with your thumb, and feel for suction. If there
is suffi cient suction without the check valve, replace
the check valve with a new one.
4D-4
Symptom: Ozone tubing becomes yellow/brown and
brittle.
a. The high concentration of ozone created by the
Eclipse family of corona discharge ozone generators,
as well as environmental conditions like UV sunlight
will tend to deteriorate the supplied ozone tubing.
This is normal and acceptable, as long as the tubing
doesn't become cracked and leak. Because of this,
The Ozone Tube Assembly should be replaced every
year.
4D-5
Symptom: Can't get ball to stay in the center of
fl owmeter.
a. The fl owmeter provided is a general tool to setup
fl ow to the ozone generator. Flow will vary depending
on pressures across the injector, and therefore can
be affected by things such as fi lter or strainer load-
ing. The ozone generator's effi ciency is optimized
near the center of the fl ow meter. The Eclipse ozone
generator will still perform well at fl ows above and
below the recommended range. However, the ball
must be moving and not stuck on the bottom of the
fl owmeter.
4E. Contact Information:
For technical assistance :
Call: (805)541-1601, Ext.293 or (800)676-1335, Ext. 293
Email: warrantysupport@delozone.com
Or visit our website: www.delozone.com
4
Power Supply
Ozone
Module #2
Ozone
Module #1
Fuseholder
