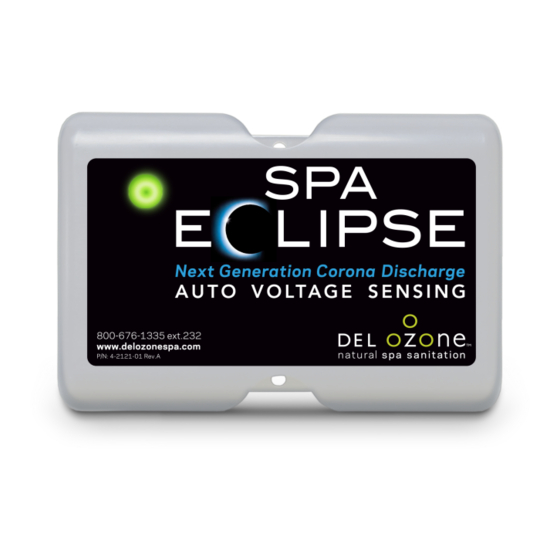

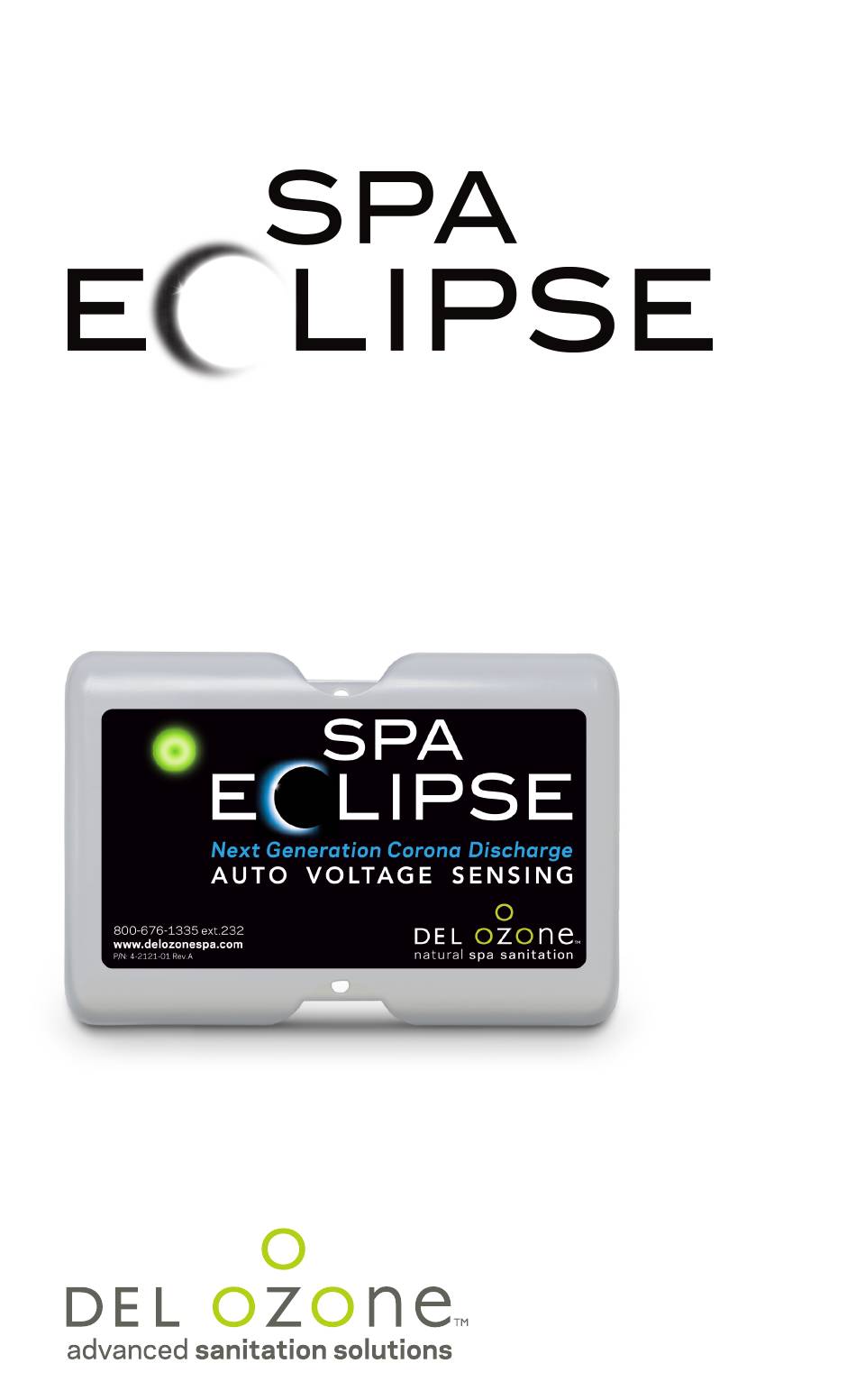

- Page 1 Next Generation Corona Discharge Auto Voltage Sensing Installation Manual 4-2122-01 Rev.B...
- Page 2 • The Spa Eclipse must be mounted indoors or sheltered, under a cover, from natural elements (rain, sun, sprinklers). • Mount the Spa Eclipse so that it is inaccessible to anyone in the spa. • Install a check valve in the tubing between the Spa Eclipse and the vacuum source.
- Page 3 Warranty ....................4 Installation Instructions Mounting a. The Spa Eclipse must be mounted horizontally with ozone tubing connection pointing down. Use both mounting flanges. b. Mount as high as possible within the protected equipment area. Plumbing - DEL Mixing System a.
- Page 4 With the spa filled to the proper level, run the spa controller through several cycles. i. Verify that the green light on the Spa Eclipse turns on and off as required by the controller. ii. Verify that gas is flowing into the injector (there should be no water in the tubing and very small bubbles at the return).
- Page 5 If condensation is present shut off the ozone generator and allow the moisture to be drawn out or dried up prior to servicing. Figure 1: Spa Eclipse Mounting & Connections Mounting Mounting...
- Page 6 After this information is provided, DEL Ozone may release a RETURN GOODS AUTHORIZATION (RGA) NUMBER. After receiving the RGA number the part in question must be returned to DEL Ozone, freight prepaid, with the RGA number clearly marked on the outside of the package. All preauthorized defective parts must be returned to DEL Ozone within thirty (30) days.
- Page 7 Spa Eclipse Installation & Operations Manual PAGE INTENTIONALLY LEFT BLANK...
- Page 8 EPA Estab. No. 071472-CA-001 800.676.1335 o3info@delozone.com www.delozone.com...
