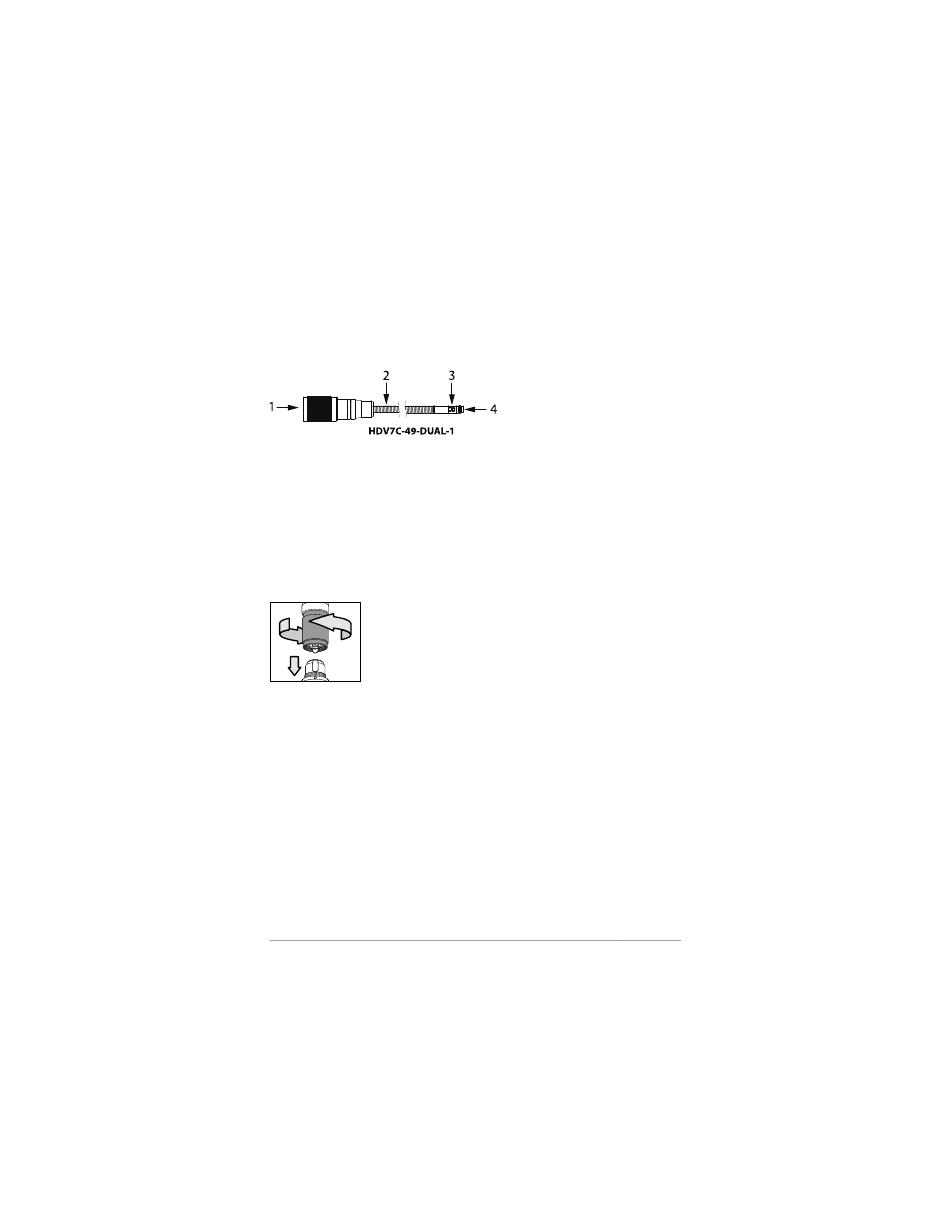

HDV7C-49–DUAL-1 Dual HD Camera Probe
The dual HD camera probe head is 0.19 in. (4.9 mm) in diameter
and its probe length is 3.3 ft. (1 m). The camera resolution is 1280 x
720.
1. HDV700 connector
2. Probe
3. Side view camera and worklights
4. Forward view camera

Connecting the Probe

The steps below explain how to safely connect the probe to the
HDV700 monitor. Always turn the HDV700 power off before replac-
ing the probe.
1. Align the white dot on the probe connector with the white dot on
the HDV700 connector.
2. Plug the probe into the HDV700, ensuring proper alignment and
full insertion.
3. Tighten the collar nut to secure the connection. Do not
overtighten.
