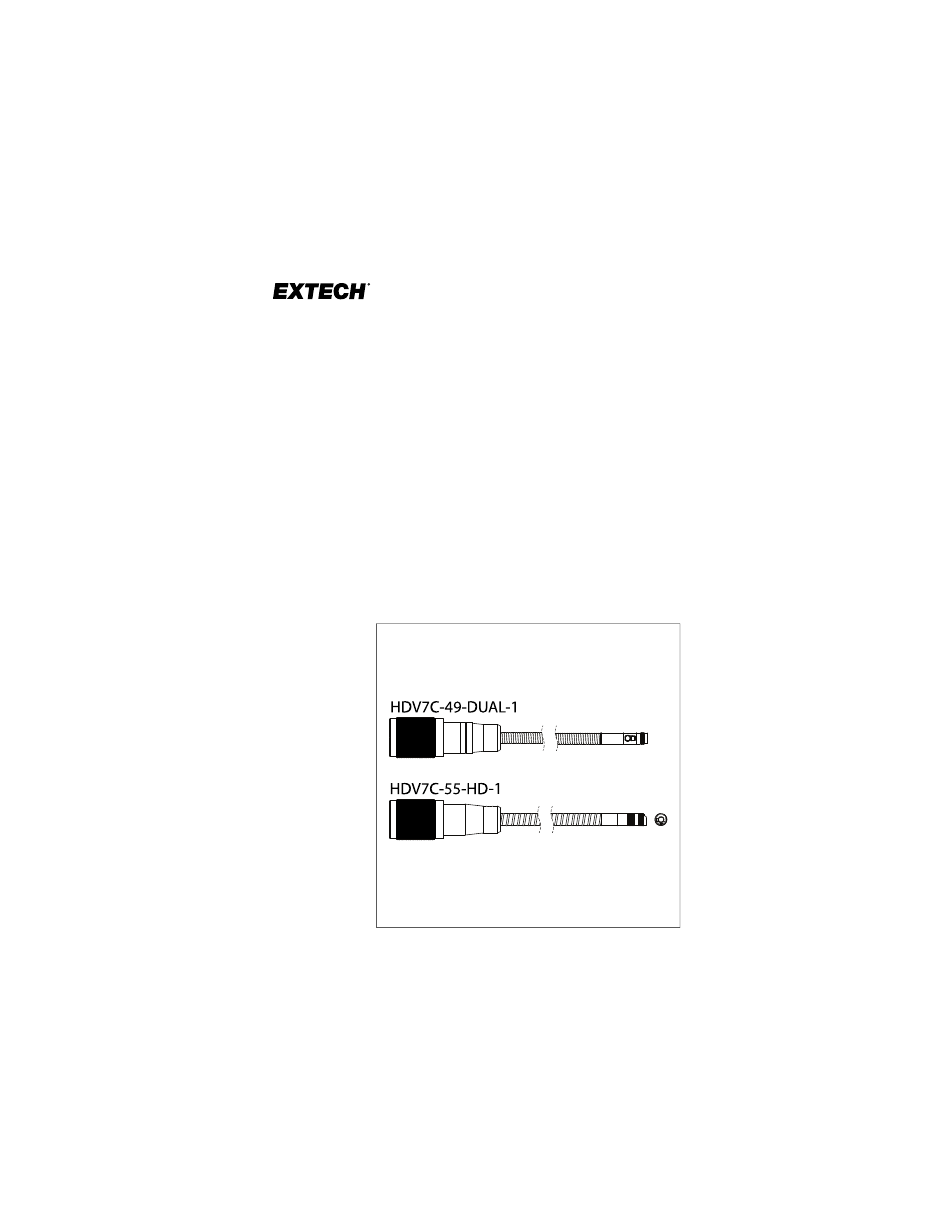

- Page 1 User Manual Camera Probes Models HDV7C-55–HD-1 and HDV7C-49– DUAL-1. For use with the HDV700 VideoScope. GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Probe Descriptions
Introduction The probes covered in this manual are designed for use with the HDV700 High Definition VideoScope. The probes are controlled by the touch-screen icons on the HDV700. The HDV700 user manual and additional translations of this probe manual are available from the support site Probe Descriptions The probes are described in the following sections, see the Specifi- cations and Safety sections for additional information. -
Page 3: Connecting The Probe
HDV7C-49–DUAL-1 Dual HD Camera Probe The dual HD camera probe head is 0.19 in. (4.9 mm) in diameter and its probe length is 3.3 ft. (1 m). The camera resolution is 1280 x 720. 1. HDV700 connector 2. Probe 3. Side view camera and worklights 4. - Page 4 Safety Safety Note Please read and understand all safety cautions before use. CAUTION Do not insert the probe into flammable liquid or gas. This product is designed for industrial use only. It is not intended for use in hu- man or other biological inspection. CAUTION To clean the probe, wipe with a soft cloth dampened with a mild detergent and clean water.
-
Page 5: Specifications
Specifications Camera resolution 1280 (H) x 720 (V) pixels Frame rate 30 frames per second (fps), approximately Probe Diameter 0.2 in. (5.5 mm) for HDV7C-55–HD-1 0.19 in. (4.9 mm) for HDV7C-49–DUAL-1 Field of View 90° Depth of Field 0.4 to 4.0 in (10 to 100 mm) Probe tip length 0.78 in. -
Page 6: Two Year Warranty
Two-Year Warranty FLIR Systems, Inc. warrants this Extech brand instrument to be free of defects in parts and workmanship for two years from date of shipment (a six-month limited warranty applies to sensors and cables). #NAS100129; r. AC/88004/88004; en-US GlobalTestSupply www.
