- Page 1 User Manual Two-Way Articulating Probe Model HDV7C-A2-39-HD-1. For use with HDV700 VideoScope.
- Page 2 Introduction Thank you for selecting the Extech two-way articulation probe with High Definition (HD) camera. The probe is intended for use with the HDV700 VideoScope. Obtain the HDV700 user manual and addi- tional translations of this user manual on the support site: https://support.flir.com Safety Please read and understand all safety cautions before use.

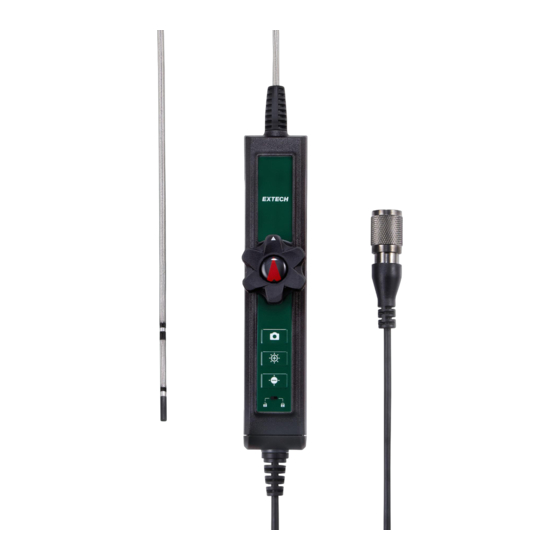

- Page 3 Description 1. Probe 2. Articulating neck 3. Camera head 4. Articulation control dial 5. Image and video recording button 6. Brightness increase button 7. Brightness decrease button 8. Button lock/unlock button 9. Connecting cable to HDV700 10. HDV700 connector #NAS100125; r. AB/88002/88004; en-US...
-
Page 4: Connecting The Probe
Connecting the Probe The steps below explain how to safely connect the probe to the HDV700 monitor. Always turn the HDV700 power off before replac- ing the probe. 1. Align the white dot on the probe connector with the white dot on the monitor connector. -
Page 5: Measurement Considerations
Image and Video Capture Button Short press the Image and Video Capture button (5) to capture a still image. Long press to start or stop video recording. Images and videos are stored on the micro SD card. The HDV700 user manual provides detailed information regarding media management. -
Page 6: Storage And Maintenance
Storage and Maintenance • To clean the probe, wipe with a soft cloth dampened with a mild detergent and clean water. Do not use abrasive detergents. Do not use corrosives or solvents to clean the probe. Use a high quality lens cleaning fluid and a lint-free swab to clean the cam- era and worklight lenses. -
Page 7: Two Year Warranty
Liquids approved for probe Brake and transmission fluid, diesel fuel, un- submersion leaded gasoline, engine oil, and CPC hy- draulic oil (46AWS) Ingress protection Probe tip and body: IP 67 (IEC 60529) Protected from submersion in water up to 3.3 ft (1 m) for 30 minutes maximum. - Page 8 #NAS100125; r. AB/88002/88004; en-US...
