Summary of Contents for Contour 60EF3
- Page 1 User Guide...
-
Page 2: Box Contents

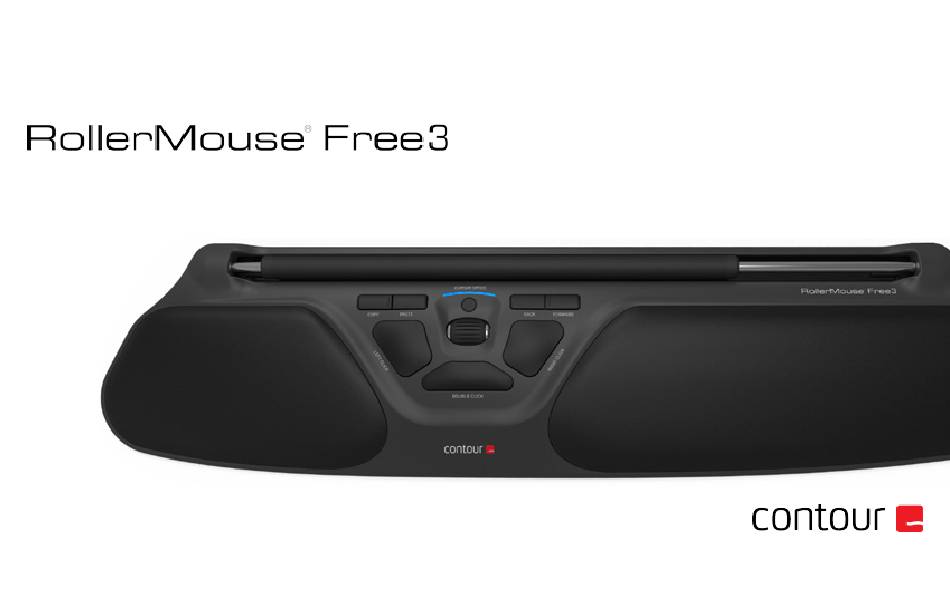

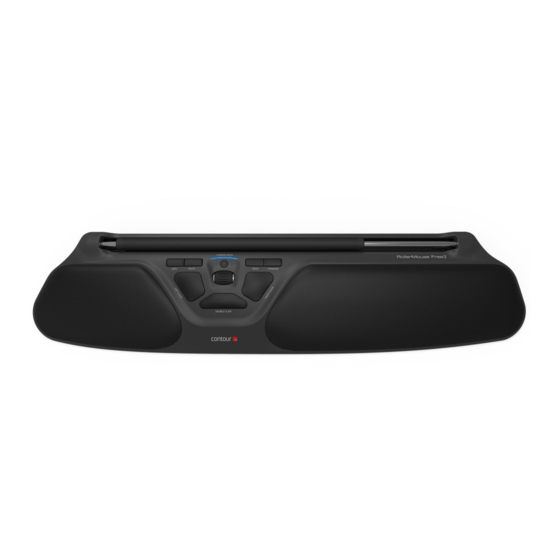

Box contents RollerMouse Free3 Two short keyboard risers Two long keyboard risers RollerMouse Free3 user guide... - Page 3 RollerMouse functions Rollerbar Cursor speed LED Copy Paste Back Forward Left-click Right-click Scroll wheel “One Touch” double-click For additional mouse features and specific Mac settings, please download our driver at www.contour-design.co.uk. RollerMouse Free3 user guide...
- Page 4 Keyboard positioning Before plugging in the unit, take a moment to check the height and angle of your keyboard, and find the arrangement that’s most comfortable for you. Use the risers to achieve the correct angle and height regardless of the type of keyboard you are using.
- Page 5 Inserting the keyboard risers Fit the end of the riser into the slot on the back of the RollerMouse Free3. Negative Tilt Neutralt hævet Line up the grooves of the short and long risers then press the two parts together until you hear them snap into place. Neutralt fladt Positiv hældning RollerMouse Free3 user guide...
-
Page 6: Connecting To A Computer
Using the rollerbar Connecting to a computer Plug the RollerMouse Free3 USB cable into the computer’s USB The rollerbar provides two functions: port. Allow your computer a few seconds to automatically install. • Pressing down on the rollerbar performs a left click. •... - Page 7 Changing the ‘Double’ click button to middle Click force tension adjustment To change button from a double click function to a middle button You can adjust the amount of pressure required to perform a mouse click. Use function, hold buttons for two seconds until LED lights flashes the click-force tension slider located under your RollerMouse Free3.
- Page 8 Change cursor speed Press the Cursor Speed button to cycle through cursor speeds. There are ten speed selections which range from slow (600 DPI) to fast (2800 DPI). Speed can be identified by the LED lights as shown. To see the current DPI level, press the Cursor Speed button once.
-
Page 9: Operating System
Operating system Different mode settings RollerMouse Free3 has 3 modes. PC- mode , Mac-mode and HID-mode. Use the following key commands to switch settings to best fit your operating system. LED’s light up from : PC Mode (Hold down the Cursor Speed and press Copy) PC-Mode Windows left to right. - Page 10 Phone: +45 70 27 02 27 - Consult the dealer or an experienced radio/TV technician for help. Email: info@contour-design.com This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
