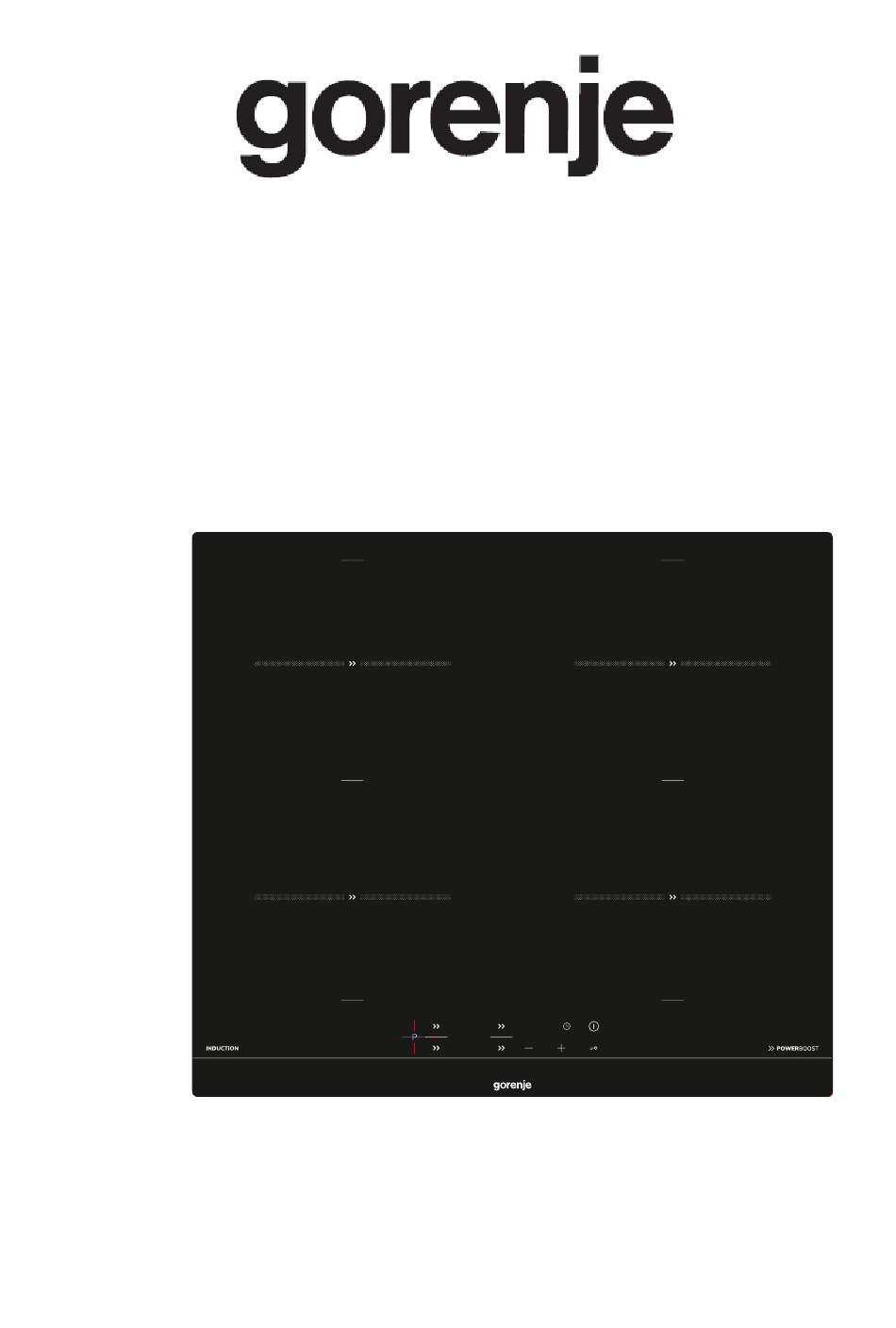

- Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: IT64ASC...
-
Page 2: Table Of Contents
Content 1. Foreword ..................4 1.1 Safety Warnings ................. 4 1.2 Installation ................4 1.2.1 Electrical Shock Hazard ..........4 1.2.2 Cut Hazard ..............4 1.2.3 Important safety instructions .......... 4 1.3 Operation and maintenance ............5 1.3.1 Electrical Shock Hazard ..........5 1.3.2 Health Hazard .............. - Page 3 9.6 Cautions ................... 23 9.7 Connecting the hob to the mains power supply ......23...
-
Page 4: Foreword
1. Foreword 1.1 Safety Warnings Your safety is important to us. Please read this information before using your cooktop. 1.2 Installation 1.2.1 Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. •... -
Page 5: Operation And Maintenance
• Failure to install the appliance correctly could invalidate any warranty or liability claims. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 6: Health Hazard
• Switch the cooktop off at the wall before cleaning or maintenance. • Failure to follow this advice may result in electrical shock or death. 1.3.2 Health Hazard • This appliance complies with electromagnetic safety standards. • However, persons with cardiac pacemakers or other electrical implants (such as insulin pumps) must consult with their doctor or implant manufacturer before using this appliance to make sure that their implants will not be... - Page 7 its electromagnetic field. • Never use your appliance for warming or heating the room. • After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls). Do not rely on the pan detection feature to turn off the cooking zones when you remove the pans.
-
Page 8: Product Induction
Congratulations on the purchase of your new Induction Hob. We recommend that you spend some time to read this Instruction / Installation Manual in order to fully understand how to install correctly and operate it. For installation, please read the installation section. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference. -
Page 9: Before Using Your New Induction Hob
2.4 Before using your New Induction Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your Induction hob. 2.5 Technical Specification Cooking Hob MC-IF7017B1-A Cooking Zones 4 Zones Supply Voltage 220-240V~ 50Hz or 60Hz... -
Page 10: How To Use
for induction. • If you do not have a magnet: 1. Put some water in the pan you want to check. 2. If does not flash in the display and the water is heating, the pan is suitable. • Cookware made from the following materials is not suitable: pure stainless steel, aluminium or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware. -
Page 11: Finish Cooking
Touching the heating zone selection control ,and a indicator next to the key will flash Select a heat setting by touching the “-” or “+” control. • If you don’t choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1. -
Page 12: Using The Boost Function
Beware of hot surfaces H will show which cooking zone is hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot. -
Page 13: Timer Control
To lock the controls Touch the lock control The timer indicator will show “ Lo “ To unlock the controls Touch and hold the lock control for a while. When the hob is in the lock mode, all the controls are disable except the ON/OFF you can always turn the induction hob off with the ON/OFF control in an emergency, but you shall unlock the hob first in the... -
Page 14: Default Working Times
b) Setting the timer to turn one cooking zone off Set one zone Touching the heating zone selection control that you want to set the timer for. (e.g. zone 3#) Touch timer control, the minder indicator will start flashing and “10”... -
Page 15: Cooking Guidelines
switch off after 2 minutes. People with a heart pace maker should consult with their doctor before using this unit. 4. Cooking Guidelines Take care when frying as the oil and fat heat up very quickly, particularly if you’re using PowerBoost. -
Page 16: Detection Of Small Articles
4.2 Detection of Small Articles When an unsuitable size or non-magnetic pan (e.g. aluminium), or some other small item (e.g. knife, fork, key) has been left on the hob, the hob automatically go on to standby in 1 minute. The fan will keep cooking down the induction hob for a further 1 minute. -
Page 17: Hints And Tips
Boilovers, melts, and Remove these immediately with a • Remove stains left by melts and hot sugary spills on fish slice, palette knife or razor sugary food or spillovers as soon the glass blade scraper suitable for as possible. If left to cool on the Induction glass cooktops, but glass, they may be difficult to beware of hot cooking zone... -
Page 18: Failure Display And Inspection
Some pans make This may be caused by the This is normal for cookware and crackling or clicking construction of your cookware does not indicate a fault. noises. (layers of different metals vibrating differently). The induction hob This is caused by the technology This is normal, but the noise should makes a low humming of induction cooking. - Page 19 Wait for the temperature of IGBT return to High temperature of IGBT .（1#） normal. Touch “ON/OFF” button to restart unit. Check whether the fan runs smoothly; High temperature of IGBT.（2#） if not , replace the fan. No Auto-Recovery Ceramic plate temperature sensor failure- F3/F6 -short circuit.
-
Page 20: Installation
to normal. Push “ON/OFF” button to restart unit. Heating zones of the same The power board and Check the connection. side ( Such as the first and the display board the second zone ) would connected failure; display “u” . The display board of Replace the display communicate part is... - Page 21 Note: The safety distance between the hotplate and the cupboard above the hotplate should be at least 760 mm. A(mm) B(mm) C(mm) 50 min. 20 min. Air intake Air exit 5mm WARNING: Ensuring Adequate Ventilation Make sure the induction cooker hob is well ventilated and that air inlet and outlet are not blocked. In order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum distance of 50mm from the bottom of the hob.
-
Page 22: Before Installing The Hob, Make Sure That
9.2 Before installing the hob, make sure that • The work surface is square and level, and no structural members interfere with space requirements. • The work surface is made of a heat-resistant and insulated material. • If the hob is installed above an oven, the oven has a built-in cooling fan. •... - Page 23 Under any circumstances, the brackets cannot touch with the inner surfaces of the worktop after installation (see picture) 9.6 Cautions 1. The induction hotplate must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. 2.
- Page 24 The power supply cable must not touch any hot parts and must be positioned so that its temperature will not exceed 75˚C at any point. Check with an electrician whether the domestic wiring system is suitable without alterations. Any alterations must only be made by a qualified electrician. •...
- Page 25 For more detailed information about treatment, recovery and recycling of this product, such waste separately please contact your local city office, your household waste disposal service or the shop for special treatment is where you purchased the product. necessary. Gorenje gospodinjski aparati, d.o.o. Partizanska cesta 12 3320 Velenje Slovenia...
