Required Crew: 2 Required
Concrete: 10-12, 80 lb. bags
Required Tools:
● Wheelbarrow
● Step Ladder (6' or taller)
● Shovel
● Tape Measure
● Digging Bar or Pick
● Level
● Allen Wrench (Provided)
● Open end or Box Wrenches: 9/16", ¾"
● Hammer or Mallet
● Ratchet Handle & Sockets: 9/16", ¾"
● Marker Pen
● Drill: Cordless or electric, or impact driver
Component Playgrounds is concerned about the safety of your vision. It
is important that you choose to protect your vision by wearing proper
safety glasses during each and every phase of this construction
process.
PLEASE READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING
The MT21 can be installed as a one day project. The normal time required
to install the MT21 is about 2-4 hours for a two man crew. This time
requirement will vary dependent upon the composition of the soil and the
speed of the installers. Mix and pour the concrete as the last step.
*Before digging, please obey local laws by notifying your local
underground utilities marking organization*
Installation Instructions

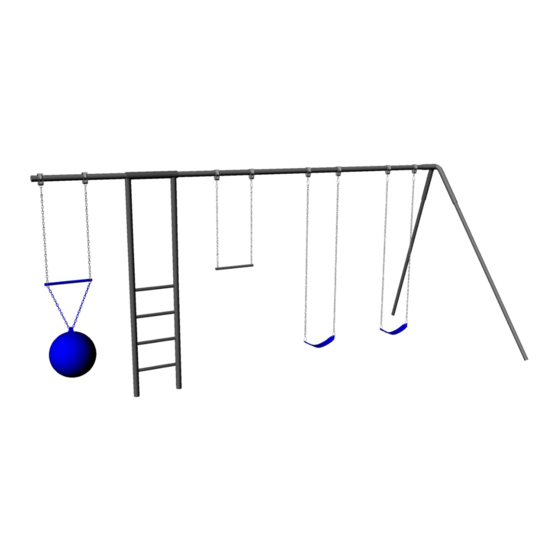

MT21 Swing Set
Advertisement
Related Manuals for Component Playgrounds MT21
Summary of Contents for Component Playgrounds MT21
- Page 1 The MT21 can be installed as a one day project. The normal time required to install the MT21 is about 2-4 hours for a two man crew. This time requirement will vary dependent upon the composition of the soil and the speed of the installers.
- Page 2 Installation Instructions 1 . Select an area in your yard that is reasonably level and meets the space requirement for your equipment. Ground Space: 18’ x 11’. Play Space: 22’x 20’. 2. Please refer to the top rail assembly sheet and assemble your top rail as instructed.
- Page 3 and mark the holes. Move the legs out of the way and dig the holes. (Keep most of the hole to the inside of the leg). Place the legs into the holes. 10. Level the set. 11 . Mix concrete according to package directions and pour into the holes. (See Installation Instructions page #1.) You will use approximately 6-7 80 pound bags in the ladder hole and 1 1⁄2 bags in each of the leg holes.
- Page 4 Model MT21...
- Page 5 Top Rail Assembly Step 1 : Slide the undrilled end of the longer Top Rail as far as it will go into the Sleeve of the Triple End Step 2 : Slide the Swing Hangers and tighten onto the Top Rail during the Top Rail Assembly process.
- Page 6 Model MT10-10 Installation Diagrams #1 Hole Sizes for Cementing in the Set...
- Page 7 # 2 A-Frame Leg Assembly #3 Ladder to Top Rail Assembly...
- Page 8 1. Loosen and remove the two nyloc jam nuts. 2. Reassemble on to swing top rail. Tighten securely so that the hanger is firmly attached in place and cannot slide or swivel along top rail. 3. Attach carabiner with chain through the ring. Note: We recommend you check the pendulum in the swing hangers at least every 6 months for normal wear...
-
Page 10: Read Before Use
Do not attempt to use equipment for something other than the use for which it was designed and intended, or in a manner other than that for which it was designed and intended. While every attempt is made by Component Playgrounds to ensure the highest degree of safety in all of our equipment, we cannot guarantee freedom from injury. The user assumes all risk of injury due to use. - Page 11 We hope that you and your family will enjoy many hours of great family fun while using your Component Playgrounds Products. We appreciate your business. Our goal is to provide safe, durable and fun products using the best materials available. Your product should be mostly maintenance free.
- Page 12 When your equipment is built, Component Playgrounds will repair this damage using a cold galvanizing compound spray along with a top coat of silver aluminum. This is a time tested and durable process. However, when you are...
- Page 13 To Help Prevent Injuries from Falls & Other Hazards 1. Never attach, or allow children to attach the following items to your swing set: Ropes, jump ropes, clotheslines, pet leashes or any similar type of item to your swing set. Any item such as these may present a strangulation hazard.
- Page 14 Limited Lifetime Warranty Component Playgrounds works to build heavy duty products that will stand up to the heavy use of active children. You can trust Component Playgrounds because of the way we design and build our products. We make products that are simple to own, and easy to maintain.
-
Page 15: Warranty Registration Sheet
Return this form via e-mail to: State: Zip: s a les@componentplaygrounds.com Phone: Or via U.S. mail to: Purchase Date: Completion Date: Component Playgrounds 1630 North Beck Street Sales Representative/Dealer Information Salt Lake City, UT 84116 (If different from manufacturer) Organization: Todays Date: City:...
