Summary of Contents for Ferm GRM1024

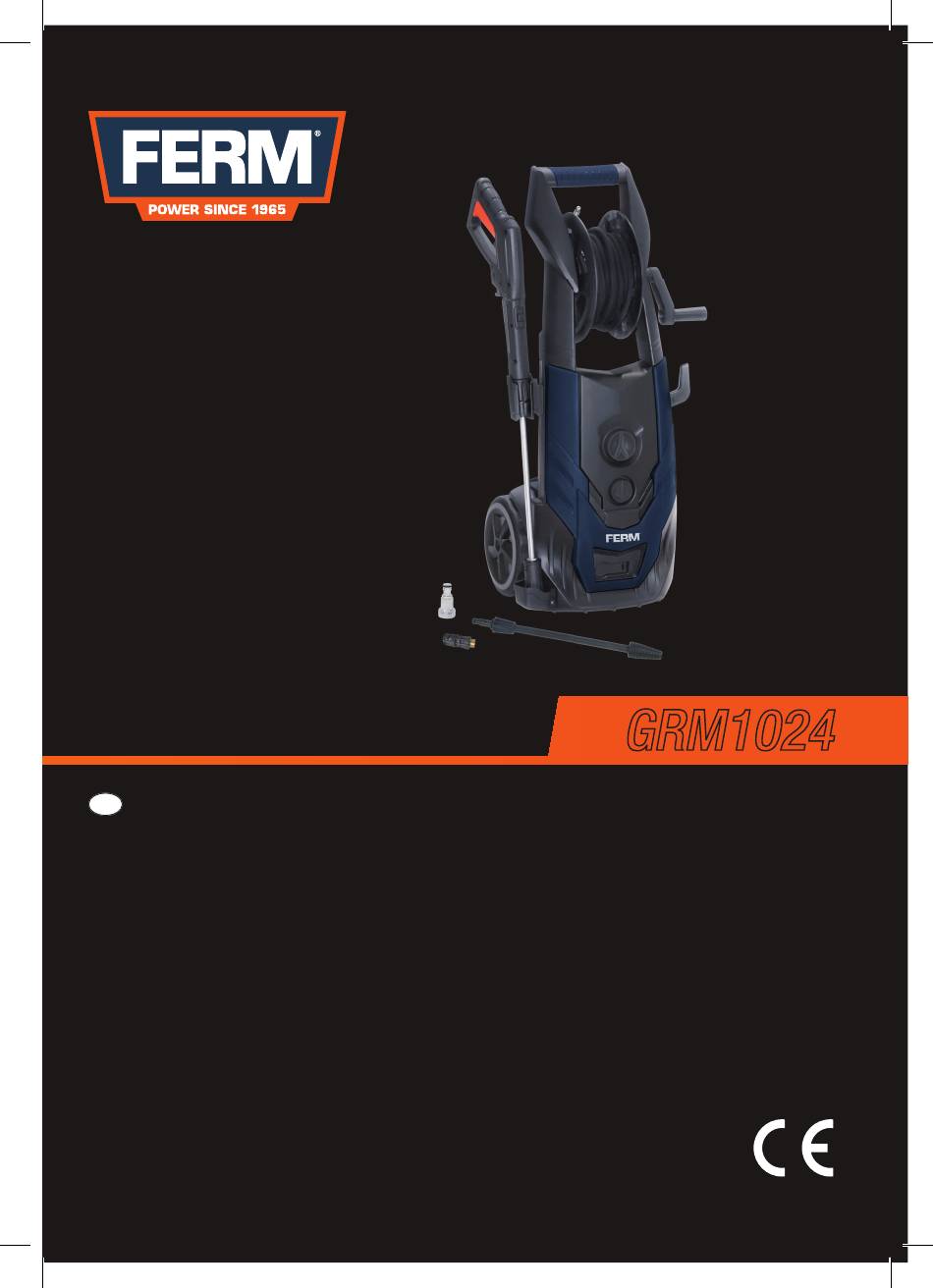

- Page 1 GRM1024 Original instructions WWW.FERM.COM...
- Page 2 Fig. 1 Fig. 2 Fig. 3 Fig. 4...
-
Page 3: Table Of Contents

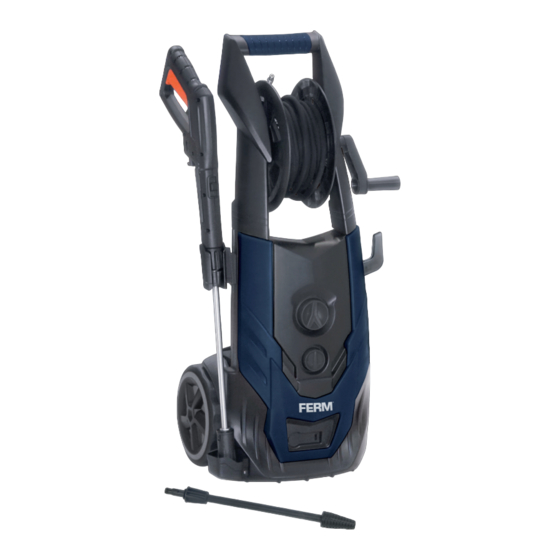

Explanation of the symbols Introduction The high pressure cleaner GRM1024 is quick and Denotes risk of personal injury, loss of life efficient for cleaning vehicles, machines, boats, or damage to the tool in case of non- buildings, etc., by the removal of persistent dirt... - Page 4 • A ll electrical connections e.g. extension • T he cleaner must be used standing on a cable, must be of an approved waterproof secure, stable surface. type for outdoor use and marked accordingly. • A void unintentional firing of the trigger. Do not Extension cables must be threecore, one of carry the lance/ trigger assembly with your which is EARTH.
- Page 5 • T o ensure machine safety, use only original • D o not overreach or stand on unstable spare parts from the manufacturer or approved support. Keep good footing and balance at all by the manufacturer. times. • W ater that has flown through backflow • F ollow the maintenance instructions specified preventers is considered to the non-potable. in the manual. • T he machine shall be disconnected from its • T his machine must be grounded. If it has power source by removing the plug from the malfunction or breakdown, grounding provides...
-
Page 6: Assembly
3. ASSEMbLy • I t is necessary to turn on the spray lance within one or two minutes after the machine has been started. Otherwise, the temperature of the The motor of this pressure washer will circulating water within the machine will soon NOT run. It will only operate when the rise to a critical point, which will cause damage trigger is squeezed. -
Page 7: Use
CAUTION: NEVER disconnect the high- Water inlet filter pressure discharge hose from the • T he water inlet filter must be inspected regu- machine while the system is still larly, so as to avoid blockage and restriction of pressurized. To depressurize the unit, the water supply to the pump. turn off the motor, turn off the water supply and squeeze the trigger 2-3 times CAUTION! Never disconnect the high-... - Page 8 4. The motor stops suddenly faults • T hermal safety switch has tripped due to If a fault arises through wear in an element, overheating. please contact the service address shown on the • C heck that the mains voltage corresponds warranty card. A drawing of the spare parts that to specifications.
- Page 9 Exploded view...
-
Page 10: Wheel
Spare parts list GRM1024 - High pressure cleaner Art. No. Description Position no. 410114 Accessories holder 410115 Cable hook 410116 Detergent bottle + cap 410117 Back housing 410118 Gun holder 410119 Lower fixed mount 410120 Upper fixed mount 410121 main switch box... - Page 11 регулативи: EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-11, EN 60335-1, EN 60335-2-79, EN 62233 2006/42/EC, 2014/30/EU, 2011/65/EU, 2012/19/EU Zwolle, 01-06-2017 H.G.F Rosberg CEO FERM B.V. fERM b.v. - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands...
- Page 12 1706-20 www.ferm.com ©2017 FERm B.V.
