Summary of Contents for Ferm GRM1020

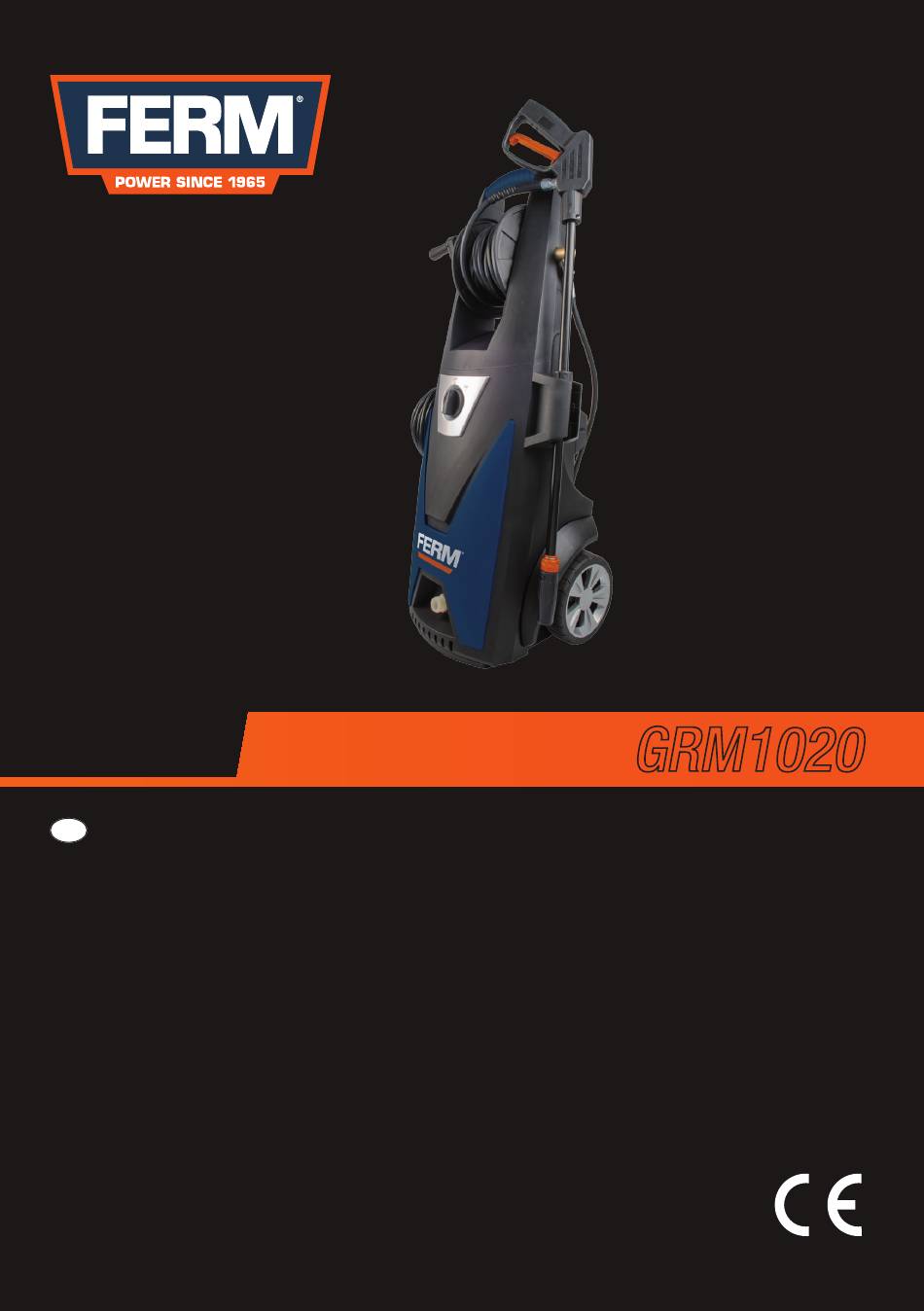

- Page 1 GRM1020 Original instructions www.ferm.com...
- Page 2 Fig. 1 Fig. 2...
- Page 3 Fig. 3 Fig. 4 Fig. 5...

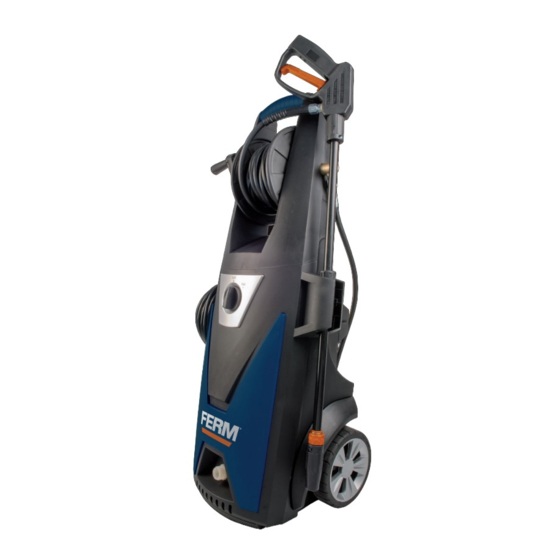

- Page 4 Fig. 1 1. High pressure washer Introduction 2. On/off switch The high pressure cleaner GRM1020 is quick and 3. Water inlet efficient for cleaning vehicles, machines, boats, 4. Wheel buildings, etc., by the removal of stubborn dirt 5.
- Page 5 • T he cross-section of any extension cables Electrical safety used must be proportional to their length, i.e. • A lways check if your mains voltage the longer the extension cable, the greater the corresponds with the value on the type plate. cross-section; cables with a protection level of • W hen replacing old cables or plugs: “IPX5”...
- Page 6 by the manufacturer. The use of other cleaning you changed them if they are damaged. agents or chemicals may adversely affect the • B e care of the danger of the kickback force on safety of the machine. the spray assembly when opening the trigger • R ecommend the operator to wear ear gun and grasp the gun with hands firmly.
- Page 7 be dangerous. Do not abuse extension cord hazard. and do not yank on any cord to disconnect. • D o not use the machine if a supply cord or Keep cord away from heat and sharp edges. important parts are damaged, e.g. safety Always disconnect the extension cord from the devices, high pressure hoses, trigger gun.
- Page 8 6. Wipe all surfaces of the unit with a damp clean • Turn the motor switch to the “0” position. cloth. • C heck that the electrical supply voltage and 7. Engage the gun safety lock. frequency (Volts/Hz) correspond to those specified on the cleaner data plate. CAUTION: ALWAYS turn off the unit’s motor • I f the power supply is correct, you may now BEFORE turning off the unit’s water supply.
- Page 9 5. SERvICE & MAINTENANCE Water inlet filter Fig. 4 • T he water inlet filter must be inspected regu- Warning! Unplug the electric cable larly, so as to avoid blockage and restriction of (power source) prior to any maintenance the water supply to the pump. (fig 4) or preparatory storage operations.
- Page 10 ENvIRoNMENT overheat. Leave to cool down. Use heavy duty extension cables. To prevent damage during transport, the 5. The pump does not reach the necessary appliance is delivered in a solid packaging which pressure. consists largely of reusable material. Therefore • Water inlet, filter is clogged please make use of options for recycling the • Clean the water inlet filter packaging.
- Page 12 Exploded view A Spare parts list GRM1020 description Position 501094 Filtre 502096 valve set 34 TILL37 800796 capacitor 501597 main switch 501587 water hose 502095 wheel 22 TILL 25 503311 detergent spray attachment 502299 trigger 522223 outer rubber hose 522233...
- Page 13 Exploded view B...
- Page 15 EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-11, EN 60335-1, EN 60335-2-79, EN 62233 2006/42/EC, 2004/108/EC, 2011/65/EU, 2012/19/EU Zwolle, 01-08-2015 H.G.F Rosberg CEO FERM B.V. FERM B.V. - Lingenstraat 6 - 8028 PM - Zwolle - The Netherlands...
- Page 16 1508-28 www.ferm.com ©2015 FERm B.V.
