SYK-2030 - 10' x 20' Portable Display
10'
20'

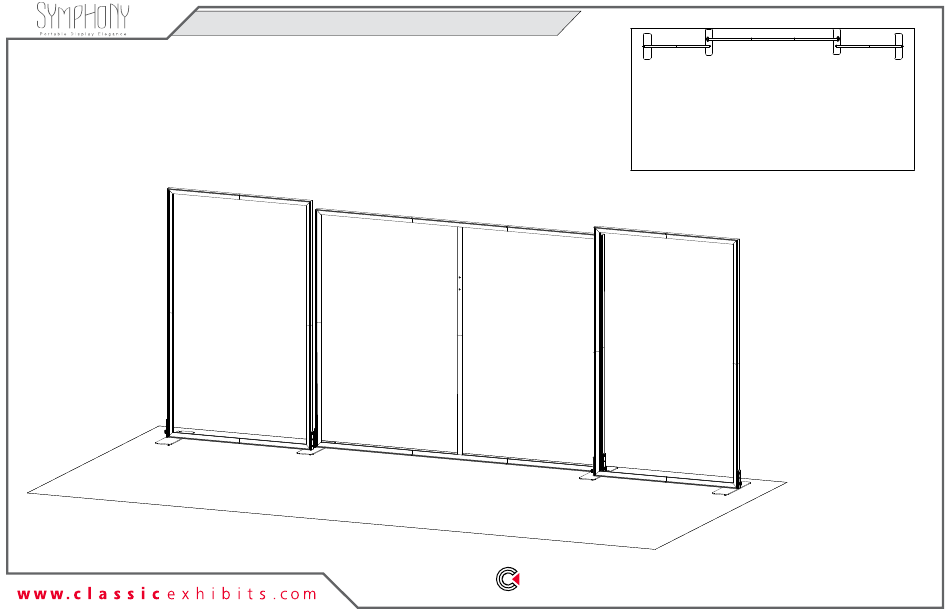

Plan View
Perspective View
SETUP INSTRUCTIONS
If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SYK-2030 and is the answer not in the manual?

Questions and answers

Summary of Contents for Symphony SYK-2030

  • Page 1 © 2022 REV 7/2022 Order #XXXXX SYK-2030 - 10’ x 20’ Portable Display 10’ 20’ Plan View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
  • Page 2 © 2022 Order #XXXXX Plan View = 1 sq ft...
  • Page 3: General Setup Instructions

    © 2022 Order #XXXXX General Information General Setup Instructions WARNING - Read entire setup instruction manual prior to unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly.
  • Page 4 © 2022 Order #XXXXX Tool-less Frame Assembly Slide connector across seam of extrusions. Disassembly Tighten all knobs. Straight Connection 1) Loosen all knobs. When assembling frame, first attach all straight Straight Connector 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
  • Page 5 © 2022 Order #XXXXX Case Packing Top View of Each Level 11 12 8,10 Setup Hardware Graphics Graphics Level 1 Level 2 Level 3 Level 4 (Bottom level) Case 1 of 2...
  • Page 6 © 2022 Order #XXXXX Case Packing Top View of Each Level Level 1 Level 2 Level 3 Level 4 Level 5 (Bottom level) Case 2 of 2...
  • Page 7 © 2022 Order #XXXXX Middle Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 41”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4], [11-12] & horizontals [5-6-7], [8-9-10] 41”h TSP49 Vertical Extrusion together, using Tool-less Spline Connector...
  • Page 8 © 2022 Order #XXXXX Left Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 45”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8] 45”h TSP49 Vertical Extrusion together, using Tool-less Spline connectors...
  • Page 9 © 2022 Order #XXXXX Right Backwall Frame Assembly Item Qty. Description Steps: 45”h TSP49 Vertical Extrusion Refer to the Tool-less Frame Assembly general information page. 45”h TSP49 Vertical Extrusion 45”h TSP49 Vertical Extrusion 1) Assemble vertical extrusions [1-2], [3-4] & horizontal extrusions [5-6], [7-8] 45”h TSP49 Vertical Extrusion together, using Tool-less Spline connectors...
  • Page 10 © 2022 Order #XXXXX Backwall Frames Connection Steps: Base Plate Attachment 1) Connect vertical of Left Frame Assembly to P lace key hole over bolt on panel & slide down. Base Plate of Middle Frame Assembly. Twist knob to secure connection. Base Plate Attachment detail.
  • Page 11 © 2022 Order #XXXXX Fabric Graphics Application Steps: SEG Graphic Installation 1) Apply SEG Graphics to assembled frames. Corner A Corner B Completed Assembly Corner D Corner C Step 1 It is important to first insert Insert corner A. Turn edge of graphic into each alternate graphic so silicon welt is corner, then to the sides of...
