Summary of Contents for Truper TPN-711

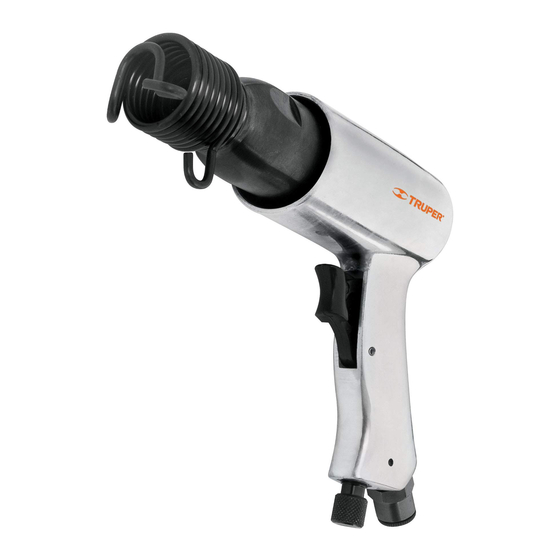

- Page 1 Manual Air Hammer 3/4” Piston Diameter Applies for: Code Model 19383 TPN-711 TPN-711 Use oil continuously and WARNING dosed to lubricate the tool. Read this manual thoroughly CAUTION before using the tool.
-
Page 2: Table Of Contents
Manual before using the tool. Parts Assembly Keep this manual for future references. Start Up The illustrations in this manual are for reference only. They might be different from the real tool. Maintenance Authorized Service Centers Warranty Policy TPN-711 ENGLISH... -
Page 3: Technical Data
Technical Data TPN-711 Code 19383 Description Air Hammer Piston Diameter 3/4” Air Exhaust Front Noise Level 114 dB Vibration < 2.5 m/s Free Speed 3 500 strokes / min Weight Without Accessories 3,4 lb Total Length 7 3/4” Air Pressure... -
Page 4: General Safety Warnings For Pneumatic Tools
General Safety Warnings for Pneumatic Tools Keep your work area clean, tidy and well lit. Wear adequate protective safety accessories. CAUTION CAUTION Cluttered and dark areas may cause accidents. Wear eye protection, dust mask, non-skid safety shoes, helmet and ear plugs. In normal conditions, the risk of Never use the tool in explosive areas or in the presence injury is reduced. -
Page 5: Risk Control When Using Pneumatic Tools
Risk Control When Using Pneumatic Tools Risk of injury in head and eyes To prevent head and eyes injuries WARNING • Compressed air out of pneumatic • Always, when operating pneumatic equipment wear equipment may be dangerous. Objects like brackets, burrs, protection glasses in compliance with the ANSI-Z87.1 splinters, dust and other residues may be impelled towards Standard. - Page 6 Risk Control When Using Pneumatic Tools Risk of injuries To prevent injuries WARNING • Damaged hoses may burst and cause • Do not abuse the hose or the connectors. serious injuries or deafness. • Keep the hose away from sharp or abrasive edges. •...
-
Page 7: Parts
Parts Retaining Spring Piston Trigger Handle Air Inlet Regulator Assembly Chisel installation 1. Unscrew the retaining spring of the hammer tip. Keep the tool lubricated to make the operation easier. 2. Insert the chisel's shank into the hole in the hammer's tip. -
Page 8: Start Up
Start Up Air intake connection • Remove the plastic cap that covers the air inlet at the base of Air Intake the handle. • Connect the air hose to the tool using an adapter (not Plastic Cap included) by screwing the adapter into the tool's air inlet. •... -
Page 9: Authorized Service Centers
Authorized Service Centers In the event of any problem contacting a Truper Authorized Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 800 690-6990 or 800 0187-8737 to get information about the nearest Service Center. -
Page 10: Warranty Policy
. Transportation costs resulting from compliance of this warranty will be covered by For questions or comments, call 800-690-6990. Made in China. Imported by Truper S.A. de C.V. Parque Industrial 1, Jilotepec, Edo. de Méx. C.P. 54240 Stamp of the business.
