Thank you for purchasing the GS828 carbon monoxide (CO) alarm. This device is a product that has been built using state-of-the-art
technology.
This user guide contains important information on starting operation and using the devise. Store this user guide in a safe place for
future reference. These instructions are a part of this product - bear this in mind if you pass on this product to others.
Please take a few minutes to thoroughly read the user's guide and familiarize yourself and your family with its operation.
CAUTION:
This CO alarm is designed for indoor use only. DO not expose to rain or moisture. DO not knock or drop the detector. DO
not open or tamper with the alarm as this could cause malfunction.
The alarm will not protect against the risk of carbon monoxide poisoning when the battery has drained.
Installation of the alarm should not be used as a substitute for proper installation, use and maintenance of fuel burning
appliances including appropriate ventilation and exhaust systems.
Table of Contents
1. Installation instructions-----------------------------------2/8
2. Product overview------------------------------------------4/8
3. Understanding your CO alarm----------------------------4/8
4. What to do if the alarm sounds--------------------------5/8
5. Battery installation/replacement-------------------------6/8
6. General maintenance--------------------------------------6/8
7. Carbon monoxide overview-------------------------------6/8
8. Specification------------------------------------------------7/8
10. Warranty card---------------------------------------------8/8
11. Warranty Information------------------------------------8/8

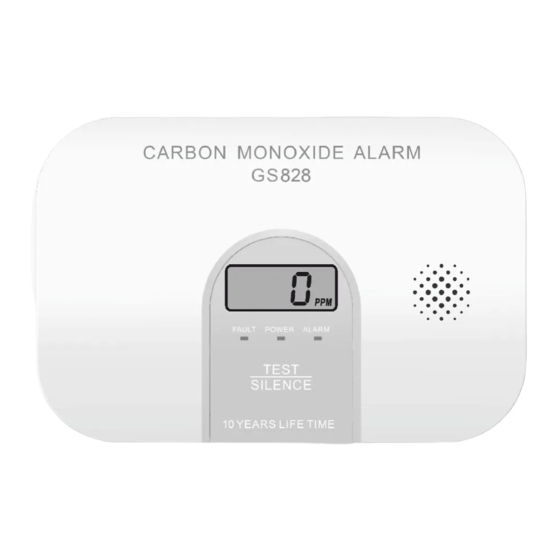

CARBON MONOXIDE ALARM USER'S MANUAL
MODEL No.: GS828
1 / 8
18
EN50291-1:2010 + A1:2012
GS828 Manual Rev. Draft
Advertisement
Table of Contents
Related Manuals for Siterwell GS828
Summary of Contents for Siterwell GS828
- Page 1 MODEL No.: GS828 EN50291-1:2010 + A1:2012 Thank you for purchasing the GS828 carbon monoxide (CO) alarm. This device is a product that has been built using state-of-the-art technology. This user guide contains important information on starting operation and using the devise. Store this user guide in a safe place for future reference.
- Page 2 ■ Do not install in areas where the temperature is below-10℃ or hotter than 40℃. ■ Do not place behind curtains or furniture. CO must be able to reach the sensor for the unit to accurately detect CO. 2 / 8 GS828 Manual Rev. Draft...
- Page 3 The TEST/SILECNE button is used to test the unit. Press and hold to enable TEST function. 2.5 Alarm sounder The alarm sounder is used to send out CO alarm warning and fault warning information. 3 / 8 GS828 Manual Rev. Draft...
- Page 4 FAULT indicator (yellow LED) still keep flashing. The LCD will active for 1 seconds every 33 seconds ,as follow: NOTE: When alarm under the low battery warning, please replace the battery in time to ensure the normal working. 4 / 8 GS828 Manual Rev. Draft...
- Page 5 WARNING! –Action of this device indicates the presence of dangerous levels of CO! CO can be fatal! If the alarm sounds: 1. Operate the TEST/SILENCE button. 2. Shut down furnaces and gas supply. 5 / 8 GS828 Manual Rev. Draft...
- Page 6 WARNING! –This apparatus is designed to protect individuals from the acute effects of carbon monoxide exposure. It will not fully safeguard individuals with specific medical conditions. If in doubt consult a medical practitioner. 6 / 8 GS828 Manual Rev. Draft...
- Page 7 Alarm sound : ≥85DB at 100cm @3.2±0.5KHz pulsing alarm Low Battery warning silence: about 9 hours NOTE: This CO alarm is designed to detect carbon monoxide gas from any source of combustion. It is not designed to detect any other gas. 7 / 8 GS828 Manual Rev. Draft...
- Page 8 NOTE: In the event of a warranty claim, please return the till receipt and completed warranty card with fault description together with the defective device. NOTE: The warranty does not cover the batteries supplied. 8 / 8 GS828 Manual Rev. Draft...
