Siterwell GS869 User Manual

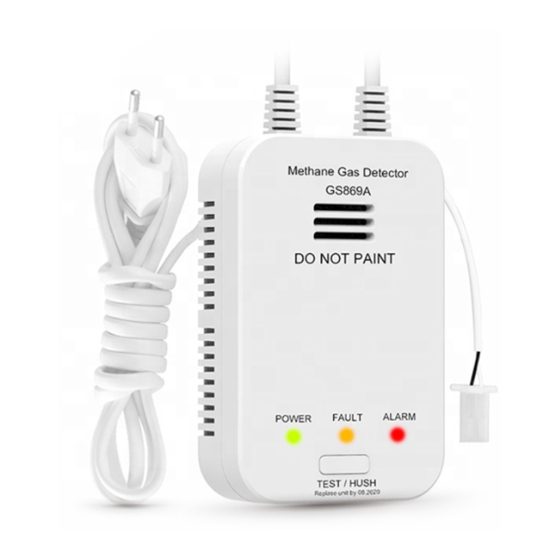

Gas Leakage Alarm User's Manual
Diagram 1
Thank you for purchasing this gas detector, which is intended to detect
leakage of natural gas. The detector that must connected to the mains power is
intended for installation in domestic premises (including static caravan holiday
homes).
Please take a few minutes to read the user's manual thoroughly and
familiarize yourself and your family with its operation. And save it for
future reference.
Product Specifications:
Power Source : AC 220-240V / 50-60Hz
Sensor type : Semiconductor
Detector Gas : Natural Gas (Methane)
Sensitivity : 6% LEL (Lower Explosive Limit)
Sound Level : >85dB at 1 meter
Power Consumption : <4W
Dimension : 117.4×77.4×36.3mm
Temperature : -10℃~40℃
Humidity : 0~95% RH
Protection level : IPX2D
Product Life : 5 Years
Accessory (optional) : Solenoid valve
Model : GS869/GS869A
BS EN50194-1:2009
Licence No.: KM642335
1
Solenoid valve Specifications (If applicable):
Control type: Normally open
Actuation voltage: DC 9V pulse voltage
Temperature: -10℃~ 60℃
Reset style: manual reset
Maximum pressure: 50Kpa
3
Flux: 25m /h
Connection style: screw thread
Status
All statuses of the detector are showed in the summary table.
Status Illustration
Self-Test Power on
Preheat About 180 seconds
Constant
Standby Normal condition
Press key when Constant
Test
Preheat or Standby
Constant
Gas detected
ALARM
Press key when Constant
Silence
ALARM
Sensor The detector must Constant
Fault be replaced
The detector must Constant
End of life
be replaced
The power wire is
Power off
unplugged
GS869 MANUAL REV E
Summary Table
Green Yellow Red
Horn
LED LED LED
ON ON ON Chirp once
Light
OFF OFF OFF
0.5s/1s
OFF OFF OFF
on
Light Synchronized
OFF
on 0.5s/1s with Red LED
Light Synchronized
OFF
on 0.5s/1s with Red LED
Light
OFF OFF
on 0.5s/1s
Constant chirp once per
OFF
on on 30 seconds
Constant chirp third times
OFF
on on per 30 seconds
OFF OFF OFF OFF
Solenoid
valve
open
open
open
close
close
close
open
open
open
