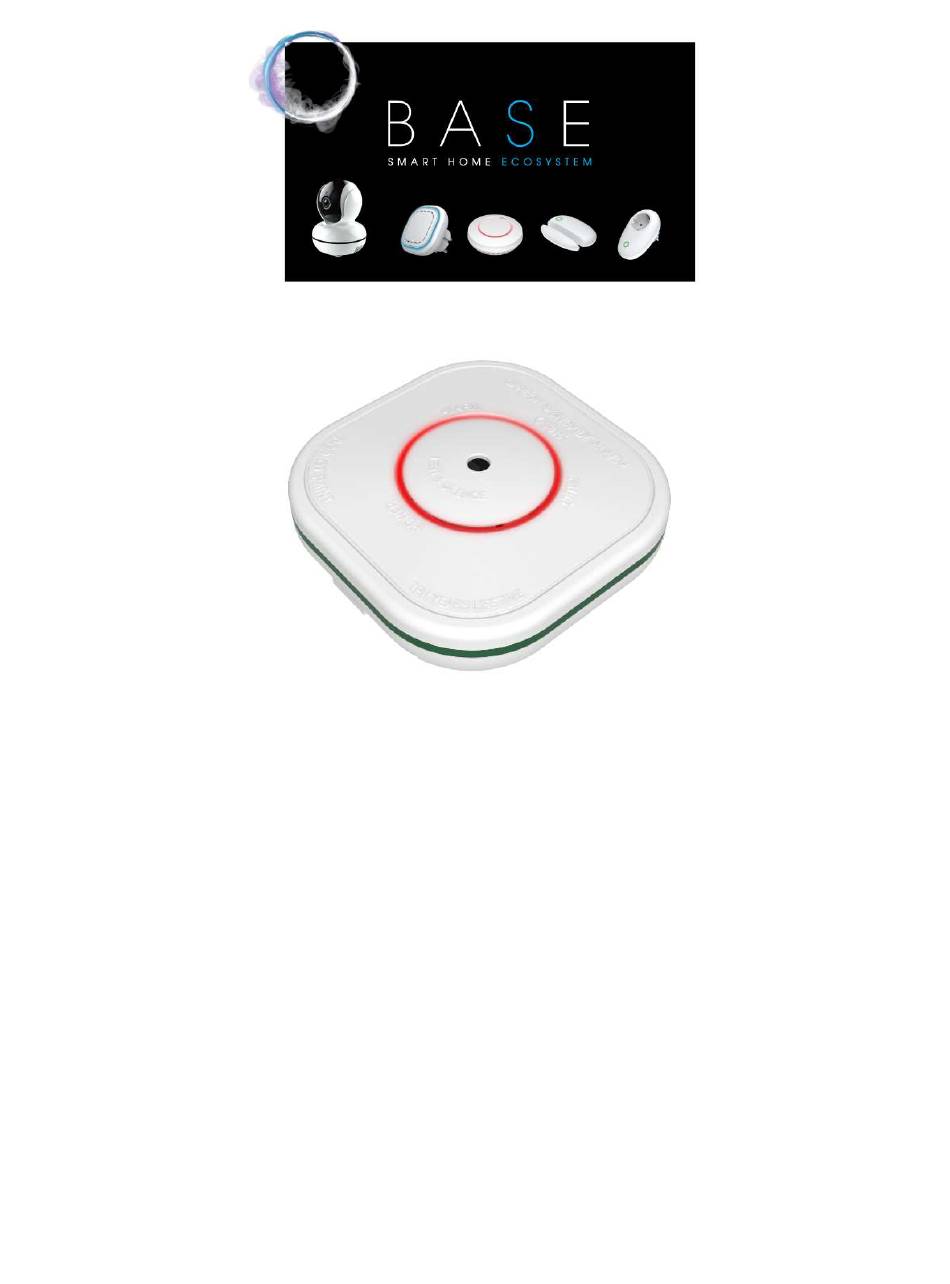

Page 1: User Manual
SWM816A Carbon monoxide alarm User Manual IMPROTER: SUOMEN TURVAKAUPPA OY www.turvakauppa.com... - Page 2 SWM816A User Manual V2.0 Overview CO Alarm (SWM816A) adopts electrochemical sensors, is used to detect carbon monoxide gas generated when fuels such as coal are not fully burned, and inform users in time to avoid the occurrence of poisoning caused by the accumulation of carbon monoxide.
-
Page 3: Installation Instruction
SWM816A User Manual V2.0 Installation instruction Installation location • Recommended to locate 1~3 meter away from fuel burning appliances. • Install in a bedroom or hallway located close to the sleeping area. Take special care to verify the alarm can be heard in sleeping areas •... - Page 4 SWM816A User Manual V2.0 Operation instruction Adding to BASE smart home ecosystem It needs the cooperation of SWM188A (gateway) to be added to the BASE intelligent security system, please refer to the 'BASE User Guide' for details. Step 1 Step 2...
- Page 5 SWM816A User Manual V2.0 CO Alarm as a host device, press the button of CO Alarm 3 times quickly. Wait for the indicator and then press the button of other devices 3 times quickly and wait until the buzzer of host sends a 'beep' sound which means completed.
- Page 6 SWM816A User Manual V2.0 Alarm disposal Once carbon monoxide poisoning occurs, it is very dangerous. If the carbon monoxide alarm sends out an alarm, the following actions are recommended in the following order. Stay calm and open all doors and windows for ventilation. Stop using all fuel burning equipment, if possible, make sure they are all off.
- Page 7 SWM816A User Manual V2.0 Technical Specifications Power input DC3V(AA×2) Standby current ≤50μA Trigger current ≤20mA Frequency 868MHz Wireless distance ≥100 meters @in an open air Executive standard EN 50291-1:2010+A1:2012 standard 60~90mins@50PPM Alarm concentration 10~40mins@100PPM <3mins@300PPM Alarm volume ≥85dB@3m Silence time About 5 minutes Environment -10~40℃, ≤95%RH Non-condensate...
-
Page 8: Troubleshooting
SWM816A User Manual V2.0 Troubleshooting Number Problems Reasons Solutions Alarm doesn't connect to Refer to section 5.1. BASE. Gateway doesn’t Check Wi-Fi or connect to the Wi-Fi reconfigure the Alarming while detecting network. network. CO, but the status in Smart phone doesn’t Connect the Wi-Fi APP does not change. - Page 9 SWM816A User Manual V2.0 and the buzzer beeps 2 sound 9 / 10...
- Page 10 SWM816A User Manual V2.0 Statement The information in the User's Manual is absolutely correct at the time of publication, however we are not responsible for the application of this document. The application mentioned in this document is for illustration purposes only. We do not guarantee or represent that these applications without further modifications are appropriate and that we also have the right to modify the product without any notice.
