Printed Matter No. 9839 0740 01
Publication Date 2019-10-08
Valid from Serial No. A5950001
Valid to Serial No. A1749999
W2915
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
8434124852
WARNING
W2915

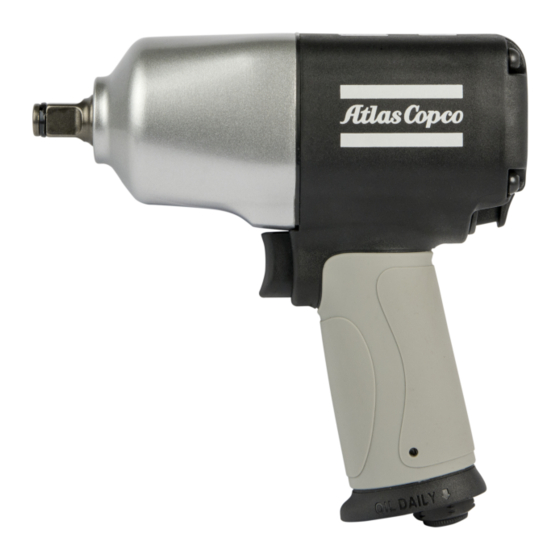

Impact Wrench
Product Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W2915 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Atlas Copco W2915

  • Page 1 W2915 Printed Matter No. 9839 0740 01 Impact Wrench Publication Date 2019-10-08 Valid from Serial No. A5950001 Product Instructions Valid to Serial No. A1749999 W2915 8434124852 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
  • Page 2: Table Of Contents

    Inspection of motor parts .............. 10 Inspection of strainer ................ 11 Inspection of silencer................ 11 Lubrication instructions ................... 11 Rust protection and cleaning ............... 11 Lubricating guide ................. 11 Lubrication of motor parts.............. 11 Lubrication of impact mechanism ............ 12 Recycling ....................... 13 © Atlas Copco Industrial Technique AB - 9839 0740 01...
  • Page 3 Recycling instruction.................. 13 © Atlas Copco Industrial Technique AB - 9839 0740 01...
  • Page 4: Product Information

    ■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions.
  • Page 5: Website

    You can find information concerning our products, accessories, spare parts and published matters on our website. Safety Data Sheets MSDS/SDS The safety data sheets describes chemical products sold by Atlas Copco. For more information, consult the website: www.atlascopco.com Choose Products - Safety Data Sheets, and follow the instructions on the page.
  • Page 6: Service Overview

    If the product is not working properly, take it out of service and inspect it. If no detailed information about preventive maintenance is included, follow these general guidelines: ■ Clean appropriate parts accurately ■ Replace any defective or worn parts © Atlas Copco Industrial Technique AB - 9839 0740 01...
  • Page 7: Installation

    Air quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water.
  • Page 8: Operation

    Use extensions and standard sockets instead of long or extra long sockets as the lower inertia/mass of the extension will give less stress on the impact mechanism. However an extension will reduce the applied torque to some degree. © Atlas Copco Industrial Technique AB - 9839 0740 01...
  • Page 9: Tightening Torque

    (diameter or length) will overload the impact mechanism and reduce the life of vital parts. Use the impact wrench within the specified torque range. Never override the recommended maximum tightening torque. © Atlas Copco Industrial Technique AB - 9839 0740 01...
  • Page 10: Service

    If the product is not working properly, take it out of service and inspect it. If no detailed information about preventive maintenance is included, follow these general guidelines: ■ Clean appropriate parts accurately ■ Replace any defective or worn parts Inspection of motor parts © Atlas Copco Industrial Technique AB - 9839 0740 01...
  • Page 11: Inspection Of Strainer

    Beacon EP2 Rembrandt EP2 Mobil Mobilegrease XHP 222 Shell Alvania EP2 Alvania Grease RL2 Texaco Multifak EP2 Molycote BR2 Plus Lubrication of motor parts Apply a layer of oil where indicated. © Atlas Copco Industrial Technique AB - 9839 0740 01...
  • Page 12: Lubrication Of Impact Mechanism

    Service W2915 Lubrication of impact mechanism Spread a thin layer of grease on all sliding and impact surfaces, inside the cavity of the hammer and on the driver flange. © Atlas Copco Industrial Technique AB - 9839 0740 01...
  • Page 13: Recycling

    W2915 Recycling Recycling Recycling instruction When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. © Atlas Copco Industrial Technique AB - 9839 0740 01...
  • Page 16 Original instructions Atlas Copco Industrial © Copyright 2019, Atlas Copco Industrial Technique AB. All rights reserved. Any Technique AB unauthorized use or copying of the contents or part thereof is prohibited. This SE-10523 STOCKHOLM applies in particular to trademarks, model denominations, part numbers and drawings.
