Printed Matter No. 9834 4666 01
Publication Date 2020-02-21
Valid from Serial No. A2410001
W2910
Read all safety warnings and instructions
Failure to follow the safety warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference
8434124850
WARNING

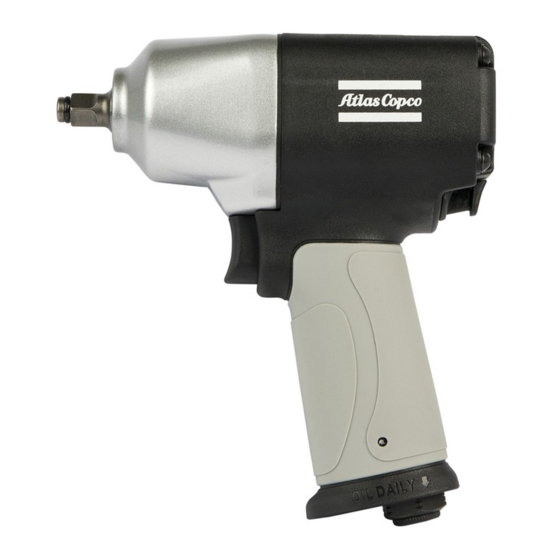

W2910
Impact Wrench
Product Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atlas Copco W2910
Summary of Contents for Atlas Copco W2910
- Page 1 W2910 Printed Matter No. 9834 4666 01 Impact Wrench Publication Date 2020-02-21 Valid from Serial No. A2410001 Product Instructions W2910 8434124850 WARNING Read all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
-
Page 2: Table Of Contents
Inspection of motor parts .............. 10 Inspection of silencer................ 10 Lubrication Instructions................... 10 Rust Protection and Cleaning.............. 10 Lubricating guide ................. 10 Lubrication of motor parts.............. 11 Lubrication of impact mechanism ............ 11 Recycling ....................... 12 Environmental Regulations................ 12 © Atlas Copco Industrial Technique AB - 9834 4666 01... -
Page 3: Product Information
■ Damage to parts that occurs as a result of inadequate maintenance or performed by parties other than Atlas Copco or their Certified Service Partners during the warranty period is not covered by the warranty. ■ To avoid damage or destruction of tool parts, service the tool according to the recommended mainte- nance schedules and follow the correct instructions. -
Page 4: Servaid
Dimensional Drawings can be found either in the Dimensional Drawings Archive, or on ServAid. Please visit: http://webbox.atlascopco.com/webbox/dimdrw or https://servaid.atlascopco.com. Overview Technical Product Data Technical Product Data can be found on either ServAid, or the Atlas Copco website. Please visit: https://servaid.atlascopco.com or www.atlascopco.com. Service Overview Overview The table below shows the recommended service interval. -
Page 5: Overhaul And Preventive Maintenance
If the product is not working properly, take it out of service and inspect it. If no detailed information about preventive maintenance is included, follow these general guide- lines: ■ Clean appropriate parts accurately ■ Replace any defective or worn parts © Atlas Copco Industrial Technique AB - 9834 4666 01... -
Page 6: Installation
Air Quality ■ For optimum performance and maximum product life we recommend the use of compressed air with a maximum dew point of +10°C (50°F). We also recommend to install an Atlas Copco refrigeration type air dryer. ■ Use a separate air filter which removes solid particles larger than 30 microns and more than 90% of liquid water. -
Page 7: Operation
Use extensions and standard sockets instead of long or extra long sockets as the lower inertia/mass of the extension will give less stress on the impact mechanism. However an extension will reduce the applied torque to some degree. © Atlas Copco Industrial Technique AB - 9834 4666 01... -
Page 8: Tightening Torque
(diameter or length) will overload the impact mechanism and reduce the life of vital parts. Use the impact wrench within the specified torque range. Never override the recommended maximum tightening torque. © Atlas Copco Industrial Technique AB - 9834 4666 01... -
Page 9: Service
Replace any defective or worn parts Inspection of strainer Clean the strainer at the air inlet frequently to prevent clogging which decreases the capacity of the tool. Replace a defective or worn strainer. © Atlas Copco Industrial Technique AB - 9834 4666 01... -
Page 10: Inspection Of Motor Parts
Use lubricants of good quality. The oils and greases listed in the lubrication table are examples of lubri- cants that can be recommended. General purpose Brand Bearings Impact mechanism Energrease LS-EP2 Castrol Spheerol EP L2 © Atlas Copco Industrial Technique AB - 9834 4666 01... -
Page 11: Lubrication Of Motor Parts
Apply a layer of oil where indicated. Lubrication of impact mechanism Spread a thin layer of grease on all sliding and impact surfaces, inside the cavity of the hammer and on the driver flange. © Atlas Copco Industrial Technique AB - 9834 4666 01... -
Page 12: Recycling
When a product has served its purpose it has to be recycled properly. Dismantle the product and recycle the components in accordance with local legislation. Batteries shall be taken care of by your national battery recovery organization. © Atlas Copco Industrial Technique AB - 9834 4666 01... - Page 16 Original instructions © Copyright 2020, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. Atlas Copco Industrial This applies in particular to trademarks, model denominations, part numbers Technique AB and drawings.
