Matter No. 9836 6504 00
Valid from Serial No. B5440001
2014-11
LMS58 HR20 (300-800 Nm)
all safety warnings and instructions
Failure to follow the safety warnings and
instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference
1580 01
ARNING

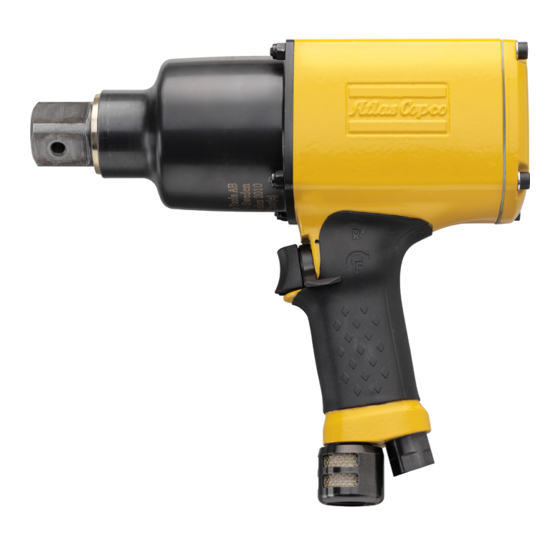

Impact Wrench
Product Instructions
Advertisement
Table of Contents
Related Manuals for Atlas Copco LMS58 HR20
Summary of Contents for Atlas Copco LMS58 HR20
- Page 1 Matter No. 9836 6504 00 Impact Wrench Valid from Serial No. B5440001 Product Instructions 2014-11 LMS58 HR20 (300-800 Nm) 1580 01 ARNING all safety warnings and instructions Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.
- Page 2 Table of content LMS58 HR20 able of content Product information ...............3 Installation ..................5 Operation ..................7 Service ..................8 Spare part list ................15 Accessories .................19 © Atlas Copco Industrial Technique AB - 9836 6504 00...
-
Page 3: Warranty
NOTICE is used to address practices not related to personal injury. Warranty Contact the Atlas Copco sales representative within your area to claim a product. Warranty will only be approved if the product has been installed, operated and overhauled according to the Operating Instructions. -
Page 4: Product Information
Copco Industrial Technique AB! If it is judged that the electric motor is defect or in need of service, the complete motor unit should be returned to Atlas Copco for exchange. Motors which have been opened by anyone else than Atlas Copco will not be serviced. -
Page 5: Air Quality
D = Number of drops per min (1 drop = 15 mm L* 0.2 = D this applies to the use of long work cycle air line tools. A single point lubricator type Atlas Copco Dosol can also be used for tools with short running cycles. -
Page 6: Installation
ErgoNIP 10 0.7 m RUBAIR 13 Nipple is included• with the tool 8202 1180 21 more information please read, Atlas Copco Industrial Power Tools catalogue Ordering No. 9837 3000 01. © Atlas Copco Industrial Technique AB - 9836 6504 00... -
Page 7: Operation
Never exceed the recommended maximum tightening torque. Test methods Measurement using a hydraulic Torque Tension tester is recommended for testing tool performance, see Test data. © Atlas Copco Industrial Technique AB - 9836 6504 00... - Page 8 Lubricate the threads with grease prior to fitting. A All O-rings must be greased prior to assembly. When the machine is in constant operation, installation of an Atlas Copco DIM oil mist lubricating device or a Dosol type single point lubricating device is recommended.
- Page 9 / bolt size Drive Socket size Socket length Socket size Socket opening size d (max) L (max) D (max) A/F (max) B (max) 3/4" 54mm 65mm 57mm 36mm (1 3/8") M24 (1") © Atlas Copco Industrial Technique AB - 9836 6504 00...
- Page 10 L=100mm, D=39mm, d=31.5mm 4080 0207 02 Support ring L=50mm, D=51mm, d=41mm Motor Screw Socket Washer Screw Ref. No. Ordering No. Description / Included in Service kit 4080 0206 08 Mandrel © Atlas Copco Industrial Technique AB - 9836 6504 00...
-
Page 11: Motor Bearings
Clutch jaw Driver A (max) B (max) C (max) 2.3 mm 2.3 mm 2.9 mm Inspection of silencer Change or clean the filters regularly. Clogged filters will reduce power output. © Atlas Copco Industrial Technique AB - 9836 6504 00... -
Page 12: Lubrication Guide
Use the rest of the grease, approximately half the amount, inside the cavity of the hammer and on the driver flange. Total grease amount 8.5ml. © Atlas Copco Industrial Technique AB - 9836 6504 00... - Page 13 LMS58 HR20 Service of motor parts No grease is needed for protected Ball bearings (ex. 2Z). • Where oil is needed, apply only a thin layer. • © Atlas Copco Industrial Technique AB - 9836 6504 00...
- Page 14 4200 rpm 16 mm (5/8”) LMS88 Skidmore-Wilhelm model K 2” 660 kN 3200 rpm 16 mm (5/8”) * = If Free speed is to low: check silencer for clogged filters. © Atlas Copco Industrial Technique AB - 9836 6504 00...
-
Page 15: Spare Part List
Spare parts Parts without ordering number are not delivered separately for technical reasons. The use of other than genuine Atlas Copco replacement parts may result in decreased tool performance and increased maintenance and may, at the company option, invalidate all warranties. - Page 16 Ø68 x 10 mm. Service tool for dismantling/ assembling of Motor bearings. For further information, pls see Service instructions 4080 0206 07 Mandrel Ø55/65 mm. Service tool for dismantling of Motor bearings. For further information, pls see Service instructions © Atlas Copco Industrial Technique AB - 9836 6504 00...
- Page 17 4250 2791 00 Cover 19(20-21) 4250 2039 90 Adapter, compl. G3/8”. With NPT-thread (for the US, Canada) 4250 2039 91 O-ring 15.1x1.6 / Small parts kit 4082 0001 90 Adapter © Atlas Copco Industrial Technique AB - 9836 6504 00...
-
Page 18: Service Kits
Clutch hous- Mandrel Ø31.5/39 mmService tool for dismantling/ assembling of Bushing. For further informa- tion, pls see Service instructions Clutch hous- 0902 0112 00 Allen key 4 mmAccessory included. Service tool. © Atlas Copco Industrial Technique AB - 9836 6504 00... - Page 19 For assembly and disassembly of motor into casing, see service instruction Suspension yoke Ref. No. Ordering No. Description / Included in Service kit 4250 0872 00 Suspension yoke Can be adjusted to fit different hole patterns. © Atlas Copco Industrial Technique AB - 9836 6504 00...
- Page 20 © Copyright 2012, Atlas Copco Industrial Technique AB. All rights reserved. Any unauthorized use or copying of the contents or part thereof is prohibited. This Technique AB applies in particular to trademarks, model denominations, part numbers and SE-10523 STOCKHOLM drawings. Use only authorized parts. Any damage or malfunction caused by the Sweden use of unauthorized parts is not covered by Warranty or Product Liability.
