Owner's Manual
Please read and save these instructions. Read carefully before attempting to assemble,
install, oper- ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with
instructions could result in personal injury and
future reference.
Portable
Description

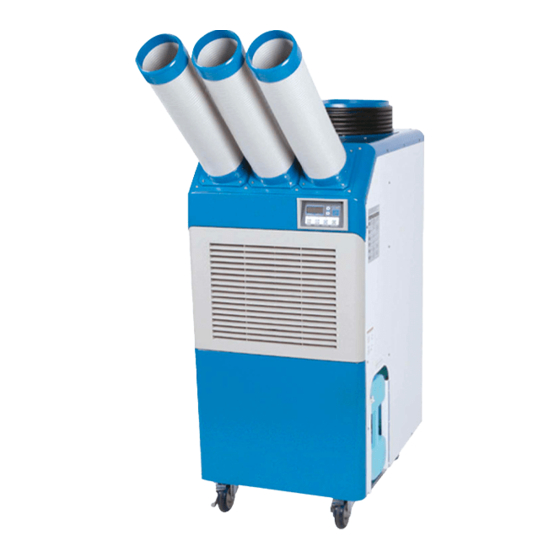

STAR PROGETTI Portable Air Conditioners feature spot
cooling for large areas where cooling of the entire area is not
practical. A dedicated spot cooling thermostat controls the unit
in this application.
These air conditioners can also be used in smaller areas for room
cooling.
A control panel provides ease of use and contains a self-diag-
nostic function and display, showing operating modes, room and
set temperatures, and faults.
If an abnormal operation occurs, a visual display of the fault is
shown. Caster wheels are included for easy portability. Suitable
applications include: a factory or work place, computer room,
emergency cooling, etc.
Unpacking
After unpacking the unit, carefully inspect unit for any damage that may have
occurred during transit. Check for any loose, missing, or damaged parts.
Specifications
Coolling Capacity
Model
SC25000
25.000 BTU
(7.3Kw)
Depth / Width/
Model
Height/ Weight
SC25000
561 / 747 / 1202
(mm) / 96 kg
/
or property damage! Retain instructions for
Air Conditioners
Refrigerant
Alettrical supply Rated current
R410A
230V,1phase
(1.18kg)
50hz
Fan speeds Air flow (high/low)
2
650 / 580 CFM
1
SC25000
Figure
1
Power
Amps
consumption
Watt
12,6 A
2,9 KW
Operating
Noise level at 3m
range
(high/low)
BELOW 50 dBA
18~45°C
SC25000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC25000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Star Progetti SC25000

  • Page 1 Portable Air Conditioners Description STAR PROGETTI Portable Air Conditioners feature spot cooling for large areas where cooling of the entire area is not practical. A dedicated spot cooling thermostat controls the unit in this application. These air conditioners can also be used in smaller areas for room cooling.
  • Page 2: Safety Information

    Owner’s ManualSC25000 “Original instructions” General SC25000 Safety Information Please read this manual carefully for instructions on correct installation and usage. Please read all safeguards. Transport and store the unit in an upright position only. Leave unit in an upright position for at least 3 hours before first use.
  • Page 3 SC25000 DO NOT operate a unit with a damaged power WARNING : cord.. 19.The filters must be used with the product at all times. When the filters are removed clean- ing, always ensure that the unit has been turned off and unplugged from the electrical outlet.
  • Page 5 Do not use de unit with a temperature lower than 18°C(64°F) or higher than 45°C(113°F) ※ Replaceable Fuse Rating - FUSE 1, 2 : 3.15A / 250V, 20 x 50mm, Equivalent...
  • Page 6: Operation Control Panel

    SC25000 OPERATION CONTROL PANEL Figura 8 POWER BUTTON: Activates unit when POWER BUTTON is pressed. (Fan starts on low speed). If power button is pressed during operation, unit stops. BLOWER BUTTON: Changes fan speed from (Low) to (High) when pressed.
  • Page 7: Maintenance

    MAINTENANCE SC25000 FILTER CLEANING (See Figures 9 and 10) There are two filters in the unit. The evaporator filter is located at the front of the unit. The condenser filter is located at the side of the unit. loosen up 2 bolts on the front filter guard.
  • Page 8: Spring Replacement

    SC25000 Maintenance (Continued) To ensure your product is covered by warranty, the complete faulty product along with your original purchase receipt must be provided at the place of purchase.. Product Portable Air Conditioner Customer: Please read and keep Modello No. __________________________...
  • Page 10: Wiring Diagram

    Wiring Diagram Figure 12 - Circuit Wiring Diagram (SC25000) Reset Fig.13...
  • Page 11 Fig.13...
  • Page 12 STAR PROGETTI ONE-YEAR LIMITED WARRANTY. STAR PROGETTI PORTABLE AIR CONDITIONERS, MODELS COVERED IN THIS MANUAL, ARE WARRANTED BY STAR PROGETTI TO THE ORIGINAL USER AGAINST DEFECTS IN WORK MANSHIP OR MATERIALS UNDER NORMAL USE FOR ONE YEAR AFTER DATE OF PURCHASE. ANY PART WHICH IS DETER- MINED TO BE DEFECTIVE IN MATERIAL OR WORKMANSHIP AND RETURNED TO AN AUTHORIZED SERVICE LO- CATION, STAR PROGETTI DESIGNATES, SHIPPING COSTS PREPAID, WILL BE, AS THE EXCLUSIVE REMEDY, REPAIRED OR REPLACED BY STAR PROGETTI OPTION.
