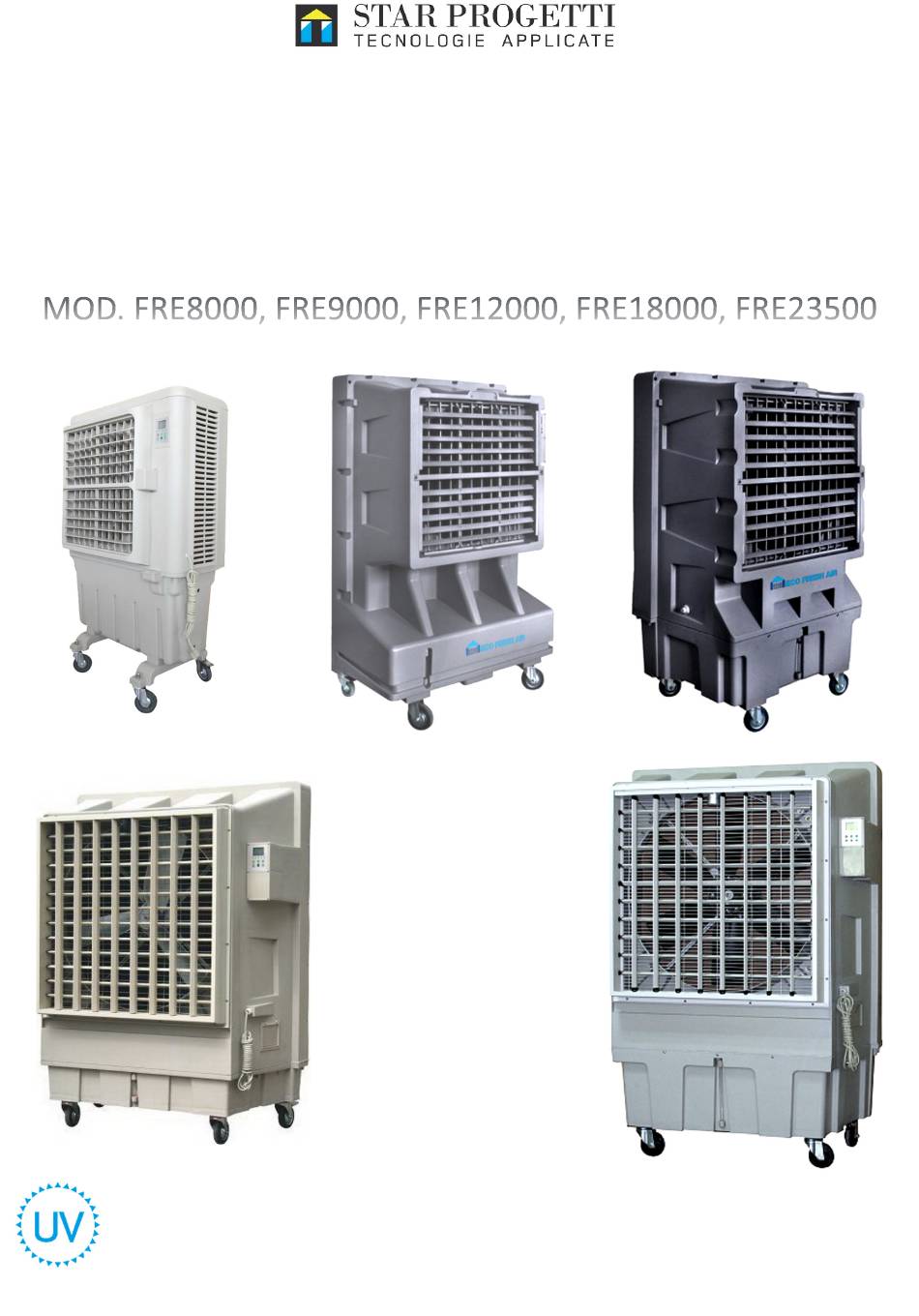

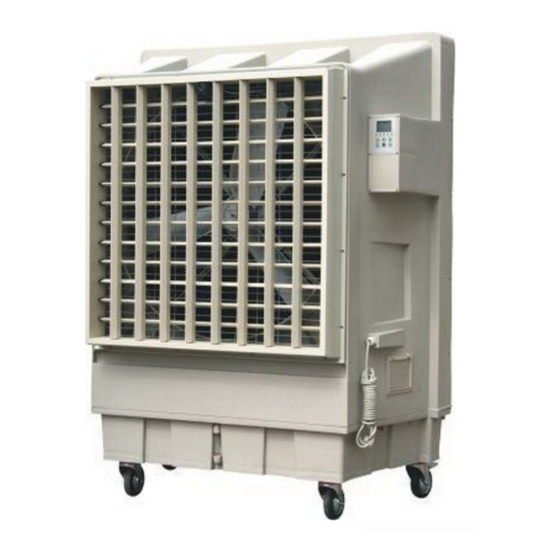

- Page 1 ECO FRESH AIR AIR COOLER INSTRUCTION MANUAL IPX4 FOR OUTDOOR USE NEW WITH UV DEVICE FOR WATER STERILIZATION...
- Page 2 When in use, our ECO FRESH AIR cooler prevents the development of pathogens caused by stagnant or contaminated water. Star Progetti is the first to adopt this solution, which is part of our corporate strategy aimed at offering customers the best possible product with a full guarantee of well-being and health.
-
Page 3: Important Warnings
Read the instructions contained in this booklet carefully before using the appliance. Rubisolis cannot assume any responsibility for damage to property or personal injury resulting from failure to abide by the instructions given in this booklet. Following these instructions will ensure a long service life and overall electrical and mechanical reliability. -
Page 4: Technical Feature
APPLICATIONS This cooler is currently being used in many different industries and applications in many countries. Company offices, shops, hospitals, schools, workshops, workers dormitories, outdoor teahouse/coffee bars, restaurants, recreation facilities. Manufacturing: Textile, machinery, ceramic, refined chemical industries, metallurgy, hardware and leather industries. Industrial processing: Electronics, clothes &... - Page 5 MODEL MODEL MODEL MODEL / CODE / CODE / CODE / CODE KT KT KT KT- - - - 20 20 20 20 / / / / FRE FRE9 9 9 9 000 Max Airflow (m 9000 Power supply/Frequency (V/HZ) 220-240/50 Power Consumption (W) Fan Style...
- Page 6 OPERATION INSTRUCTION ON/OFF This turns the cooler on or off. COOL This activates the cooling function. Note that there is a delay of one minute before the fan starts while the cooling pads wet up. BLAST When COOL is pressed again, the water evaporation feature is turned off, with only the fan operating. SPEED Pressing SPEED will select low, medium or high fan speed.
-
Page 7: Maintenance
PLEASE READ THE MANUAL CAREFULLY BEFORE OPERATING THE COOLER. A) Operating conditions: 1- Temperature: 18℃ to 45℃; Water Temperature: < 45℃. 2- Power supply must not exceed the required voltage (+/-) 5%. 3- Air supply must be largely free of dust or extra cleaning is required. B) Protect the power cable from vehicle or foot traffic. -
Page 8: Troubleshooting
NOTE: THIS INSTRUCTIONAL CHART IS FOR REFERENCE PURPOSES ONLY, IF ANY TECHNICAL ASSISTANCE IS NEEDED, PLAESE CALL STAR PROGETTI'S OFFICES FOR SERVICE/REPAIR AT NO. 02/90639261 ext. 7 Keep the original packaging... -
Page 9: Recommendations For Use
RECOMMENDATIONS FOR USE • In order to avoid any water sprays to come out from the fan, the cooler, under normal working conditions, should be placed on a flat surface, and its cellulose panels perpendicular to the floor. • When it is first switched on, it is recommended to fill the tank as per instructions and run one-hour cycle at least with the COOL function ON and the fan operating speed set to the minimum. - Page 10 ANTI-LIMESCALE FILTER, EXTERNAL, WITH POLYPHOSPHATES, FOR CONNECTION TO WATER NETWORK PROTECTING YOUR ECOFRESH AIR COOLER AGAINST LIMESCALE ANTI-LIMESCALE FILTER TO BE APPLIED AT THE OUTLET OF THE WATER TAP, SUPPLYING THE COOLER TANK. THANKS TO THIS EFFECTIVE SYSTEM, YOU CAN PROTECT YOUR AIR COOLER AGAINST LIMESCALES WHICH, IN THE LONG RUN, MIGHT DAMAGE THE PUMP.
- Page 11 TELECOMANDO TELECOMMANDE REMOTE CONTROLLER PANNELLO DI CONTROLLO PANNEAU DE CONTROLE CONTROL PANEL SCHEMA ELETTRICO DIAGRAMME ÉLECTRIQUE DIAGRAM...
- Page 12 FRE8000 COMPONENTI PRINCIPALI- KEY COMPONENTS COVER SUPERIORE COMPOSANTS CLÉS TOP COVER CARROSSERIE RAFRAICHISSEUR PANNELLO LCD CONTROL PANNEL WITH LCD DIFFUSORE PANNEAU LCD DIFFUSER DIFFUSEUR RETE LATERALE LATERAL GRILLE INGRESSO ACQUA RIEMPIMENTO MANUALE SERBATOIO ACQUA MANUAL WATER FILLER WATER TANK REMPLISSAGE MANUEL DE L'EAU RESERVOIR D'EAU ROTELLE POSTERIORI CON FRENO BACK SWIVEL CASTER...
- Page 13 FRE9000 COMPONENTI PRINCIPALI- KEY COMPONENTS COVER SUPERIORE COMPOSANTS CLÉS TOP COVER CARROSSERIE RAFRAICHISSEUR DIFFUSORE PANNELLO LCD DIFFUSER CONTROL PANNEL WITH LCD DIFFUSEUR PANNEAU LCD COLLEGAMENTO CONTINUO INGRESSO ACQUA ALLA RETE IDRICA RIEMPIMENTO MANUALE EXTERNAL HOSE CONNECTION POINT MANUAL WATER FILLER CONNEXION AU ROBINET D'EAU REMPLISSAGE MANUEL DE L'EAU...
- Page 14 FRE12000 COMPONENTI PRINCIPALI- KEY COMPONENTS COVER SUPERIORE TOP COVER COMPOSANTS CLÉS CARROSSERIE RAFRAICHISSEUR DIFFUSORE PANNELLO LCD DIFFUSER CONTROL PANNEL DIFFUSEUR WITH LCD PANNEAU LCD COLLEGAMENTO CONTINUO ALLA RETE IDRICA INGRESSO ACQUA EXTERNAL HOSE RIEMPIMENTO MANUALE CONNECTION POINT MANUAL WATER FILLER CONNEXION AU ROBINET REMPLISSAGE MANUEL DE D'EAU...
- Page 15 FRE18000 - FRE23500 COMPONENTI PRINCIPALI- KEY COMPONENTS COVER SUPERIORE TOP COVER COMPOSANTS CLÉS CARROSSERIE RAFRAICHISSEUR MOTEUR OSCILLANT SWING MOTOR CONTROL PANNEL WITH LCD PANNEAU LCD DIFFUSER DIFFUSEUR HELICE WATER TANK RESERVOIR D'EAU RIEMPIMENTO MANUALE MANUAL WATER FILLER REMPLISSAGE MANUEL DE L'EAU WATER GAUGE BACK SWIVEL CASTER INDICE DU...
- Page 16 BULBO UV SERBATOIO ACQUA UV BULB WATER TANK LAMPE UV RESERVOIR D'EAU POMPA DELL’ACQUA WATER PUMP POMPE DEL'EAU...
- Page 17 CERTIFICATO DI GARANZIA Ci complimentiamo con Lei per l’acquisto del nostro FRE8000, FRE9000, FRE12000, FRE18000, FRE23500. La durata della garanzia è di 12 mesi, decorre dalla data di acquisto dell’apparecchio e cessa dopo il periodo prescritto. La ricevuta fiscale o altro documento valido fiscalmente comprova la decorrenza della garanzia. Si garantiscono tutte le sostituzioni o riparazioni che si rendessero necessarie a causa di difetti di materiale o di costruzione.
- Page 18 IPX4 Ed 012020...
