Owner's Manual
SC21000
Please read and save these instructions. Read carefully before attempting to assemble, install,
oper- ate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could
result in personal injury and / or property damage! Retain instructions for future reference.
Portable Air Conditioners
Description
STAR PROGETTI Portable Air Conditioners feature spot
cooling for large areas where cooling of the entire area is not
practical. A dedi- cated spot cooling thermostat controls the
unit in this applica- tion. These air conditioners can also be
used in smaller areas for room cooling.
A control panel provides ease of use and contains a self-
diag- nostic function and display, showing operating modes,
room and set temperatures, and faults. If an abnormal
operation oc- curs, a visual display of the fault is shown.
Caster wheels are included for easy portability.
Suitable applications include: a factory or work place,
industrial kitchen, computer room, emergency cooling,
outdoor event,
etc.

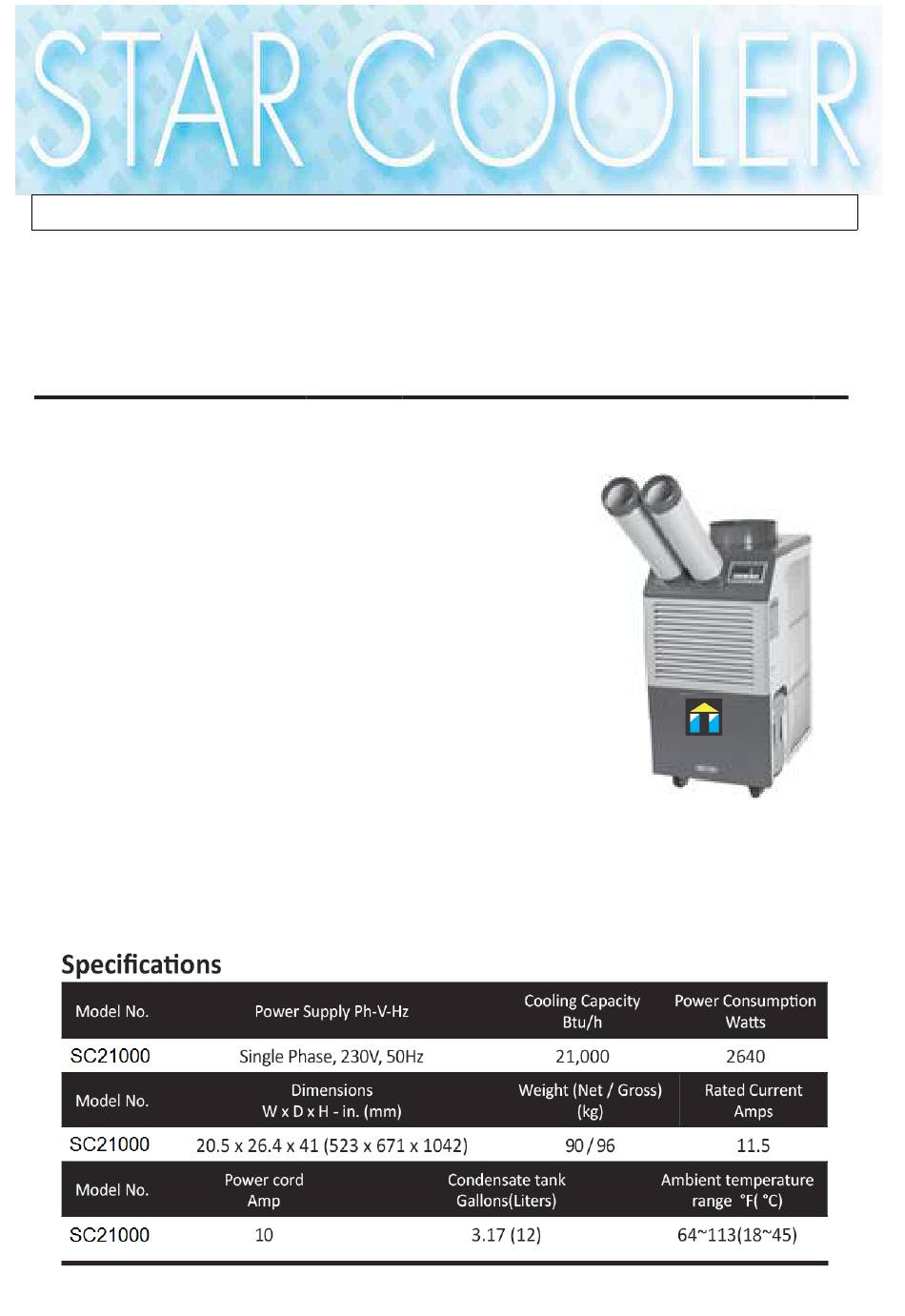

SC21000
Figure 1
Unpacking
After unpacking the unit, carefully inspect unit for any damage that may have occurred during
transit. Check for any loose, missing, or damaged parts.
1
