Summary of Contents for Star Progetti Brezza 170

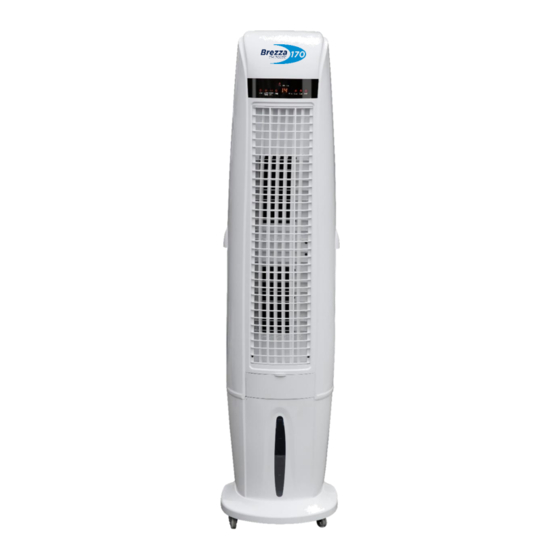

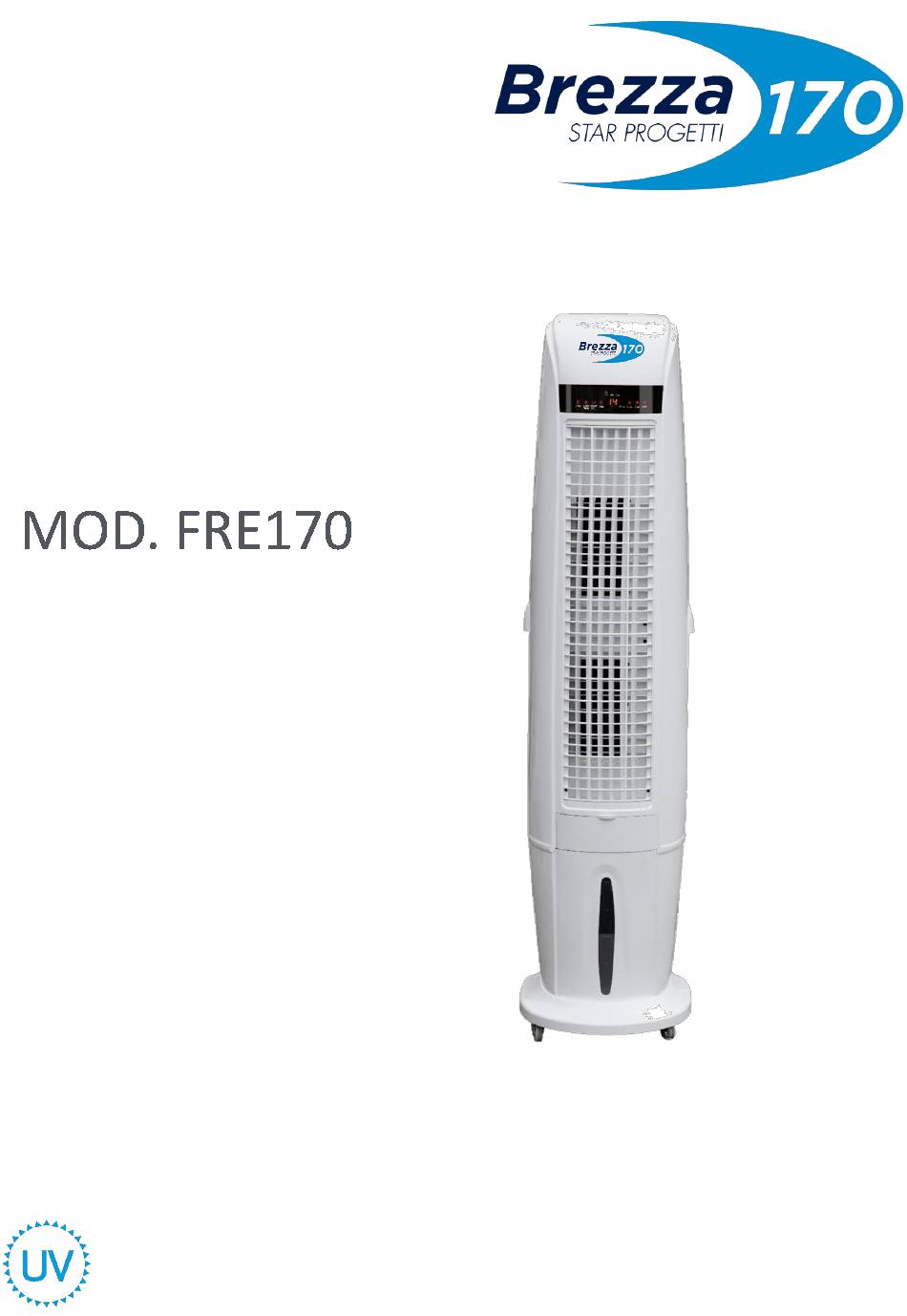

- Page 1 AIR COOLER INSTRUCTION MANUAL NEW WITH UV DEVICE FOR WATER STERILIZATION...
- Page 2 Important information for environmentally friendly disposal IN SOME EU COUNTRIES THIS PRODUCT DOES NOT FALL INTO THE SCOPE OF APPLICATION OF THE ITALIAN DOMESTIC LAW ACKNOWLEDGING THE RAEE DIRECTIVE AND THEREFORE THERE IS NO OBLIGATION IN FORCE TO SEPARATE MATERIALS AT THE END OF THEIR USEFUL LIFE. This product complies with Directive 2012/19/UE.
- Page 3 When in use, our BREZZA cooler prevents the development of pathogens caused by stagnant or contaminated water. Star Progetti is the first to adopt this solution, which is part of our corporate strategy aimed at offering customers the best possible product with a full guarantee of well-being and health.
-
Page 4: Product Features
PRODUCT FEATURES Cool It cycles the water to blow cool air. It can lower the surrounding temperature and provide you a comfortable environment in hot summer. Built-in water tank, detachable filtration mesh It is easy to clean. Filter removes harmful tiny substances, such as dust and pollen. ... - Page 5 SPARE PARTS Designation Quantity(pcs) Air cooler instruction manual remote control TECHNICAL PARAMETERS MODEL FRE170 Ratings 220-240V/50Hz 350W MAX Air Flow Consumption 3500m³/h MAX Water Volume Net Weight 18KGS Measurements 416X515X1700mm MODEL UV BULB E17-3W Mini UV bulb Ratings AC 10V 3W Note: Due to constant development of our products in regard to specification and design, we take reservation for changes without prior notice.
- Page 6 Note: Water level must be between the MIN and MAX line. After few days operation, dust and dirt may reserve in water tank. It is recommended to change water and clean water tank frequently. WATER INLET 5. Only use the unit with correct power required. 6.
-
Page 8: Control Panel And Operation
CONTROL PANEL AND OPERATION (Romote controller control panel with the same function as the unit control panel) - Page 9 ON/OFF: Press once this button to make the unit ready for working. It will start up with MID in 3 seconds and then revert to work under the memorized status. If for first time use, it will start up with MID in 3 seconds and then work with LOW. Press again this button to turn OFF.
-
Page 10: Important Precautions
IMPORTANT PRECAUTIONS 1. READ ALL INSTRUCTIONS BEFORE USE. 2. DO NOT open and repair the appliance by unqualified personnel. 3. To avoid electric shocks, keep the appliance dry. Do not use with wet hands. 4. Remove the plug from the socket when filling the water tank, cleaning, maintenance or moving the appliance. - Page 11 21. Do not use the appliance if the electric cable is damaged. Send to the repair center. If the power cord is damaged, it must be replaced with a cable or other specific piece provided by the manufacturer or his service representative. 22.
-
Page 12: Maintenance And Cleaning
MAINTENANCE AND CLEANING Note: After long time operation, the filtration mesh becomes clogged with dust and dirt, which will greatly affect the unit’s performance. It is recommended to clean the filtration mesh frequently. Cleaning the filtration mesh 1. Remove plug from power. 2. -
Page 13: Troubleshooting
2. Water pump pumping obstructed. 2. Clean water tank discharge impurities. NOTE: THIS INSTRUCTIONAL CHART IS FOR REFERENCE PURPOSES ONLY, IF ANY TECHNICAL ASSISTANCE IS NEEDED, PLAESE CALL STAR PROGETTI'S OFFICES FOR SERVICE/REPAIR AT NO. 02/90639261 ext. 2... - Page 14 RECOMMENDATIONS FOR USE • In order to avoid any water sprays to come out from the fan, the cooler, under normal working conditions, should be placed on a flat surface, and its cellulose panels perpendicular to the floor. • When it is first switched on, it is recommended to fill the tank as per instructions and run one- hour cycle at least with the COOL function ON and the fan operating speed set to the minimum.
- Page 17 The eventual repairs recognized in guarantee will be carried out free of charge for those appliances returned free STAR PROGETTI’s factory or to one of the authorized distributors. All transport costs are to be paid by the customer.
- Page 18 02/2020...
