- Page 1 THE PERFECT BALANCE OF FUNCTION AND STYLE LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Integrated Freezer - In Column MITF8 5 - 88cm - Slider Fixings Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
Contents Safety Instructions ………………………………………. Electrical Safety ………………………………………. Transportation & Handling ………………………………………. Installing & Switching on your Appliance ………………………………………. Before Switching On ………………………………………. Product Overview ………………………………………. Unit & Spare Parts ………………………………………. Usage ………………………………………. Temperature Selection ………………………………………. Installation ………………………………………. 10-17 Door Reversal ………………………………………. -
Page 4: Safety Instructions
Safety Instructions Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet. • This model uses natural refrigerant gas as part of its cooling system. This gas is known as R600a (Isobutene) and is environmentally friendly but can be combustible. -
Page 5: Electrical Safety
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 6: Transportation & Handling
Transportation and Handling For safe lifting, tilt the appliance backwards by no more than 45 degrees, hold the base and rear corners of cabinet. Lift the refrigerator carefully. Never use the door handles for lifting. To move the refrigerator on a flat level surface, tilt it slightly backwards and push backwards. -
Page 7: Before Switching On
• Choose a dry and well-ventilated space. • The appliance should be positioned so that the plug is easily accessible. Before Switching On • Before using your appliance, add a teaspoon of bicarbonate of soda to warm water and with a damp cloth wipe down all parts of the new appliance, then repeat the process with a clean damp cloth and dry. -
Page 8: Product Overview

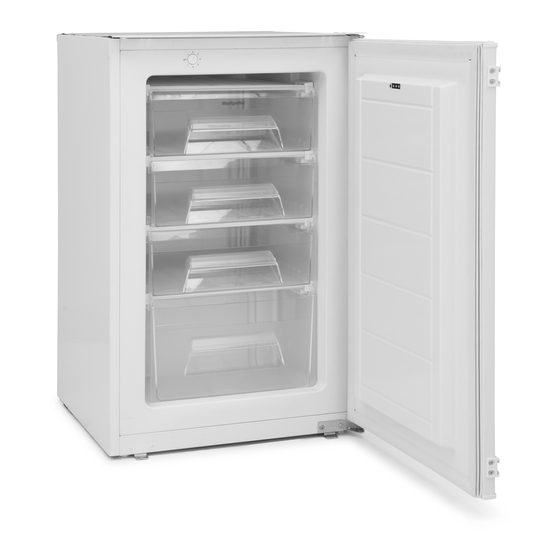

Product Overview Thermostat Drawers Feet (adjustable feet at the front) 1 x ice cube tray, 1 x ice scraper Installation accessories Unit Parts & Spare Parts Before installation, check that all parts detailed in the product overview are present. -
Page 9: Usage
Usage We advise that you allow your freezer to stand for a minimum of 3 hours before plugging it into the mains. The temperature in the appliance is controlled by the temperature control dial or thermostat located inside the freezer. Rotate the control dial left or right to regulate the temperature inside the freezer. - Page 10 Usage Allow to stand for a minimum of 3 hours before plugging it into the mains. Note: The standard operating temperature for the freezer compartment should be between -18°C and -25°C. Note: The temperature of the f stored food and how often the door is opened affects the temperature in the compartment.
-
Page 11: Installation
Installation • This appliance can be installed as a built in unit only. The clearances shown in the below drawing must be followed. • Avoid damaging the product during installation, positioning of the appliance requires two people in order to avoid injuries or damage to the appliance. •... - Page 12 Installation The aperture size has to be a minimum of (H)877 x (W)560 x (D)550mm. The cabinet in which the appliance is housed in must have a ventilation recess of (W)540 x (D)50mm.
- Page 13 Installation The cabinet in which the appliance is housed in must have a ventilation recess of (W)540 x (D)50mm. Wooden back panel cut out (if applicable) Carefully push the appliance into the housing, ensuring that the cabinet doors are able to fully close.
- Page 14 Installation Rollout the joint cover and on the side of the appliance without the hinges press it between the appliance and the inside of the cabinet wall (start from the bottom and work upwards). Open the door and push the side of the appliance without the hinges against the side of cabinet wall.
- Page 15 Installation Apply a foot blanking covers by clipping them in to place on the feet at the bottom of the appliance. The plastic stem on the foot caps are there as a guide of what the distance between the product and the edge of the cabinet should be (approximately 42mm).
- Page 16 Installation – Door attachment 1. Locate parts A and B (see the below) in the bag with the installation accessories: A. Door guide B. Door guide cover 2. Open the cabinet door and the freezer door, mark on the back of the cabinet door where the top of the freezer door reaches.
- Page 17 Installation – Door attachment 4. Open the appliance door and the cabinet door to 90°, remove the 2 screws from the door guide holder that is already prefixed to the door and place it on to the door guide (part A). Push the appliance door and the cabinet door together, align the holes on the door guide holder and the holes on the edge of the door and fix into place with the 2 screws that were removed previously.
- Page 18 Installation – Door attachment 7. You will then have to repeat these steps at the bottom of the freezer door, please ensure you follow the below diagram when locating the door guide (part A) on the bottom of the freezer door. 8.
-
Page 19: Door Reversal
Door Reversal To reverse the door you will need to tilt the appliance backward to access the lower hinge which holds screws. Do not tilt the appliance more than 45 degrees and do not lay the appliance flat on its side. For your own safety, a minimum of 2 people should lift or tilt this product. - Page 20 Door Reversal 2. Unscrew the 2 screws from the lower hinge and remove the hinge. Do not fix the hinge to the opposite side at this stage. 3. Remove all of the screw cap covers on the opposite side of the appliance from where the hinges have just been removed.
- Page 21 Door Reversal 5.Move the top hinge from right to the left of the appliance and put the pin of the hinge into the top of the door and fix it in to place. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge pin.
-
Page 22: Energy Saving Advice
Energy Saving Advice • Do not install the appliance close to sources of heat, such as a cooker, dishwasher or radiator. • Locate the appliance in a cool well-ventilated room and make sure that the air vents are clear. • Try to avoid keeping the doors open for a long time, as warm air will enter the cabinet and may cause an excessive build-up of ice as well as affecting the energy consumption. -
Page 23: Maintenance & Cleaning
Maintenance & Cleaning Disconnect the appliance from the power supply before cleaning. Internal Cleaning • Do not pour water over the appliance. • The cavity should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water (5ml to 0.5 litre of water) •... -
Page 24: Trouble Shooting
Trouble shooting Problem Solution Check that the appliance is switched on. Check that there has not been a power cut. Check that the plug is not faulty. Check that the fuse has not blown. The freezer doesn't work Check that the voltage is correct for the appliance. Are there any faults with the socket? For this purpose, try the plug of your appliance by connecting it to a socket which you are sure is working. - Page 25 Trouble shooting Problem Solution Check all the food and drink that is in the freezer is in date and correctly packaged. If it isn’t then it should be removed immediately or repackaged. Check for spillages on each shelf, rack and drawer. You may need to remove the drawers to check that no spillages have settled underneath them.
-
Page 26: Connection To The Mains Supply
Connection to the Mains Supply WARNING- THIS APPLIANCE MUST BE EARTHED This appliance is designed to operate from a mains supply of AC220V - 240V; 50HZ. Check that the voltage marked on the product corresponds with your supply voltage. For UK use only – Plug fitting details (where applicable): As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The GREEN/YELLOW wire is the EARTH and must be connected to the terminal which... -
Page 27: Technical Specification
Technical Specification Manufacturer/Model number Montpellier - MITF85 220v - 240v ~ 50Hz Rated Voltage Capacity Energy efficiency Class 116 kW/h Annual energy consumption 39dB Max noise level ST (18°C - 38°C) Climate Class 880mm x 540mm x 540mm External Dimensions(HxWxD) -
Page 28: Guarantee
Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim. - Page 29 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
