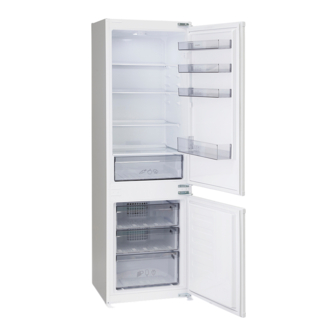

Integrated 70/30 Fridge Freezer
MIFF701 - Static
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MIFF701
Summary of Contents for montpellier MIFF701
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Integrated 70/30 Fridge Freezer MIFF701 - Static Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier Integrated Fridge Freezer. Our refrigeration products have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your Fridge Freezer to ensure you get the most from your purchase.
- Page 3 Please read this manual first! Dear Customer, quality appliance which Congratulations on your choice of a has been designed to give you excellent service. • This manual will help you use your appliance quickly and safely. • Read the manual before installing and operating your product. •...
-
Page 4: Table Of Contents
CONTENTS Installation 1 Your Fridge Freezer Reversing the doors......10 Installation instructions 2 Warnings detailed step by step......12 Compliance with WEEE Directive and Disposing of the Waste Product: ..4 Compliance with RoHS Directive: ..5 5 Using your Appliance Package information ......5 Temperature control and Electrical Requirements ..... -
Page 5: Your Fridge Freezer
Your Fridge Freezer 7 ) Deep-freeze compartment Thermostat control Interior Light ( 8) Adjustable door shelves with audible alarm where applicable) 9) Egg holder Adjustable body shelves 10) Bottle shelf Defrost water collection channel 11) Fridge compartment - drain tube 12) Freezer compartment Crisper Fast-freeze compartment... -
Page 6: Warnings
Warnings • DO NOT connect your appliance to the • To obtain the best possible performance and trouble free electricity supply until all packing and operation from your appliance it is transit protectors have been removed. very important to carefully read these •... -
Page 7: Compliance With Rohs Directive
Please consult mains lead which can only be obtained your local authorities to learn about from a MONTPELLIER Authorised these collection centers. Service Agent. Compliance with RoHS Directive:... -
Page 8: Energy Saving Tips
Important! Fitting A Different Plug 5. Energy consumption of this appliance is measured while freezer As the colours of the wires in the compartment is loaded without mains lead of this appliance may not use of top shelf lid and the drawers correspond with the coloured except the bottom drawer. -
Page 9: Preparation
Preparation WARNING: Do not locate extension Please remember that the sockets or charging transformers/power manufacturer shall not be held liable if supplies or Lithium-Iron battery operated the information given in the instruction products adjacent to the compressor manual is not observed. as they could overheat. -
Page 10: Replacing The Interior Lamp
IMPORTANT: This freezer contains very cold elements and components. To prevent injury; when using this product ensure your hands are dry and avoid prolonged skin contact with cold parts and foodstuffs. - Do not touch frozen food or frozen surfaces with wet hands. - Avoid prolonged touching of frozen food, ice, frozen surfaces. -
Page 11: Installation
Installation Do not place the appliance near cookers, radiators or in direct sunlight as this will cause your appliance to work harder. If next to a source of heat ; maintain the following minimum side clearances: From cookers 50mm (2”) From radiators 300mm (12”) From freezers 25mm (1”) The ambient temperature of the... -
Page 12: Reversing The Doors
REVERSING THE DOORS Top Door 1.Unscrew top hinge (1). 2.Carefully remove the top door (2). 3.Unscrew lower hinge (3). 4.Remove plastic plugs (7 & 8). 5.Refit top hing (1) as lower hinge (17) on the left hand side. 6.Replace top door (18). 7.Refit lower hing (3) as top hinge (19) on the left hand side. - Page 13 Reversing the doors Proceed in numerical order...
-
Page 14: Installation Instructions
Installation instructions detailed step by step No wooden back wall Adjusting the legs (*optional) If your refrigerator is unbalanced: You can balance your refrigerator by turning the legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. - Page 16 Torx Wood Plastic Sheet Wood (PS) (1TW) * Spares Included view 42 mm ≤ 17 Note: Installation step for 2, screws for connecting top plastic part should not be screwed very hard, because of moving the plastic part easily left or right side.
- Page 18 4 2 . (1TW) 4 2 ,...
- Page 19 (1TW) 4 2 , (1TW) 2.0 mm...
- Page 20 21 mm 2 mm 2 mm 2 mm...
-
Page 21: Using Your Appliance
Using your Appliance TEMPERATURE CONTROL Defrost AND ADJUSTMENT A) Fridge compartment Fridge compartment performs full- automatic defrosting. Water droplets and a frosting up to 7-8 mm can occur on the inner rear wall of the fridge compartment while your refrigerator cools down. - Page 22 B) Freezer compartment Deep freezer compartment does not perform automatic defrosting in order to prevent decaying of the frozen food. Defrosting is very straightforward and without mess, thanks to a special defrost collection basin. Defrost twice a year or when a frost layer of around 7 (1/4”) mm has formed.
-
Page 23: Maintenance And Cleaning
Maintenance and cleaning Protection of plastic Never use gasoline, benzene or surfaces similar substances for cleaning purposes. Do not put the liquid oils or oil- cooked meals in your refrigerator in We recommend that you unplug the unsealed containers as they damage appliance before cleaning. -
Page 24: Possible Solutions For Any Problems
Possible solutions for any problems Please review this list before calling for service. It might save you time and money. This list includes possible complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product. - Page 25 The fridge is running frequently or for a long time. • Your new product may be wider than the previous one. This is quite normal. Large refrigerators operate for a longer period of time. • The ambient room temperature may be high. This is quite normal. •...
- Page 26 Vibrations or noise. • The floor is not even or it is weak. The refrigerator rocks when moved slowly. Make sure that the floor is strong enough to carry the refrigerator, and level. • The noise may be caused by the items put onto the refrigerator. Items on top of the refrigerator should be removed.
- Page 27 Your 5 year Manufacturer’s guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 60 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 60 months prior to the date of claim.
- Page 28 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
