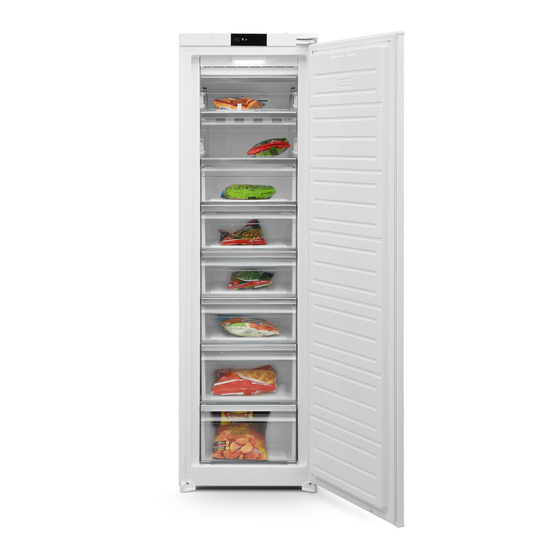

Integrated Tall NoFrost Freezer
MITF197 - 177cm Tall
Please read these instructions carefully before attempting to install or use this appliance.
We recommend that you keep these instructions in a safe place for future reference.
THE PERFECT BALANCE OF FUNCTION AND STYLE
LAUNDRY - DISHWASHING - COOKING - COOLING
Installation and Operating Instructions
Advertisement
Table of Contents
Related Manuals for montpellier MITF197
Summary of Contents for montpellier MITF197
- Page 1 LAUNDRY - DISHWASHING - COOKING - COOLING Installation and Operating Instructions Integrated Tall NoFrost Freezer MITF197 - 177cm Tall Please read these instructions carefully before attempting to install or use this appliance. We recommend that you keep these instructions in a safe place for future reference.
- Page 2 Welcome Thank you for choosing this Montpellier appliance. Our appliances have been designed to provide you with the best combination of style, reliability and performance to give you years of trouble-free use. You may be familiar with a similar product, but please take time to read these instructions carefully before installing or using your appliance to ensure you get the most from your purchase.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ................4 1.1 General Safety Warnings ....................4 1.2 Installation warnings .......................8 1.3 Electrical information (For UK type plug) ................8 1.4 During Usage........................9 2 DESCRIPTION OF THE APPLIANCE ............10 2.1 Dimensions ........................10 2.2 Cabinet Dimensions ......................11 3 USING THE APPLIANCE ................ -
Page 4: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings Read this user manual carefully. WARNING: Make sure that the appliance is left to stand for a minimum of 4 hours before being turned on for the first time. WARNING: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction. - Page 5 If your appliance uses R600a as a refrigerant (this information will be provided on the label of the freezer) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive.
- Page 6 • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 To avoid contamination of food, please respect the following instructions: • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems •...
-
Page 8: Installation Warnings
1.2 Installation warnings • Clearance of at least 150 mm is required at the top of your appliance. Do not place Before using your freezer for the first time, anything on top of your appliance. please pay attention to the following points: •... -
Page 9: During Usage
CE Declaration of conformity 1. Remove the fuse cover and fuse. 2. Fit replacement 13A fuse, ASTA We declare that our products meet the approved to BS 1362 type, into the fuse applicable European Directives, Decisions cover. and Regulations and the requirements listed in the standards referenced. -
Page 10: Description Of The Appliance
2 DESCRIPTION OF THE This presentation is only for information about the parts of the APPLIANCE appliance. Parts may vary according to the appliance model. 1) Control panel 2) Freezer upper room flap 3) Freezer bottom room flap 4) Freezer compartment drawers 5) Left &... -
Page 11: Cabinet Dimensions
2.2 Cabinet Dimensions min.40 mm EN - 11... -
Page 12: Using The Appliance
3.3 Operating your Freezer 3 USING THE APPLIANCE If your product has lighting 3.1 Information on No-Frost technology When the product is plugged in for the No-frost freezers differ from other static first time, the interior lights may turn freezers in their operating principle. on 1 minute late due to opening tests. -
Page 13: Super Freeze Mode
3.3.2 Super Freeze Mode 3.3.3 Economy Mode Purpose Purpose • To freeze a large quantity of food that Energy savings. During periods of less cannot fit on the fast freeze shelf. frequent use (door opening) or absence • To freeze prepared foods. from home, such as a holiday, Eco •... -
Page 14: Screen Saver Mode
3.3.4 Screen Saver Mode Purpose This mode saves energy by switching off all control panel lighting when the panel is left inactive. How to Use Push mode (#3 on control panel diagram) and freezer Set Button (#5 on control panel diagram) for 5 seconds. -
Page 15: Accessories
• Temperature adjustments should be made 4 FOOD STORAGE according to the frequency of door openings, the quantity of food kept inside 4.1 Freezer Compartment the appliance and the ambient temperature in the location of your For normal operating conditions, set the appliance. - Page 16 • The storage life of frozen food depends • Do not refreeze thawed food. It may on the room temperature, the thermostat pose a danger to your health and cause setting, how often the door is opened, problems such as food poisoning. the type of food, and the length of time NOTE: If you attempt to open the freezer required to transport the product from...
- Page 17 Maximum storage time Meat and fish Preparation (months) NOTE: Thawed frozen meat should be cooked as fresh meat. If the meat is not cooked after defrosting, it must not be re-frozen. Maximum storage time Vegetables and Fruits Preparation (months) String beans and beans Wash, cut into small pieces and boil in water 10 - 13 Beans...
-
Page 18: Cleaning And Maintenance
5 CLEANING AND • Remove the water tray from its position by removing the screws (if it has screws). MAINTENANCE Clean it with soapy water at specific time intervals. This will prevent odours from Disconnect the unit from the power forming. -
Page 19: Before Calling After-Sales Service
7 BEFORE CALLING AFTER-SALES SERVICE Errors Your freezer will warn you if the temperature of the freezer is at an improper level or if a problem occurs with the appliance. Warning codes are displayed in the freezer Indicators. ERROR TYPE MEANING WHAT TO DO Call Service for assistance as... - Page 20 Bubbling noise and splash occurs: Due If you are experiencing a problem with to the flow of the refrigerant in the tubes of your appliance, please check the following the system. before contacting the after-sales service. Your appliance is not operating Water flowing noise occurs: Due to Check if: water flowing to the evaporation container.
-
Page 21: Tips For Saving Energy
8 TIPS FOR SAVING ENERGY Recommendations 1. Install the appliance in a cool, well- • If the appliance is switched off or ventilated room, but not in direct sunlight unplugged, wait at least 5 minutes before and not near a heat source (such as a plugging the appliance in or restarting radiator or oven) otherwise an insulating it in order to prevent damage to the... -
Page 22: Information For Test Institutes
For the EU QR code it directs you to the EU EPREL database. For the UK QR code it directs you to the product page on the Montpellier web site and all relevant and downloadable information that is required can be found there. - Page 23 Your 2 year Manufacturer's guarantee THIS DOES NOT AFFECT YOUR STATUTORY RIGHTS. Your new Montpellier appliance carries a free guarantee which protects you against the cost of repairs during the first 24 months from date of purchase provided that: Any claim is accompanied by evidence of the model reference, model serial number and proof of purchase, such as a Sales Receipt, showing that the appliance was purchased within the 24 months prior to the date of claim.
- Page 24 Montpellier Domestic Appliances Ltd. Unit 1, Tewkesbury Retail Park, Northway Lane, Tewkesbury, Gloucestershire GL20 8JU www.montpellier-appliances.com The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
