PLEASE READ BEFORE USE AND SAVE.
Charge the battery for about 15 hours before initial use.
Panasonic World Wide Web address: http://www.panasonic.com
for customers in the USA or Puerto Rico

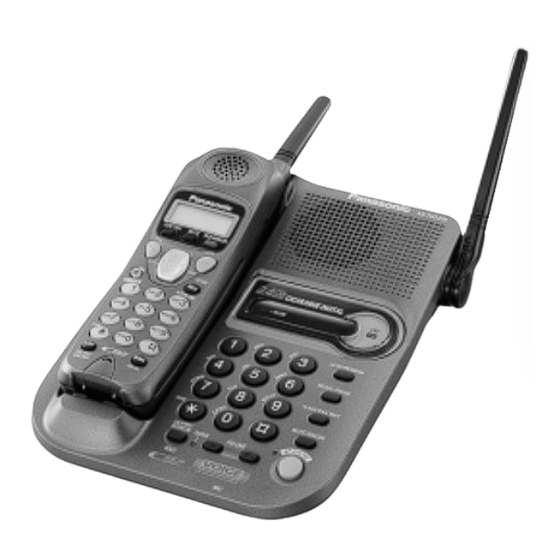

2.4GHz Digital Cordless Phone
Operating Instructions
KX-TG2239B
Model No.
Pulse-or-tone dialing capability
Caller ID Compatible
Advertisement
Table of Contents
Related Manuals for Panasonic KX-TG2239B
Summary of Contents for Panasonic KX-TG2239B
- Page 1 PLEASE READ BEFORE USE AND SAVE. Charge the battery for about 15 hours before initial use. Panasonic World Wide Web address: http://www.panasonic.com for customers in the USA or Puerto Rico 2.4GHz Digital Cordless Phone Operating Instructions KX-TG2239B Model No. Pulse-or-tone dialing capability...
- Page 2 Thank you for purchasing your new Panasonic cordless telephone. Please read IMPORTANT SAFETY INSTRUCTIONS on page 65 before use. Read and understand all instructions. Caller ID and Call Waiting Service and Voice Mail Service, where available, are telephone company services. After subscribing to Caller ID, this phone will display a caller’s name and phone number.
-
Page 3: For Best Performance
For Best Performance Battery Charge A rechargeable Ni-Cd battery powers the handset. Charge the battery for about 15 hours before initial use (p. 12). Base Unit Location/Noise Calls are transmitted between the base unit and the handset using wireless radio waves. For maximum distance and noise-free operation, the recommended base unit location is: Away from electrical appliances such as a TV, personal computer or... -
Page 4: Table Of Contents
Contents Preparation Location of Controls ... 6 Display... 8 Settings ...11 Connections ...11 Installing the Battery in the Handset ...12 Battery Charge ...12 Dialing Mode ...14 Line Mode ...15 Programmable Functions ...16 Auto Talk Feature ...17 Ringer Volume ...18 Ringer Tone ...19 LCD Contrast ...20 Basic Operation Making Calls ...21... - Page 5 Intercom ...47 Transferring a Call Using the Intercom ...48 Voice Mail Service ...49 Storing a Voice Mail Access Number ...50 Setting the Voice Mail (VM) Tone Detection...51 Listening to Voice Mail Messages...52 Special Features...53 Automatic Security Code Setting ...53 Temporary Tone Dialing (For Rotary or Pulse Service Users) ...53 Muting Your Conversation ...53 For Call Waiting Service Users ...54...
-
Page 6: Location Of Controls
Location of Controls Base unit VM (Voice Mail) Indicator (p. 49, 51, 52) IN USE Indicator (p. 28) Button (p. 53) (TONE) (HOLD/LOCATOR/INTERCOM) Button (p. 27, 47) Charge Contacts (p. 13) CHARGE Indicator (p. 12) MIC (Microphone) (p. 26) VOLUME (p. - Page 7 Handset Back side Speaker (p. 21) Button (p. 53) (MUTE) Button (FUNCTION) (p. 16, 34, 40, 49) Headset Jack (p. 58) (TALK) Button (p. 21, 28, 32) (Speakerphone) Button (p. 22, 28, 32) Button (p. 53) (TONE) (FLASH/CALL!WAIT/VOICEÒMAIL) Button (p. 52, 54, 55) How to use the Navigator key This key has four active areas that are indicated by arrows.
-
Page 8: Display
Display The handset shows you instructions and information on the display. These display prompts are shown below. V.E. V.E. Recharge V.E. Received calls (Handset on the base unit) V.E. Received calls (Handset off the base unit) 12 new calls =Directory Voice mail V.E. - Page 9 ROBINSON,TINA 1-000-222-3333 Talk V.E. 01-06-35 No link to base Place on cradle and try again. SMITH,JACK 1-222-333-4444 11:20A JAN10 123-456-7890 BROWN,NANCY 1-555-666-7777 ----Waiting---- Please lift up and try again. For assistance, please call: 1-800-211-PANA(7262) When a call is received, the display shows the caller’s name and number after the first ring.
- Page 10 Display While the base unit was in use, Ö Ñ pressed to search the Caller List/directory list, á Base in use was pressed to select an option or was pressed. (HOLD/INTERCOM/CLEAR) When trying to store an item or Caller List information in the directory, the directory Directory full memory is full (p.
-
Page 11: Settings
Hook Raise the antenna. •USE ONLY WITH Panasonic AC ADAPTOR PQLV1 (Order No. PQLV1Z). •The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.) •To connect a standard telephone on the same line, see page 60. -
Page 12: Installing The Battery In The Handset
Settings Installing the Battery in the Handset Insert the battery into the handset as shown, matching the correct polarity (#). Press the battery down until it places into the compartment ($). When finished, close the cover. Battery Charge Place the handset on the base unit and charge for about 15 hours before initial use. -
Page 13: Battery Information
•If you DO NOT recharge the handset battery for more than 15 minutes, the display will continually indicate “Recharge” and/or “ handset is lifted off the base unit. Battery information After your Panasonic battery is fully charged (p. 12): Operation While in use (TALK) While not in use (Standby) •The battery operating time may be shortened depending on usage conditions,... -
Page 14: Dialing Mode
Settings Dialing Mode If you have touch tone service, set to “Tone”. If rotary or pulse service is used, set to “Pulse”. Your phone comes from the factory set to “Tone”. Make sure the unit is not being used and the handset is lifted off the base unit. -
Page 15: Line Mode
Line Mode If the line is connected to a low voltage system such as a PBX, set to “B”. Your phone comes from the factory set to “A”. Make sure the unit is not being used and the handset is lifted off the base unit. -
Page 16: Programmable Functions
Programmable Functions You can program the following function items using the handset near the base unit. The display shows the programming instructions. See the corresponding pages for function details. Make sure the unit is not being used and the handset is lifted off the base unit. -
Page 17: Auto Talk Feature
Auto Talk Feature The Auto Talk feature allows you to answer a call by lifting the handset off the base unit without pressing feature, turn the feature ON by programming. Your phone comes from the factory set to OFF. Make sure the unit is not being used and the handset is lifted off the base unit. -
Page 18: Ringer Volume
Programmable Functions Ringer Volume You can program the handset or base unit ringer volume to HIGH, LOW or OFF. If set to OFF, the handset or base unit will not ring. Your phone comes from the factory set to HIGH. Make sure the unit is not being used and the handset is lifted off the base unit. -
Page 19: Ringer Tone
Ringer Tone You can select the handset or the base unit ringer tone out of 6 patterns. When an incoming call is being received, the unit rings in the selected tone. Your phone comes from the factory set to 1. Make sure the unit is not being used and the handset is lifted off the base unit. -
Page 20: Lcd Contrast
Programmable Functions LCD Contrast You can program the handset LCD contrast (5 levels). To make the handset display clearer, set to high level. Your phone comes from the factory set to level 3. Make sure the unit is not being used and the handset is lifted off the base unit. -
Page 21: Making Calls
Making Calls Handset Back side Speaker Microphone Press Dial a phone number. •The dialed number is displayed. •After a few seconds, the display will show the length of the call and the battery strength. To hang up, press handset on the base unit. •If the handset has lost communication with the base unit, 3 beeps sound and “No link to base Place on cradle and try again.”... - Page 22 Making Calls To have a hands-free phone conversation (Using Digital Duplex Speakerphone) Press Dial a phone number. •The dialed number is displayed. •After a few seconds, the display will show the length of the call and the battery strength. When the other party answers, talk into the microphone.
- Page 23 To dial after confirming the entered number Dial a phone number. •If you misdial, press (HOLD/INTERCOM/CLEAR). One digit is erased. Dial the correct phone number. •To cancel, press (OFF). Press To have a hands-free phone conversation, press , and when the other party answers, talk into the microphone.
- Page 24 Making Calls To put a call on hold Press (HOLD/INTERCOM/CLEAR). •“Line on hold” is displayed. •If you put a call on hold for more than 6 minutes, an alarm tone will sound. The call will be disconnected after a total of 10 minutes. To release the hold From the handset, lift the handset, or press From the base unit, press...
-
Page 25: Voice Enhancer Technology
ON at the factory. Under normal conditions, cordless phones are limited to a narrowed frequency bandwidth (300Hz to 3.5KHz). Panasonic’s new Voice Enhancer Technology cordless phones are able to simulate a band signal above and below the normal bandwidth limitations. -
Page 26: Base Unit (Digital Duplex Speakerphone)
Making Calls Base Unit (Digital Duplex Speakerphone) (HOLD/LOCATOR/INTERCOM) Press (SP-PHONE) •The SP-PHONE indicator lights. Dial a phone number. When the other party answers, talk into the MIC (microphone). To hang up, press •The indicator light goes out. •To switch to the handset while using the base unit speakerphone: —If the handset is off the base unit, press —If on the base unit, just lift up. - Page 27 Hands-free Digital Duplex Speakerphone For best performance, please note the following: •Talk alternately with the caller in a quiet room. •If the other party has difficulty hearing you, press VOLUME the speaker volume. •If the other party’s voice from the speaker cuts in/out during a conversation, press VOLUME to decrease the speaker volume.
-
Page 28: Answering Calls
Answering Calls When a call is received, the unit rings and “Incoming call” is displayed and the IN USE indicator on the base unit flashes. If you subscribe to a Caller ID service, the calling party information will be displayed after the first ring (p. 29). In order to view the Caller ID information, please wait until the second ring to answer a call. -
Page 29: Caller Id Service
Caller ID Service This unit is compatible with a Caller ID service offered by your telephone company. If you subscribe to a Caller ID service, the calling party’s information will be shown on the handset after the first ring. The unit can record information of up to 30 different callers, including the time and date received and the number of times called, in the Caller List. -
Page 30: Using The Caller List
Using the Caller List If you have received new calls, “Received calls” will be displayed while the unit is not in use. Handset on the base unit Received calls Viewing the Caller List To check who has called, follow the steps below. Make sure the unit is not being used and the handset is lifted off the base unit. - Page 31 Ex. When you search from the most recent call: Press to enter the Caller List. Ö or Ñ 2 new calls =Directory Press Ö SMITH,JACK 1-222-333-4444 3:10P JUN10 Press Ö BROWN,NANCY 222-3333 1:54P JUN 9 Press Ö TURNER,CINDY 1-234-456-7890 10:38A JUN 9 √ Press Ö...
-
Page 32: Calling Back From The Caller List
Using the Caller List Calling Back from the Caller List Press Ö Ñ Scroll to the desired caller by pressing Ñ Press •The displayed phone number is dialed automatically. •In some cases, you may have to edit the number before dialing (p. 33). (Ex. -
Page 33: Editing The Caller's Phone Number
– Area code •The order in which patterns a–c are displayed depends on how the telephone number is displayed in step 3. After editing the number, you can continue with calling back or storing procedures. To call back, press To store the number in the directory, press instructions on the display (p. -
Page 34: The Caller Id Number Auto Edit Feature
•To exit the programming mode, press (OFF). •When the feature is set to OFF, the unit will still be able to display Caller ID, like regular Caller ID telephone, but the in-coming Caller ID number will not be edited by pattern and by area codes. -
Page 35: Storing Caller List Information In The Directory
Storing Caller List Information in the Directory You can store phone numbers that are in the Caller List into the directory. Make sure the unit is not being used and the handset is lifted off the base unit. Press to enter the Caller List. Ö... -
Page 36: Erasing Caller List Information
Using the Caller List Erasing Caller List Information After checking the Caller List, you can erase some or all of the entries. Make sure the unit is not being used and the handset is lifted off the base unit. To erase a specific caller from the Caller List Press Ö... -
Page 37: Speed Dialer
Speed Dialer Storing Phone Numbers You can store up to 10 phone numbers in the base unit. The dialing buttons ( ) function as memory stations. Make sure the unit is not being used. Press (AUTO/PROGRAM) •The IN USE indicator flashes. Enter a phone number up to 22 digits. -
Page 38: Dialing A Stored Number
Speed Dialer Dialing a Stored Number Press (SP-PHONE). •The SP-PHONE indicator lights. Press (AUTO/PROGRAM). Press a memory station number ( •The stored number is dialed. •Numbers stored in the base unit can only be dialed from the base unit. -
Page 39: Directory
Directory You can store up to 50 names and phone numbers in the directory using the handset. All directory items are sorted by the first word in alphabetical order. Using the directory, you can make a call by selecting a name on the handset display. - Page 40 Directory Press (FUNCTION) Press at “Save directory”. á •The display shows the number of stored items in the directory. Enter a name, up to 15 characters with the dialing buttons, •See the steps for entering names and symbols (p. 41). •If a name is not required, press Ö...
-
Page 41: Entering Names And Symbols
Entering Names and Symbols The handset dialing buttons ( can be used to enter letters and symbols. á The letters are printed on the dialing buttons. Pressing each button selects a character as shown below. Keys & Blank To move the cursor to the left Ü... - Page 42 Directory For example, to enter “Tom Jones”: Press (FUNCTION) Press at “Save directory”. á Press four times. Press three times, then press move the cursor to the right. Press Press twice to enter a blank. á Press four times. Press three times, then press move the cursor to the right.
-
Page 43: Finding Stored Items
•If “No items stored” is displayed in step 2, the directory list is empty. For assistance, please call: 1-800-211-PANA(7262) (OFF) Press Ö. Press Ñ. Alphabet letter Symbol (excluding # and ) Number # and Telephone number (If no name is stored) -
Page 44: Dialing
Directory Index table Keys Other symbols, 1 A, B, C, 2 D, E, F, 3 G, H, I, 4 J, K, L, 5 Dialing Make sure the unit is not being used and the handset is lifted off the base unit. Press Ü... -
Page 45: Editing
Editing Make sure the unit is not being used and the handset is lifted off the base unit. Press to enter the directory list. Ü á Press Ö Ñ •The first item is displayed. Scroll to the directory item you want to change by pressing á... -
Page 46: Erasing
Directory Erasing Make sure the unit is not being used and the handset is lifted off the base unit. Press Ü á Press Ö Ñ •The first item is displayed. Scroll to the directory item that you want to erase by pressing •To search for the item by initial, see page 43. -
Page 47: Intercom
Intercom A 2-way intercom is possible between the handset and the base unit. Paging the base unit from the handset Handset: Press (HOLD/INTERCOM/CLEAR) Talk to the paged party after the beeps. •“Intercom” is displayed. Base unit: When the other party’s voice is heard, answer using the MIC. -
Page 48: Transferring A Call Using The Intercom
Intercom During an intercom call: •If the handset user has difficulty hearing the base unit user, decrease the base unit speaker volume by pressing VOLUME •If an incoming call is received, the intercom call stops and the unit starts to ring. -
Page 49: Voice Mail Service
After the voice mail box has received messages, the unit will indicate it in two ways: (a) “Voice mail”... -
Page 50: Storing A Voice Mail Access Number
6. Your voice mail box access number Pressing (REDIAL/PAUSE) once creates a 3.5 seconds delay and counts as one digit. The delay time depends on a telephone company. Ö (see below). and return to step 6. -
Page 51: Setting The Voice Mail (Vm) Tone Detection
Set this programming to “Off” when: —you do not subscribe to a voice mail service, —your telephone company does not send a series of tones, followed by a continuous tone, or —your phone is connected to a business or office telephone system (PBX). -
Page 52: Listening To Voice Mail Messages
flash. To listen to your voice mail message(s), follow the steps below. Handset Press (FLASH/CALL!WAIT/VOICE!MAIL) •The unit is connected to the telephone line and dials the access number (p. 50). Follow the pre-recorded instructions. When finished, press Base unit Press (VM) •The unit is connected to the telephone line and dials the access number (p. -
Page 53: Special Features
Each time you place the handset on the base unit, the unit automatically selects one of more than a million security codes. These codes help prevent the unauthorized use of your telephone line by another cordless telephone user. Temporary Tone Dialing... -
Page 54: For Call Waiting Service Users
•The call waiting service cannot be used when: —the first call is placed on hold, or —a parallel connected telephone is in use. •If this function does not operate properly, consult your telephone company for details. Call Waiting Caller ID Feature Call Waiting Caller ID Feature allows your handset to display the second caller’s... -
Page 55: Flash Button
—muting your conversation. Selecting the flash time The flash time depends on your telephone exchange or host PBX. You can select the following flash times: “700, 600, 400, 300, 250, 110, 100 or 90 ms (milliseconds)”. Your phone comes from the factory set to “700 ms”. -
Page 56: Wall Mounting
Push the hook and turn it around. Turn the hook until a click is heard. Connect the AC adaptor. Tuck the telephone line cord inside the wall mounting adaptor, then push it in the direction of the arrow. •The word “UP” should face upward. - Page 57 Connect the telephone line cord. Mount the unit, then slide down. •Raise the antenna. •Fasten the telephone line cord to prevent it from being disconnected. To charge the handset battery: Fix the charge contacts (#) and insert the hook to the handset hole ($).
-
Page 58: Belt Clip
Optional Headset Plugging an optional headset into the handset allows a hands-free phone conversation. Please use only a Panasonic KX-TCA88 or KX-TCA90 headset. To order, call the accessories telephone number on page 2. Connecting an optional headset to the handset Open the headset jack cover, and connect an optional headset to the headset jack as shown below. -
Page 59: Battery Replacement
Battery Replacement If “Recharge” is displayed and/or “ calls even if the battery was fully charged, replace the battery with a new Panasonic N4HKGMA00001 (P-P511) battery. To order, call the accessories telephone number on page 2. Press the notch on the handset cover firmly and... -
Page 60: Adding Another Phone
Adding Another Phone This unit will not function during a power failure. To connect a standard telephone on the same line, use the Panasonic T-adaptor KX-J66. To order, call the accessories telephone number on page 2. Standard Telephone Single-Line Telephone Jack... -
Page 61: Troubleshooting
Troubleshooting Problem The unit does not work. “No link to base Place on cradle and try again.” is displayed and an alarm tone sounds. Static, sound cuts in/out, fades. Interference from other electrical units. The handset and/or the base unit does not ring. The handset display is blank. - Page 62 •Other telephone equipment may be interfering with your phone. Disconnect it and try again. •Other electrical appliances connected to the same outlet may be interfering with the Caller ID information. •Telephone line noise may be affecting the Caller ID information. and try again.
-
Page 63: Button (P
Problem The handset display exits the Caller List. When a second call is received during a conversation, the unit does not display the new caller’s name and/or phone number. You cannot page the handset. You cannot redial by pressing (REDIAL/PAUSE) “Recharge”... - Page 64 If “SP-phone” is displayed on the handset, press conversation with the headset. •Call our customer call center at 1-800-211-PANA(7262). •Panasonic’s e-mail address for customer inquiries: consumerproducts@panasonic.com for customers in the USA or Puerto Rico ONLY to continue the...
-
Page 65: Important Safety Instructions
Important Safety Instructions When using this unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, or personal injury. 11. Read and understand all instructions. 12. Follow all warnings and instructions marked on this unit. 13. - Page 66 Important Safety Instructions CAUTION: To reduce the risk of fire or injury to persons, read and follow these instructions. 1. Use only the battery(ies) specified. 2. Do not dispose of the battery(ies) in a fire. They may explode. Check with local waste management codes for special disposal instructions. 3.
-
Page 67: Fcc And Other Information
The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). - Page 68 TVs and VCRs. To minimize or prevent such interference, the base of the cordless telephone should not be placed near or on top of a TV or VCR. If interference is experienced, move the cordless telephone further away from the TV or VCR.
- Page 69 AC adaptor from the outlet. • If there is any trouble — disconnect the unit from the telephone line and connect a known working phone. If the known working phone operates properly, have your unit repaired by a Factory Servicenter or other Authorized Servicer. If the known working phone does not operate properly, consult your telephone company.
-
Page 70: Specification
Specifications I Base unit Power Supply: Power Consumption: Frequency: Dimensions (H x W x D): Approx. 84 mm x 180 mm x 215 mm Mass (Weight): I Handset Power Supply: Frequency: Dimensions (H x W x D): Approx. 245 mm x 55 mm x 45 mm Mass (Weight): Security Codes: I Dialing Mode:... -
Page 71: Index
Hold alarm ... 24, 27 Installation, AC adaptor ... 11 Installation, Adding Another Phone ... 60 Installation, Battery ...12 Installation, Telephone Line Cord... 11 Intercom call ... 47 Intercom paging ... 47 For assistance, please call: 1-800-211-PANA(7262) LCD contrast... 20 Lighted handset keypad ...25... - Page 72 Symptom •Send the unit to an authorized servicenter, prepaid and adequately insured. •Do not send your unit to the Panasonic Consumer Electronics Company listed below or to executive or regional sales offices. These locations do not repair consumer products. If you need assistance with the set-up or operation,...
