WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power
from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and
others by observing all safety information. Failure to comply could result in personal injury and/or property damage.
MODULE-AIR AF-36XX SERIES AIR CLEANER
(AF-3623, AF-3643, AF-3653)
Description
This 14,000 CFM Air Cleaner was designed for use as ambient air filtration
where airborne particles are prevalent. The air cleaner consists of 6 intakes
and one exhaust, one motor, one blower, electrical components and a
riveted sheet metal housing.
These units are 740-750 pounds, and cannot be handled or
transported without the help of lifting tools.
It is recommended that you consult a professional electrician prior to
installing this product. If this Air Cleaner is to be used in an application that
presents a potential fire hazard, a fire protection expert should be
consulted.
Unpacking
The machine should be unpacked carefully. Check if the machine and
components are consistent with those indicated in the Parts List. If any
doubt arises or if parts appear to be missing, contact your dealer.
MODEL
NUMBER
208-230V THREE PHASE 10 HP 60/50
AF-36XX230
480V THREE PHASE
AF-36XX480
575V THREE PHASE
AF-36XX575
MODEL
TYPE:
NUMBER
(ALL)
FORWARD INCLINE
SOUND LEVEL: 68 Db(A)
APPROXIMATE WIEGHT
AF-3623
Operating Instructions & Parts Manual
READ AND SAVE THESE INSTRUCTIONS
Retain instructions for future reference.
MOTOR OPTIONS:
VOLTAGE
HP
10 HP 60/50
10 HP
BLOWER:
CFM:
8500
740-800 LBS
Hz
AMP DRAW
27-25
12.5
60
11.2

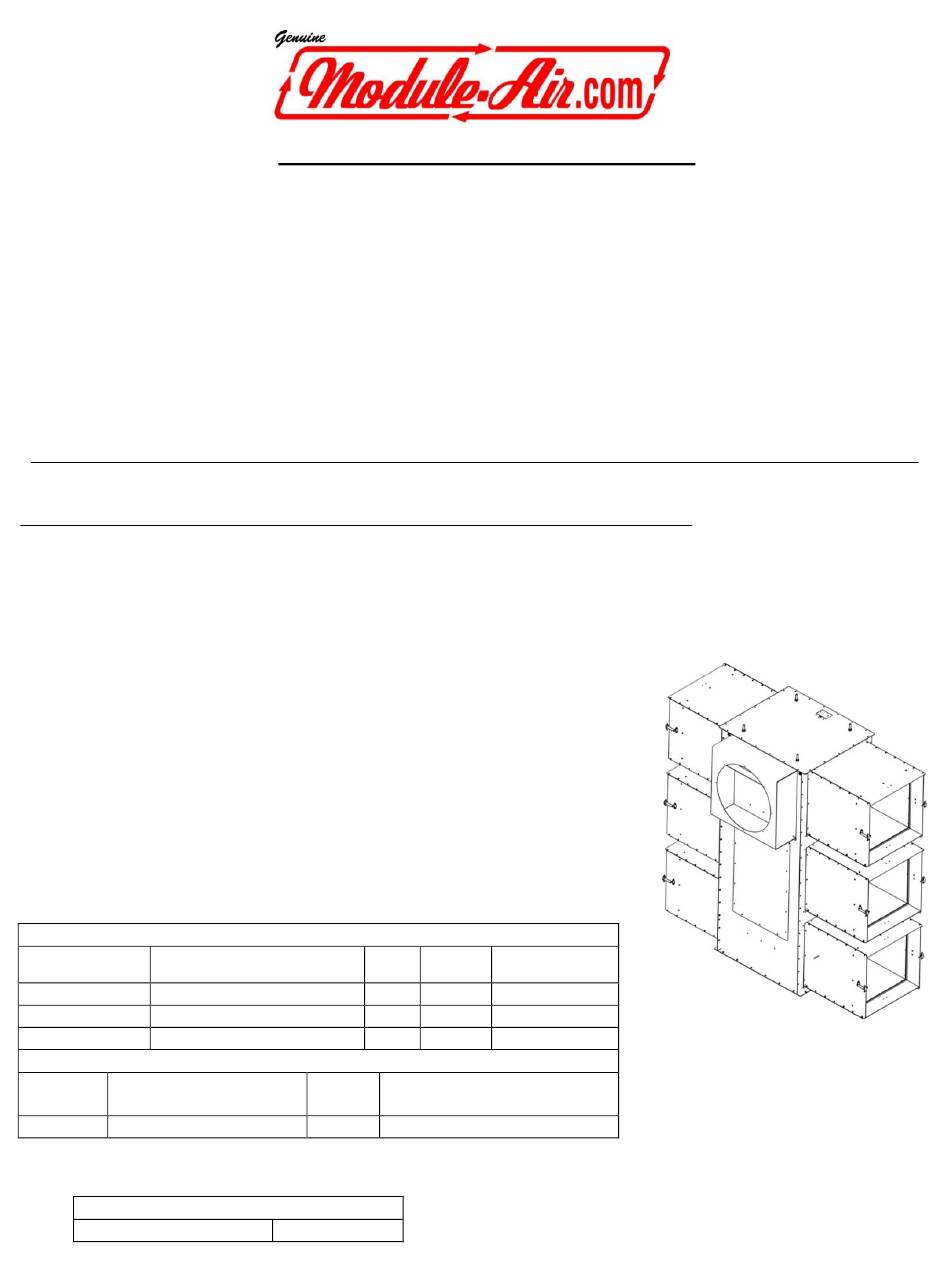

Seen above: AF-3623 with Transition
Advertisement
Table of Contents
Related Manuals for MODULE-AIR AF-36 Series
Summary of Contents for MODULE-AIR AF-36 Series
- Page 1 Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply could result in personal injury and/or property damage. Retain instructions for future reference. MODULE-AIR AF-36XX SERIES AIR CLEANER (AF-3623, AF-3643, AF-3653) Description This 14,000 CFM Air Cleaner was designed for use as ambient air filtration where airborne particles are prevalent.
- Page 2 2. Follow step (1) to remove the prefilter, then if unit is equipped with clips, push them out and away from the bag filter, slide out the old bag filter and slide in new one until clips snap around it. Revised 07-25-2018 Module-Air...
- Page 3 DO NOT use (like aluminum, magnesium and a system. Module-Air can offer the machine until you have first other materials). NFPA also has basic guidelines for such an contacted Tanis Technologies and...
- Page 4 The unit can now be lowered and changing filters. recommendations are included for the nuts under the strut can be installation of your Module-Air air tightened up to finish the 13. Turn the unit “off” and filtration system, the suspension.
- Page 5 Revised 07-25-2018 Module-Air...
- Page 6 Three phase motor 480 V Three Phase/ 60Hz 3 phase power Revised 07-25-2018 Module-Air...
- Page 7 Revised 07-25-2018 Module-Air...
- Page 8 NOTE: In order to maintain the one year warranty on MODULE-AIR products replacement filters must be purchased from MODULE-AIR for that first year. Proof of filter orders must be kept on file and be readily available upon request by MODULE-AIR.
