WARNING – TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
A) Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
B) Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power
from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warn-
ing device, such as a tag, to the service panel.
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and
others by observing all safety information. Failure to comply could result in personal injury and/or property damage.
AF-10X3VT SERIES AIR CLEANER
Description
This 5,000 CFM Air Cleaner was designed for use as ambient air
filtration where airborne particles are prevalent. The air cleaner
consists of two intakes and one exhaust, one motor, one blower,
electrical components and a riveted sheet metal housing.
These units weigh between ~225 - 345 lbs, and cannot be handled or
transported without the help of lifting tools.
It is recommended that you consult a professional electrician prior to
installing this product. If this Air Cleaner is to be used in an
application that presents a potential fire hazard, a fire protection expert
should be consulted.
Unpacking
The machine should be unpacked carefully. Check if the machine and
components are consistent with those indicated in the Parts List. If
any doubt arises or if parts appear to be missing, contact your dealer.
MODEL NUM-
VOLTAGE
BER
230V THREE PHASE
AF-10X3VT230
480V THREE PHASE
AF-10X3VT480
575V THREE PHASE
AF-10X3VT575
MODEL NUMBER
(ALL)
SOUND LEVEL: 63 Db(A)
APPROXIMATE WEIGHT
AF-1023VT
AF-1033VT
AF-1043VT
Tanis Technologies 10VT Series Filtration Unit
Operating Instructions & Parts Manual
READ AND SAVE THESE INSTRUCTIONS
Retain instructions for future reference.
MOTOR
HP
3 HP
3 HP
3 HP
FORWARD INCLINE
225 lbs.
245 lbs.
345 lbs.
Hz
AMP DRAW
60
60
60
3.3
CFM:
5000
Revised 6.30.2020

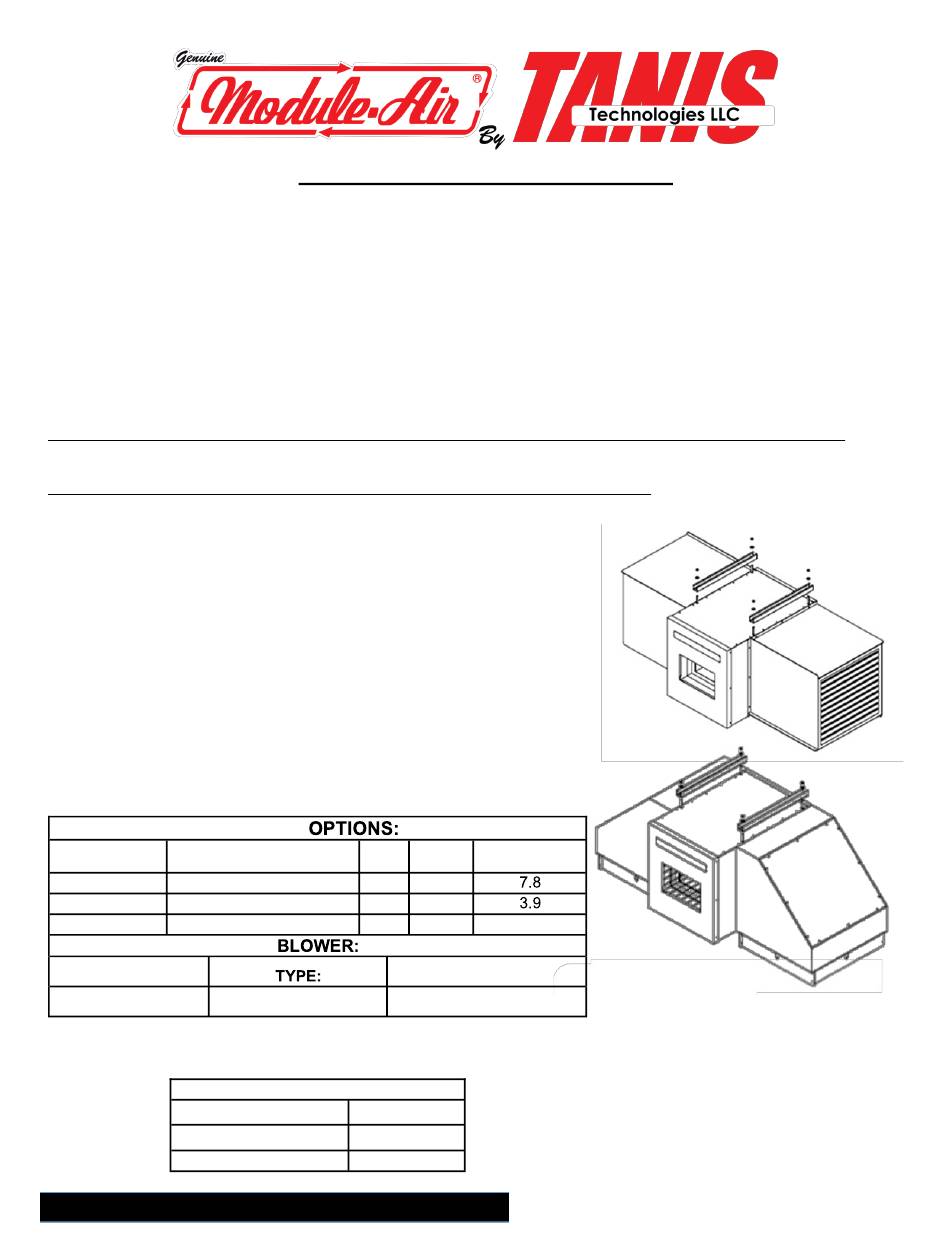

Seen above: AF-1023VT & AF-1033VT
1
Advertisement
Table of Contents
Related Manuals for MODULE-AIR AF-10X3VT Series
Summary of Contents for MODULE-AIR AF-10X3VT Series
- Page 1 Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply could result in personal injury and/or property damage. Retain instructions for future reference. AF-10X3VT SERIES AIR CLEANER Description This 5,000 CFM Air Cleaner was designed for use as ambient air filtration where airborne particles are prevalent.
- Page 2 Operation Once installed using the above instructions, your AF-10XXVT air cleaner(s) can be operated with the flip of a switch. Because the AF-10XXVT series is designed as an “Air quality Maintenance” system, it is important that the units are turned on in the beginning of the shift and left on until the end of the shift. The reason the units need to remain on is because Air Cleaners train the air current throughout the entire area in order to ensure that all of the air is cycling through the filters.
- Page 3 according to all electrical and safety dust generated from the grinding of General Safety information codes as well as the National Electrical ferrous materials. This creates a SAFETY GUIDELINES- DEFINITIONS Code (NEC) National Fire Protection potential for fires due to the mixing of Association (NFPA) and the sparks and combustible materials.
- Page 4 the unit is disconnected from power INSTALLATION AND PREPARATION top of the unit. Start a ½” nut on the source threaded rod to be used as a jam nut. BEFORE OPERATING: Disclaimer: 12. Maintain the unit in top condition. Now screw the threaded rod into the Clogged filters can increase potential connector nuts and tighten up the jam Although instructions and...
- Page 5 Simple Installation Guide For a more detailed description, see page 4. USE CONNECTOR NUTS ON THE 4 STUDS PROVIDED AT THE TOP OF THE UNIT AS SHOWN. CONNECT NUTS TO THREADED ROD TO SUSPEND THE UNIT WITH SUPPORTING UNISTRUT. SEE WRITTEN INSTRUCTIONS ON PAGE 4 FOR FURTHER EXPLANATION.
- Page 6 Revised 6.30.2020 Tanis Technologies 10VT Series Filtration Unit...
- Page 7 Revised 6.30.2020 Tanis Technologies 10VT Series Filtration Unit...
- Page 8 Limited One (1) Year Parts Warranty Tanis Technologies warranties all ambient filtration products to be free from defects in materials or workmanship. This warranty is valid for the original purchaser and for a period of one (1) year from the date of shipment or installation sign off.
